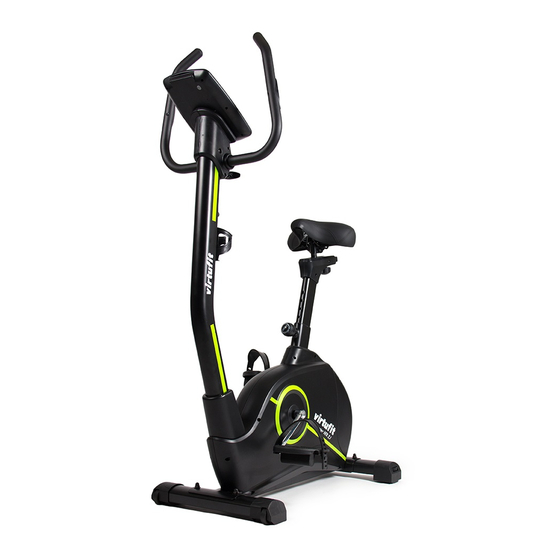

iConsole HTR 2.1 Hometrainer
User manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iConsole HTR 2.1 Hometrainer and is the answer not in the manual?

Questions and answers

Related Manuals for VIRTUFIT iConsole HTR 2.1 Hometrainer

Summary of Contents for VIRTUFIT iConsole HTR 2.1 Hometrainer

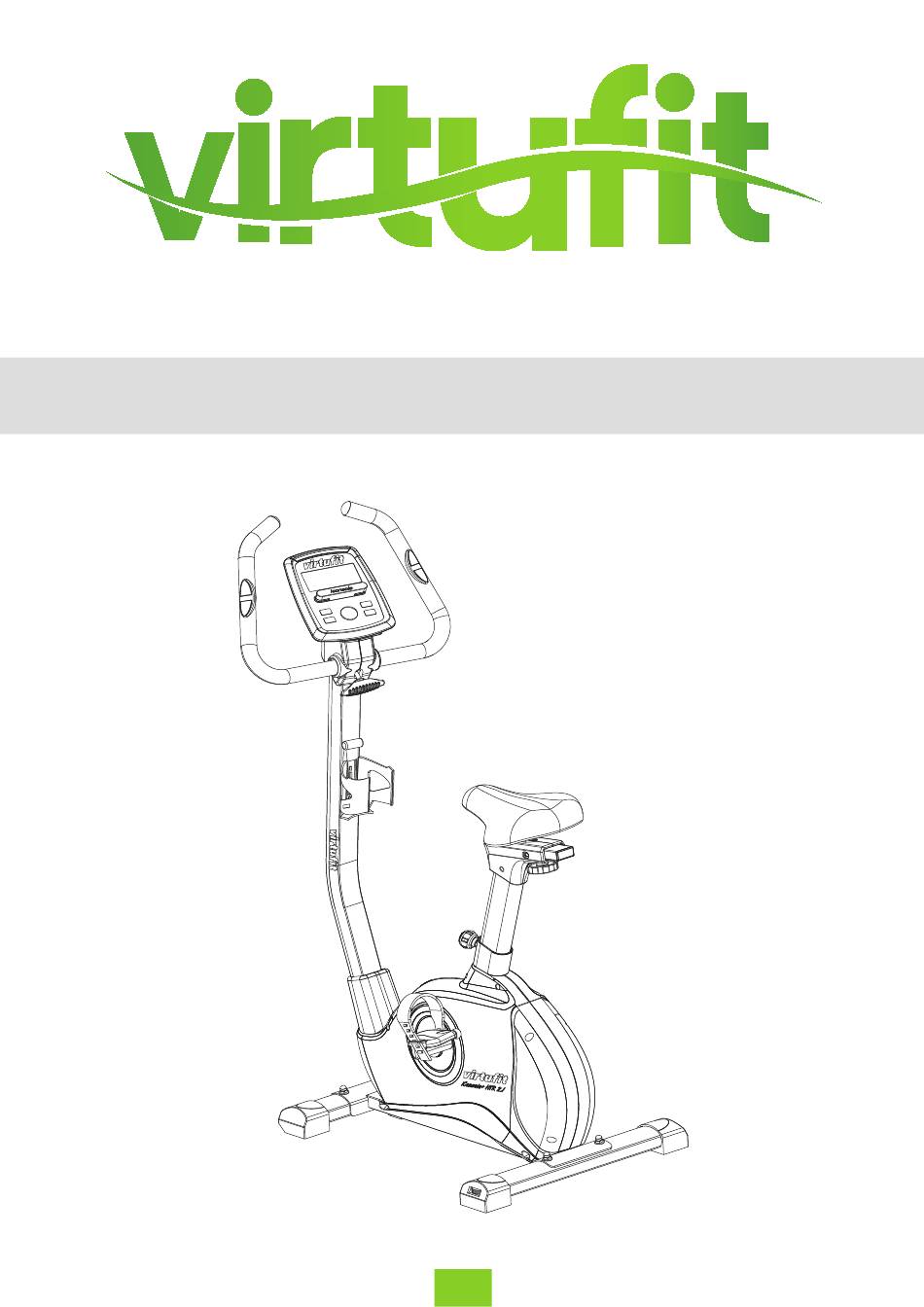

  • Page 1 HTR 2.1 Hometrainer User manual...
  • Page 2 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MAINTENANCE MAINTENANCE TROUBLE SHOOTING TROUBLE SHOOTING 17 - 23 CONTROL PANEL CONTROL PANEL APP INSTRUCTIONS APP INSTRUCTIONS EXPLODED DRAWING EXPLODED DRAWING 26 - 27 PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 3: Safety Instructions

    – Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 5 CHECKLIST TOOLKIT When you open the carton, and you will find the below parts in the carton. MAIN FRAME HANDLEBAR HANDLEBAR POST CONSOLE FRONT STABILIZER REAR STABILIZER SADDLE SEAT POST PEDAL (L+R) PLASTIC COVER ADAPTER VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 6 CHECKLIST TOOLKIT NO 61*4 NO 63*4 NO 64*4 NO 14*1 NO 15*1 NO 11*1 NO 13*1 NO 93*1 NO 95 NO 12*1 NO 10 NO 94 NO 14*1 VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 7 Attach the rear stabilizer (60) to the frame (56) with 2 × M8 screws (61), curved washer (63) and cap nut (64). Tighten the nuts properly. NOTE: You can adjust the Rear End Cap to keep the hometrainer stable. VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 8 Tension Cable (87) and Lower Tension Cable (27). • Attach the handlebar (90) to the frame (56) with 4 × M8 × 20mm anti-loose bolts (85), 2 × M8 elbow washers (86) and 2 × M8 flat washers (63). VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 9 In addition, make sure that the saddle bar is not extended beyond its maximum position. This one maximum position is marked. NOTE: When the saddle bar is at the desired height, tighten the knob securely. VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 10 Attach the pedals (38L + R) to the crank (35L + R). NOTE: Take a good look at the course of the screw thread. Screw it on well and not askew. In addition, also tighten the pedal. VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 11 Mount the handlebar (4) on the handlebar (90) with the spring washer (93), tubular spacer (13), plastic cap (12) and knob (15). • Install the spring washer (14) and round hexagon screw (12). • Pass the sensor cable over the console and fix everything properly and completely. VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 12 Connect the computer cable (87) and the computer (1). Place the computer (1) on the handlebar and fix it with the previously removed screws (9).. • Plug the hand sensor cable (7) into the connector on the back of the computer (1). VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 13 TITEL HOOFDSTUK STEP 7 • Attach the console caps (8L + R) to the handlebar (90) with screws (67) and self-tapping screws (10). • Attach the bottle cage (92) to the handlebar (90) using screws (91). VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 14 • The adapter connection is located on the back of the device (see image). • Attach the adapter to the adapter connector and connect to AC power. • You can now use the exercise bike. VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 15: Daily Maintenance

    SEMI-ANNUAL MAINTENANCE • Inspect all bolts and nuts in connection with moving parts of the device, tighten as required. • Check the mobility of moving parts and components of the use equipment, silicone spray if necessary. VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 16: Troubleshooting

    • The sensors may become damp, dirty or greasy. So you have to clean them regularly. The console is not working If there is no signal when pedaling, check if the cable is properly attached. VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 17: Control Panel

    • Computer restarts after pressing and holding for 2 seconds. RESET • Return to main menu, restore the value or stop mode. Start or stop the training. START / STOP • Increase or decrease the value. ENCODER • Confirm the value selection VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 18 Functions change automatically every 6 seconds. PROGRAM Choice of 12 programs. USER Manual selection. User determines his own resistance program. H.R.C. Heart Rate Control. Heart rate based program. RECOVERY Heart rate recovery status. BODY FAT Body fat measurement. VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 19: Operation

    Which that flashes you can increase / decrease by turning the knob. Press the button to confirm. Press start to start the program. 8. With the manual program you can set different values, with the pre-programmed programs only time. VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 20: Manual Mode

    3. Press the round button to confirm the program. With another push of a button you can difficulty setting by turning afterwards. The time flashes after the button is pressed. You can now set the time by turning the knob. Select the desired time and press “START” to start the program. VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 21: Heart Rate Mode

    HEART symbol. Press the round button. Turn the knob to select. Press on the button to choose. After that time can be set by turning and pressing and the button. Pressure then press START to start. VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 22: Watt Mode

    2. After selecting, you can place your hands on the heart rate sensors on the handlebars. 3. After a few seconds, an approximation of your BMI (B) and your body fat percentage (F) will appear. VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 23: Recovery Mode

    2. Time and heart rate are displayed. The time counts down from 60 seconds and the current heart rate becomes shown. You do not have to cycle. 3. The faster your heart rate drops, the better your fitness. NOTE: This is an estimate. The results should not be used for medical purposes. VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 24: App Instructions

    ICONSOLE+ APP STORE GOOGLE PLAY USER MANUAL ICONSOLE+ ICONSOLE+ ICONSOLE+ KINOMAP APP STORE GOOGLE PLAY USER MANUAL KINOMAP KINOMAP KINOMAP VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 25: Exploded Drawing

    EXPLODED DRAWING TITEL HOOFDSTUK VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 26: Parts List

    25  Ellipse bushing  1  53  Flat Washer  1  26  Knob  1  54  Plastic Washer  1  27  Upper computer cable  1  55  Flywheel Frame  1  28  Sensor  1  56  Frame  1  29  Flat washer  1  57  Wheels  1  VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 27 79  Main post plastic cover  1  80  Belt  81  Anti-loose Allen Screw  3  82  φ 240 belt wheel  1  83  Pedal Axle  1  84  Washer  2  85  Screw  4  86  Flat Washer  4  87  Upper sensor cable  1  VirtuFit iConsole HTR 2.1 Hometrainer...

  • Page 28: Training Instructions

    The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit iConsole HTR 2.1 Hometrainer...
  • Page 29 For questions or missing parts please contact your dealer.
