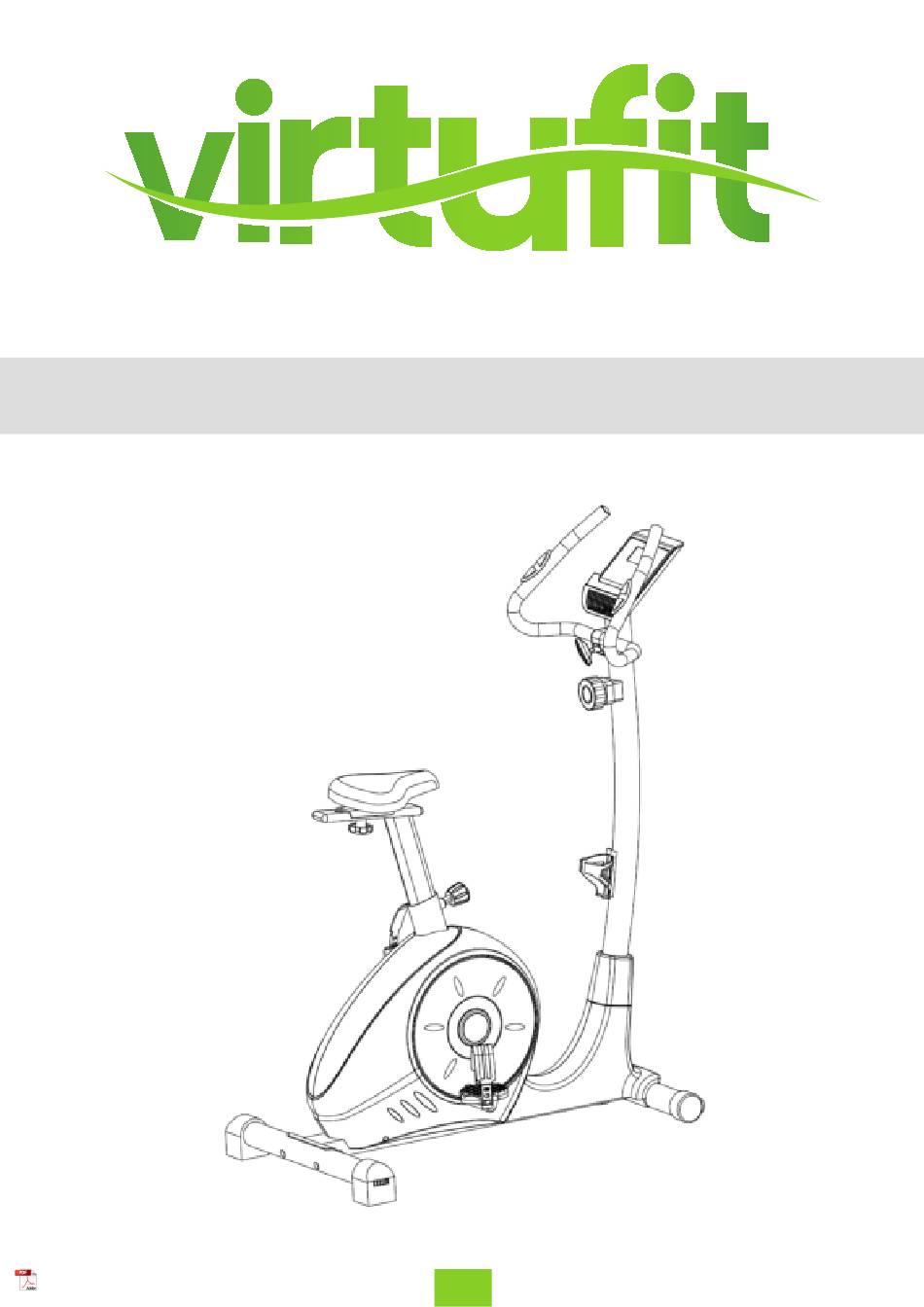

- Page 1 Low Entry Bike 1.0 Hometrainer User manual Please read all instructions carefully before using this product. Retain this manual for future reference. The specifications of this product may vary slightly from the illustrations and are...
-
Page 2: Table Of Contents
TRAIN ON HEART RATE TRAIN ON HEART RATE MAINTENANCE MAINTENANCE 14 - 15 TROUBLE SHOOTING TROUBLE SHOOTING CONTROL PANEL CONTROL PANEL 17 - 18 EXPLODED DRAWING EXPLODED DRAWING PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit Low Entry Bike 1.0 Hometrainer... -
Page 3: Safety Instructions
– Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit Low Entry Bike 1.0 Hometrainer... - Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit Low Entry Bike 1.0 Hometrainer...
-
Page 5: Assembly Instructions
Attach the front stabilizer (2) to the main frame (1) with the Inner hexagon bolt (17) and Arc washers (16). • Fix the rear stabilizer (3) to the main frame (1) with the Carriage bolt (13), Arc washers (14) and Acorn nut (15) as shown. VirtuFit Low Entry Bike 1.0 Hometrainer... - Page 6 Always make sure the pedals are securely tightened before any exercise. NOTE: Both pedals are labeled L for left and R for right. To tighten the Left pedal in counter clock wise direction and the Right pedal in the clock wise direction. VirtuFit Low Entry Bike 1.0 Hometrainer...
- Page 7 Insert the seat post (6) into the main frame (1), secured with the Spring Knob (34) at a proper height as shown. NOTE: Please make sure the seat (7) was tightly secured on the Horizontal Seat Post (39) before any exercise. VirtuFit Low Entry Bike 1.0 Hometrainer...
- Page 8 • Fix the handlebar post (4) on the main frame (1), using the Inner hexagon bolt (19), Arc washer (16) as shown. • Slip down the Front Cover (22) and fit in the place. VirtuFit Low Entry Bike 1.0 Hometrainer...
- Page 9 Feed the Hand pulse wire (27) out of the handlebar post (4) through the computer bracket on the top. • Attach the handlebar (5) to the handlebar post (4) with bolt (29), Handlebar cover (30), Bushing (31) and Flat washer (28) as shown. VirtuFit Low Entry Bike 1.0 Hometrainer...
- Page 10 (4), secured it with the Cross pan head screw (41) as shown. • Then fasten the bottle bracket (46) to the handlebar post (4) with screw (45). VirtuFit Low Entry Bike 1.0 Hometrainer...
-
Page 11: Adjustments Guide
ADJUSTING THE HANDLEBAR Unlock the knob (91), then adjust the angle of the handlebar (3) to a suitable position. VirtuFit Low Entry Bike 1.0 Hometrainer... - Page 12 To move the exercise bike, push the handlebars (3) down until the transport wheels (19) on the front stabilizer touch the ground. With the transport wheels on the ground you can easily transport the exercise bike to the desired place. VirtuFit Low Entry Bike 1.0 Hometrainer...
-
Page 13: Train On Heart Rate
HAND PULSE SENSORS Hand pulse sensors This VirtuFit fitness equipment is provided with hand pulse sensors for measuring the heart rate. The hand pulse sensors are located on the handlebars. The hand pulse sensors are only working if they are touched both at the same time for a couple of seconds. -
Page 14: Maintenance
Use a dry cloth to clean the control panel and areas around the power switch. Use a soft, clean cloth and detergent to remove stubborn stains and dirt from the hometrainer. For more information: https://virtufit.nl/service/faq/ VirtuFit Low Entry Bike 1.0 Hometrainer... - Page 15 1. If you see an improper display on the monitor, please replace the batteries to have a good result. 2. Please use 2pcs of 1.5v AAA batteries as a power supply. (See step 5). VirtuFit Low Entry Bike 1.0 Hometrainer...
-
Page 16: Trouble Shooting
The sensors may become damp, dirty or greasy. So you have to clean them regularly. The console is not working If there is no signal when pedaling, check if the cable is properly attached. VirtuFit Low Entry Bike 1.0 Hometrainer... -
Page 17: Control Panel
With this key you can select and lock a particular function you want. Adjust the values for “TIME” “DISTANCE” “CALORIES””PULSE”. CLEAR (RESET) Clear settings. ON/OFF The key to pause, start or stop the signal input. (START/STOP) VirtuFit Low Entry Bike 1.0 Hometrainer... - Page 18 30 seconds for the most accurate reading. SCAN Auto display changes every 4 seconds. The system will turn off automatically when the speed has no signal input or no key is pressed for about 4 minutes. VirtuFit Low Entry Bike 1.0 Hometrainer...
-
Page 19: Exploded Drawing
EXPLODED DRAWING VirtuFit Low Entry Bike 1.0 Hometrainer... -
Page 20: Parts List
Lower tension control cable Sensor wire Front Cover 23 Sensor connecting wire 1 24 Cross pan head screw 1 25 Arc washer 26 Tension controller Hand pulse wire Flat washer Bolt Handlebar cover Bushing VirtuFit Low Entry Bike 1.0 Hometrainer... -
Page 21: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit Low Entry Bike 1.0 Hometrainer... - Page 22 For questions or missing parts please contact your dealer.
