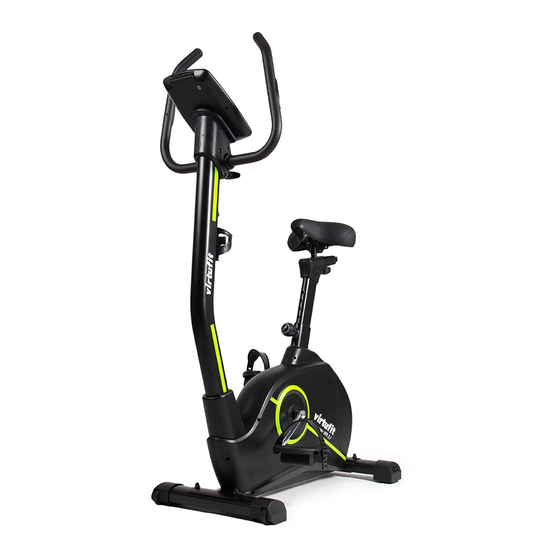

VIRTUFIT iConsole HTR 2.1 Hometrainer User Manual
  1. Manuals
  2. Brands
  3. VIRTUFIT Manuals
  4. Fitness Equipment
  5. iConsole HTR 2.1
  6. User manual

VIRTUFIT iConsole HTR 2.1 Hometrainer User Manual

Hide thumbs Also See for iConsole HTR 2.1 Hometrainer:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
iConsole HTR 2.1 Hometrainer
User manual
ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iConsole HTR 2.1 Hometrainer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VIRTUFIT iConsole HTR 2.1 Hometrainer

Summary of Contents for VIRTUFIT iConsole HTR 2.1 Hometrainer

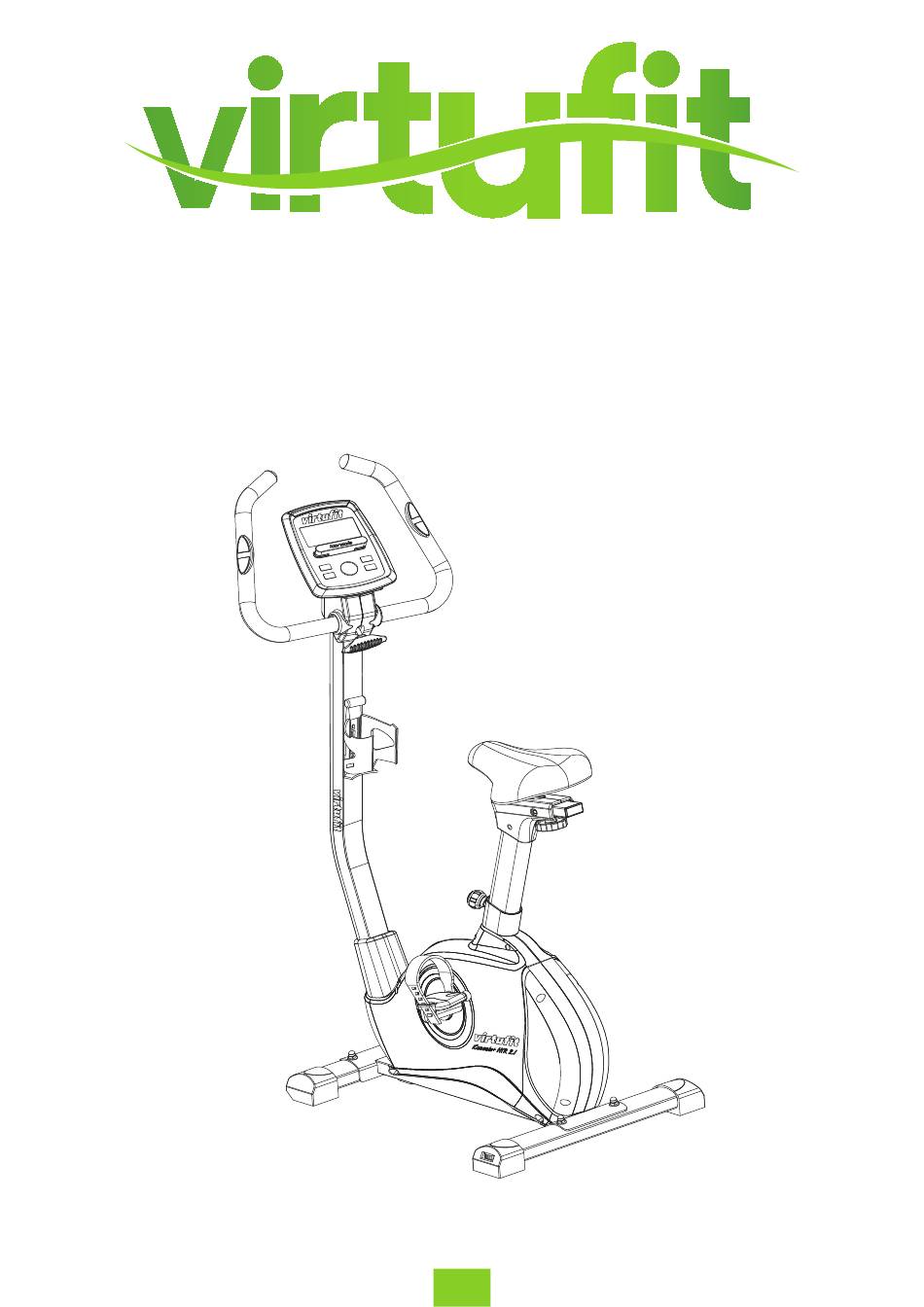

  • Page 1 HTR 2.1 Hometrainer User manual...

  • Page 2: Table Of Contents

    CONTENTS Safety Instruction Check List Assembly Instruction 6-12 Exploded Drawing Parts List 14-16 Computer Instruction 17-23 iConsole+ App Training Instruction Hometrainer iConsole HTR 2.1...

  • Page 3: Safety Instruction

    SAFETY INSTRUCTION Before you start training on your hometrainer, please read the instructions carefully. Be sure to keep the instructions for information, in case of repair and for spare part delivery. This hometrainer is made for home use only and tested up to a maximum body weight of 150 kg. Follow the steps of the assembly instructions carefully.

  • Page 4: Check List

    CHECK LIST (contents of packaging) CHECK LIST (contents of packaging) Computer Main frame Handlebar Handlebar Post Front Stabilizer Plastic cover Pedal (Left) Pedal (Right) Rear stabilizer Saddle Seat post Adapter Hometrainer iConsole HTR 2.1...

  • Page 5: Check List

    CHECK LIST (contents of packaging) IS-810 TOOL KIT NO 10 NO 61*4 NO 63x4 NO 64*4 NO 94 NO 95 NO 11*1 NO 14x1 NO 15x1 NO 12*1 NO 13*1 NO 93*1 NO 14*1 Hometrainer iConsole HTR 2.1...
  • Page 6 ASSEMBLY INSTRUCTION UITLEG BIJ MONTAGE STAP 1 STEP 1 I. Attach the Front Stabilizer (89) onto the Main Frame (56) with 2×M8 Screws (61), Curved washer (63) and I. Bevestig de voorste stabilisator (89) op het frame (56) met 2×M8 schroeven (61), gebogen ring (63) Cap nut (64) .Tighten fully.

  • Page 7: Assembly Instruction

    ASSEMBLY INSTRUCTION STAP 2 STEP 2 I. Carefully lift the Handlebar Post (90) until it is vertical. And slide onto the plastic cover (79). Connect the upper Tension Cable (87) and Lower Tension Cable (27) I. Til de stuurstang voorzichtig op (90) tot deze verticaal is en laat deze door de plastic cover glijden II.
  • Page 8 ASSEMBLY INSTRUCTION STAP 3 STEP 3 Assemble the saddle (18) to the adjustable seat post (23). Place the Seat Post (23) into the Main Frame (56), set it at the desired position and lock it by inserting the bolt with the Quick Release (26) in place and tighten Monteer het zadel (18) op de verstelbare zadelstang (23).
  • Page 9 ASSEMBLY INSTRUCTION STAP 4 STEP 4 Assemble the pedals (38L+R) to the crank (35L+R). Bevestig de pedalen (38L+R) aan de zwengel (35L+R). Hometrainer iConsole HTR 2.1...
  • Page 10 ASSEMBLY INSTRUCTION STAP 5 STEP 5 Attach the Handlebar (4) onto the Handlebar Post (90) with Washer (96), Spring washer (93), Tube Spacer (14), Plastic Cover (12) and Knob (15). Also tighten the Spring Washer (14) and Round head hex screw (12) Hand Pulse Cable over the Computer Bracket.
  • Page 11 ASSEMBLY INSTRUCTION STAP 6 STEP 6 Remove the 4 pre-fitted screws (9) from the back of the computer.Connect the computer link cable and the computer (1). Sit the computer (1) onto its bracket and secure in place using the 4×screws Installeer twee batterijen in de computer (1).
  • Page 12 ASSEMBLY INSTRUCTION STAP 7 STEP 7 Attach the computer bracket (8L+R) onto the Main Post (90) using screws (67) and self-tapping screws (10). Attach the box holder(92) onto the Main Post (90) using screws (91). Connect the adapter, the adapter input (97) is on the back of the device. Bevestig de console (8L+R) op de stuurstang (90) met schroeven (67) en zelftappende schroeven (10).

  • Page 13: Exploded Drawing

    EXPLODED DRAWING Hometrainer iConsole HTR 2.1...

  • Page 14: Parts List

    PARTS LIST Part Description Quantity Computer Sponge Foam End cup Handlebar Hand pulse pads Self-tapping screw Hand pulse cable 5204 computerbracket L 5204 computerbracket R Screw Self-tapping screw End cap Screw Tube spacer Washer T shpar knob Screw seat post plastic cover L seat post plastic cover R Saddle Round head hex screw...
  • Page 15 PARTS LIST Part Description Quantity Screw Hex Nut Bearing 6300RS Flat Washer Magnet flywhele Bearing 6003RS Bearing Bearing 6003RS Bushing Hex Nut Spring Idler axle Cap nut Flat Washer Plastic Washer Flywheel Frame Frame wheels Bearing Magnet flywheelarbar Rear stabilizer Screw Pedal L Pedal R...
  • Page 16 PARTS LIST Part Description Quantity Anti-loose Allen Screw φ 240 belt wheel Pedal Axle Washer Screw Flat Washer Upper sensor cable Front end cap L Front end cap R Front stabilizer Main post Screw Bottle cage Flat Washer Allen Key Wrench Adapter Hometrainer iConsole HTR 2.1...

  • Page 17: Computer Instruction

    COMPUTER INSTRUCTION COMPUTERHANDLEIDING KEY FUNCTION FUNCTIE KNOP 1. Recovery Test heart rate recovery status. 1. Recovery Test uw hartslag herstel. 2. Body fat Test body fat% and BMI. Test uw vetpercentage en BMI. 2. Body fat 3. Reset - Hold on pressing for 2 seconds, computer will reboot and start from user setting.
  • Page 18 COMPUTER INSTRUCTION DISPLAY FUNCTIONS TIME Workout time displayed during exercise. Range 0:00 ~ 99:59 SPEED Workout speed displayed during exercise. Range 0.0 ~ 99.9 DISTANCE Workout distance displayed during exercise. Range 0.0 ~ 99.9 CALORIES Burned calories during workout display. Range 0 ~ 999 PULSE Pulse bpm displayed during exercise.
  • Page 19 COMPUTER INSTRUCTION WERKING OPERATION WERKING WERKING 1. Steek de stekker in het stopcontact (of houd RESET KNOP 2 seconden in), zoemer maakt geluidje en gehele display licht op gedurende 2 seconden. De diameter van het wiel komt bij SPEED te staan en de Europese specificatie laat "E" zien, de Aziatische specificatie "A"...
  • Page 20 COMPUTER INSTRUCTION 4. Handmatige modus 4. Manual mode (1) When you aire in manual mode you can increase or decrease the resistance with the rotary knob. (1) Door de knop te drukken en te draaien kunt u de LEVEL waarde veranderen die knippert totdat deze (2) By pressing “START”, you can increase or decrease the distance, time, calories and pulse.
  • Page 21 (2) Het PROGRAM logo verschijnt verschillend tijdens het selecteren. (3) Na het verstellen van TIME drukt u op de START knop om het programma te starten. Na COMPUTER INSTRUCTION START kan u LEVEL nog steeds veranderen en de display in LEVEL en waarde. Na drie seconden zonder invoer komt WATT op het display.
  • Page 22 (2) Door te draaien en drukken op de knop kan u de WATT waarden verstellen. (3) Na START kan de gebruiker nog steeds trainen en WATT LEVEL zal automatisch aanpassen. COMPUTER INSTRUCTION (4) Na START kan de gebruiker nog steeds de WATT waarden aanpassen. 8.

  • Page 23: Computer Instruction

    seconden. (2) Na het verkrijgen van het HR(hartslag) signaal zal het meten beginnen. COMPUTER INSTRUCTION (3) Na 8 seconden komt uw BMI en FAT% op het scherm. 10. Recovery mode 10. Herstel modus This mode measures how quickly you recover form a workout. Gedurende START of STOP meet u uw hartslag, daarna drukt u op de RECOVERY knop om te (1) Make sure the device measures your heart rate during training.

  • Page 24: Iconsole+ App

    ICONSOLE+ APP iConsole+ APP Download de iConsole+ app in de App Store of Google Play. Download iConsole+ app in App Store or Google Play. Zet bluetooth aan op je telefoon of tablet en zoek naar de console. Turn on Bluetooth on tablet or smartphone, search for console device and press Connect. Turn on iConsole+ Doe de iConsole+ app op je tablet of telefoon, en druk op start om de workout te app on tablet or smart phone, and press connect to start workout with tablet.

  • Page 25: Training Instruction

    TRAINING INSTRUCTION TRAININGSINSTRUCTIES TRAININGSINSTRUCTIES VETVERBRANDING FAT BURNING VETVERBRANDING The body start to burn fat at approximate 65% of the maximum pulse rate. Lichaamsvet verbrand na ongeveer 65% van de maximale hartslag. Lichaamsvet verbrand na ongeveer 65% van de maximale hartslag. To reach an optimum at burning rate, it is advisable to keep the pulse rate between 70%- 80% of the Voor maximale vetverbranding wordt het aangeraden om de hartslag tussen 70%- 80% van het Voor maximale vetverbranding wordt het aangeraden om de hartslag tussen 70%- 80% van het...
  • Page 26 TITEL IN BALK For questions or missing parts please contact your dealer. Hometrainer iConsole HTR 2.1...
