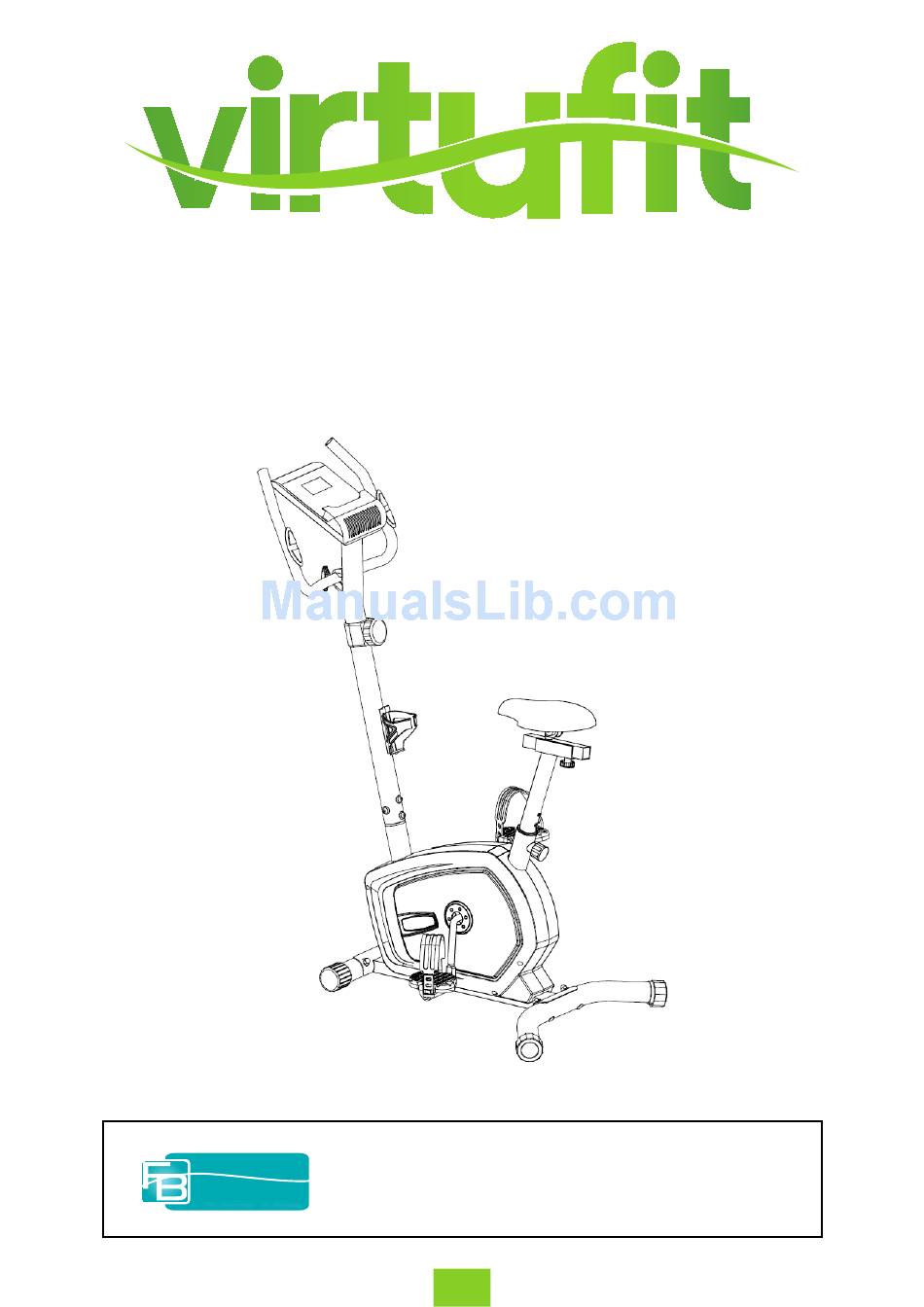

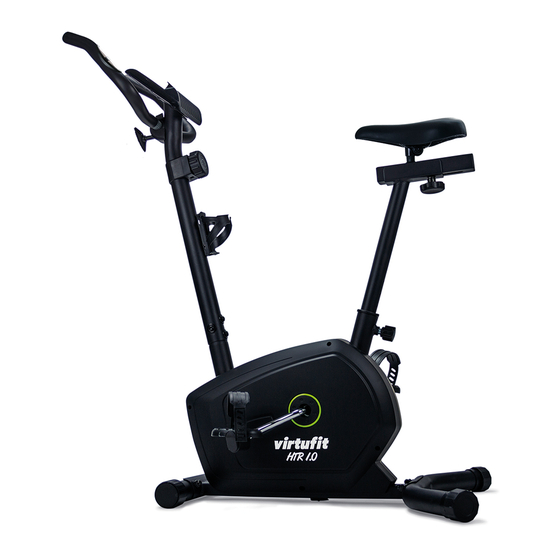

- Page 1 HTR 1.0 Exercise Bike Owners manual +31 (0)74-7600219 Fitness service@fitnessbenelux.nl Benelux www.fitnessbenelux.nl Uw partner in fitness...
-
Page 2: Table Of Contents
INDEX Safety instruction Assembly instruction Exploded drawing Maintenance of the exercise bike Parts list Computer manual 13-15 Training instructions VirtuFit HTR 1.0 Exercise Bike... -
Page 3: Safety Instruction
FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. VIRTUFIT TAKES NO RESPONSIBILITY FOR INJURIES OR MATERIAL DAMAGE CAUSED BY USING THIS PRODUCT. BE SURE TO READ THE ENTIRE MANUAL BEFORE YOU ASSEMBLE OR OPERATE YOUR MACHINE. -
Page 4: Assembly Instruction
STEP 1 Install the Front and Rear Stabilizers: Fix the Front stabilizer (2) and Rear stabilizer (3) to the Main frame (1) with the Carriage bolts (13), Arc wash- ers (14) and Acorn nuts (15). VirtuFit HTR 1.0 Exercise Bike... - Page 5 I. Secure the Left and Right Pedals (9L/R) to the Crank (10) respectively, viewed from the rider’s seated position. NOTE: Both pedals are labeled “L” for left and “R” for right. II. To tighten turn the left pedal counterclockwise and the right pedal clockwise. VirtuFit HTR 1.0 Exercise Bike...
- Page 6 NOTE: Make sure the Saddle (7) has been secured fasten before getting on it. When adjusting the Height of Saddle post, the Maximum insert depth Mark line cannot be higher than the edge of the tube of the Main Frame section. VirtuFit HTR 1.0 Exercise Bike...
- Page 7 III. Finally, insert the Handlebar post (4) to the Main frame (1) and secure with the Allen bolts (19) and Arc washer (35). Ensure that all bolts and washers are in place and partially threaded in before completely tightening any one bolt. VirtuFit HTR 1.0 Exercise Bike...
- Page 8 I. Fit the Pulse sensor wires (24) through the hole of Handlebar post (4), and then pull out from top of the Handlebar post (4); II. Fit the Handlebar (5) across the Handlebar Post (4), secured in place with the T-Knob (36), Handlebar Clamp (27), Spacer (26) and Flat Washer (33) as shown. VirtuFit HTR 1.0 Exercise Bike...
-
Page 9: Assembly Instruction
I. Connect the Pulse sensor wires (24) and Connective wire (18) to the wires coming out from the Computer (8), and then attach the Computer (8) to the Computer bracket with the Philips screws (30). II. Then tighen the bottle bracket(40) to the handlebar post(4) with philliphs screw(41)&flat washer(42). VirtuFit HTR 1.0 Exercise Bike... -
Page 10: Exploded Drawing
EXPLODED DRAWING VirtuFit HTR 1.0 Exercise Bike... -
Page 11: Maintenance Of The Exercise Bike
II. It may be that the sensors have become damp, dirty or greasy, clean them regularly. The console doesn’t work If the console isn’t working the batteries may be empty. Replace the batteries. Are there any other problems? Please contact your dealer. VirtuFit HTR 1.0 Exercise Bike... -
Page 12: Parts List
Foam grip Handlebar Round End cap Philips screw Pop-pin Knob Plastic bushing Flat washer D8 Knob Nut Arc washer D10xφ25x1.5xR25 T-knob Square End Cap U-Shaped Slider Horizontal saddle post Bottle bracket Phillips screw Flat washer VirtuFit HTR 1.0 Exercise Bike... -
Page 13: Computer Manual
4 minutes or you stop exercising. RESET By holding down the reset button for 3 seconds you can clear the settings. MODE Press the MODE button to select a desired func- tion. VirtuFit HTR 1.0 Exercise Bike... - Page 14 To measure your heart rate, place your hands on the two contact surfaces. The most accurate heart rate is displayed after 30 seconds. This measurement can not be taken as a basis for medical treatment. VirtuFit HTR 1.0 Exercise Bike...
-
Page 15: Computer Manual
- Press RESET shortly to reset the calorie target. Press MODE to set the next optional target. If you keep the SET key pressed when setting the target value, the target value will accelerate. VirtuFit HTR 1.0 Exercise Bike... -
Page 16: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit HTR 1.0 Exercise Bike... - Page 17 +31 (0)74-7600219 Fitness service@fitnessbenelux.nl Benelux www.fitnessbenelux.nl Uw partner in fitness VirtuFit HTR 1.0 Exercise Bike...
