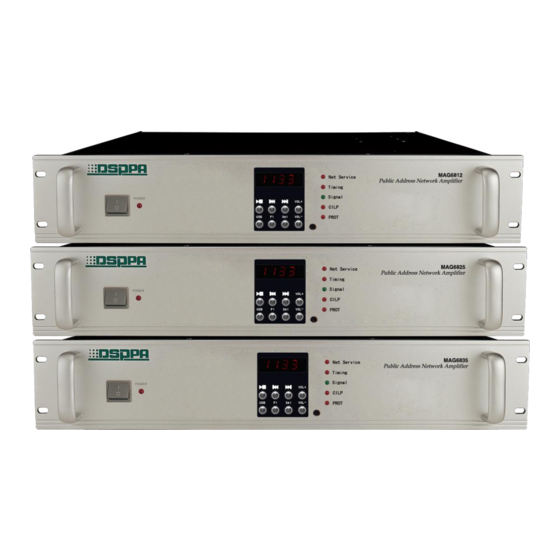

Networked Playing Power Amplifier
Operation Instruction
Welcome to use the public address system manufactured by DSPPA Company. For the better application of this
equipment, please read the operation instruction carefully prior to use.
Guangzhou DSPPA Audio Co., Ltd.
Public Address System
MAG6806- Digital Screen
MAG6812- Digital Screen
MAG6825- Digital Screen
MAG6835- Digital Screen
MAG6865- Digital Screen
http: //www.dsppatech.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DSPPA MAG6806
Summary of Contents for DSPPA MAG6806
- Page 1 MAG6835- Digital Screen MAG6865- Digital Screen Operation Instruction Welcome to use the public address system manufactured by DSPPA Company. For the better application of this equipment, please read the operation instruction carefully prior to use. Guangzhou DSPPA Audio Co., Ltd.
- Page 2 This page is blank for recording by user...
- Page 3 About Operation Instruction This operation instruction shall come into effect on the date on which the development of the networked playing power amplifiers MAG6806/6812/6825/6835/6865 is completed. The operation instruction contains the profile of the networked playing power amplifier, precautions for use, instruction to system connection, operation instruction to product, and technical indicators of the product and so on.
-
Page 4: Matters Needing Attention
Matters needing attention Please read the following before operating the product. Warning The following basic requirements must be strictly observed, to avoid potential personal injury and equipment or property damages to you or any person nearby. The basic requirements include without limitation to the following: Power source/power cable When abnormal conditions are realized... -
Page 5: Description Of Product
It is allowed to suspend the machine any place accessible to the network. The network transmission protocol developed independently by DSPPA network team to achieve the dynamic audio data transmission. With the double network interface redundancy design, it is possible to work crossing the network segments. - Page 6 网络化广播系统 the mute adjustment potentiometer to adjust the volume of the mute level. Outside the machine, there are the two kinds of powerful broadcasting output interfaces including EMC 24V and short-circuit dry contact, which are used to connect the audio controller of the loudspeaker, or to connect the intelligent power supply.
- Page 7 网络化广播系统 external line broadcasting are used to realize the strong real-time capacity. The time delay after keeping the paging state for more than 24 hours will be less than 0.5S. The independently developed network data correction algorithm is used to guarantee the accuracy of the received data while guaranteeing the real-time of the data transmission, so that the operation is stable and reliable.
- Page 8 Remark: No indication function is opened on the CLIP indicator lamp and Signal indicator lamp PROT indicator lamp in MAG6806. Net Service: Network indicator lamp. If the Cabinet fixing screw hole for installation of machine is connected successfully to the...
- Page 9 网络化广播系统 2.2 Profile of back panel Figure (2) Back Panel of MAG6806/12/25/35 网络化播放功放 警告 CAUTION! RISK OF ELECTRIC SHOCK 请勿打开,以免触电 DO NOT OPEN F8AL LAN1 LAN2 USB Disk Micro SD AUX lN MIC2 100V MIN MAX AUDIO OUTPUT MIC1 MUTE...
- Page 10 网络化广播系统 this machine, it is possible to publish the voice 11. 100V output common port broadcasting directly to this window. 100V constant voltage output cold end. Microphone mute adjustment 100V output port MIC1 mute depth adjustment button. 100V constant voltage output hot end. EMC break-in playing output Power input socket and fuse holder The signal output from this interface is under...
- Page 11 网络化广播系统 V+ is used to increase the output volume of the terminal. 11. F3: Button of IP address checking/modification; press this button to enter the state of checking, and then press the button of CH+/CH- to select the parameter to be checked, and press F3 to enter the state of setting;...
- Page 12 网络化广播系统 3. Example of connection diagram 3.1 Schematic diagram of application of MAG6812 terminal in system Control host of networked address system Other networks equipments Other equipments of networked address system networked address system Ethernet Networked broadcasting Networked broadcasting Networked broadcasting Networked broadcasting power amplifier...
- Page 13 网络化广播系统 3.2 Schematic diagram of connection of interface on MAG6812 terminal In addition to the self-contained MP3 player and network sound source, this machine is also equipped with one channel of auxiliary input, one channel of auxiliary output used to connect the other sound sources and power amplifiers.
- Page 14 网络化广播系统 4. Instruction to operation: 1. Modification of volume: Press the button of “VOL+“ of “VOL-” to directly adjust the playing volume; press the button of “F1” to switch over among the volumes; when switching over to the current sound source, it is possible to adjust the volume of such sound source.
-
Page 15: Precautions For Use
Please keep the operation instruction and warranty card properly. For the issue or matter not covered herein, please contact the distributor or visit http://www.DSPPA.com. In case of any fault occurred during the period of warranty, please contact the service personnel of our company (or distributor);... -
Page 16: Packing List
网络化广播系统 Packing List List Quantity 1.5m double-audio line 1 piece 3m 8-core network cable 1 piece Crystal head 2 pieces 10A national standard MP-P power line 1 piece 3P green socket (3.81MM socket) 1 piece 4P green socket (3.81MM socket) 2 pieces M5×19 half-countersunk cross-head screw (silver) 4 pieces... -
Page 17: Performance Specification
Capacity supporting U-disk 32GB Power supply AC220V/50Hz-60Hz Over-current, overheat, over-voltage protection Satisfied Display screen Digital screen Weight 7.0kg/7.3kg/7.39kg/8.92kg/9.92kg Dimension of outer packing (L×W×H mm) 520×485×145 Dimension of machine(L×W×H mm) 483×410×88 Guangzhou DSPPA Audio Co., Ltd. 网络广播功放 MAG68 系列 网络广播功放 MAG68 系列...
