O W N E R ' S M A N U A L
Before operating, please read this manual carefully.
FEATURES
Dual channel amplifier, individual volume and tone control for each channel.
200V/100V/70V rated power output.
Clear LED display of operation status, multifunctional protection.
With priority input (available in short-circuit); 3-wire mode output, simple wiring
system
Exchange control signal and status information with MAG Host (choose and buy)
Intelligent PA series
Amplifier
MAG1306II
MAG1312II
MAG1325II
MAG1335II
Advertisement
Table of Contents
Related Manuals for DSPPA MAG1306II
Summary of Contents for DSPPA MAG1306II

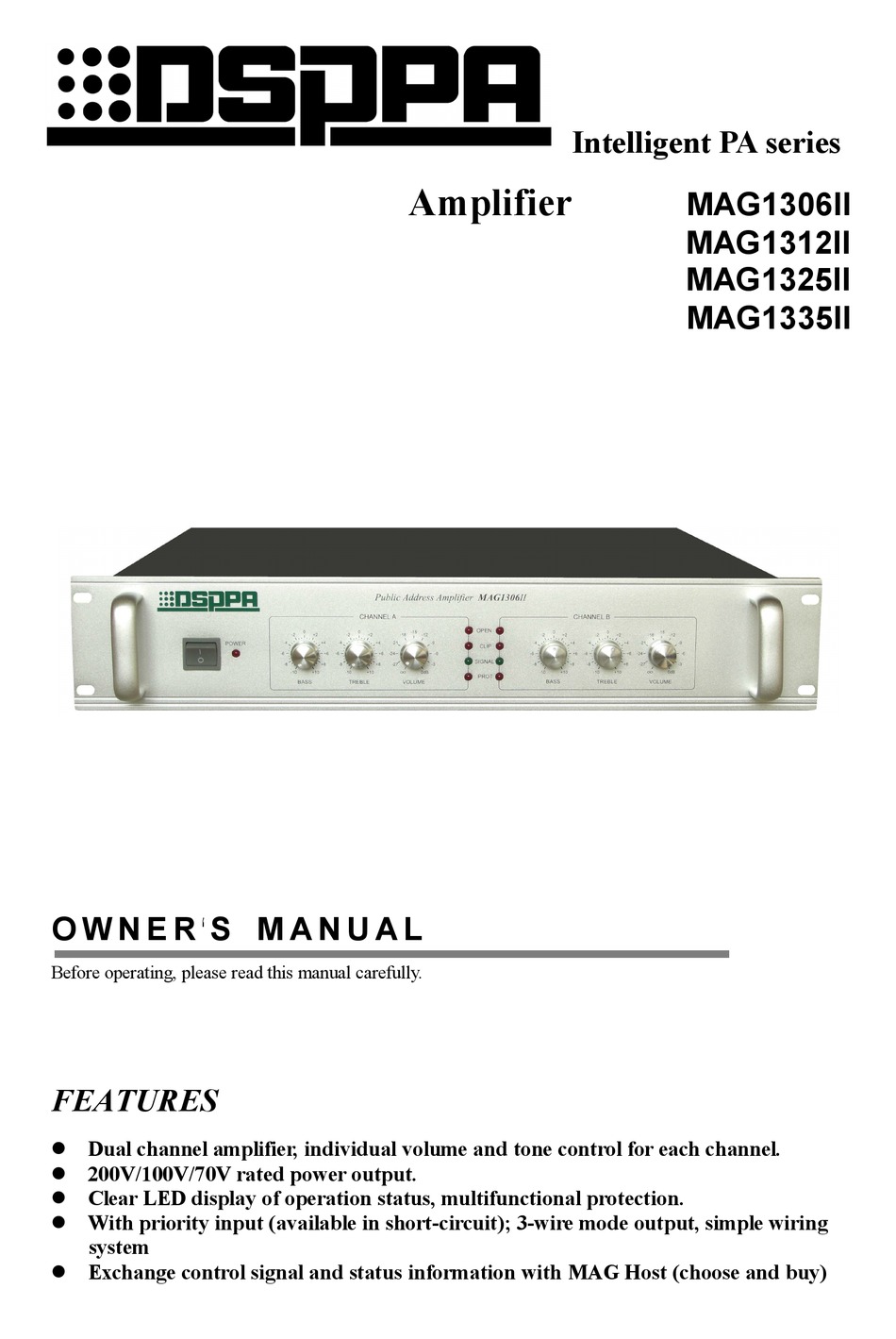

- Page 1 Intelligent PA series Amplifier MAG1306II MAG1312II MAG1325II MAG1335II O W N E R ‘ S M A N U A L Before operating, please read this manual carefully. FEATURES Dual channel amplifier, individual volume and tone control for each channel.

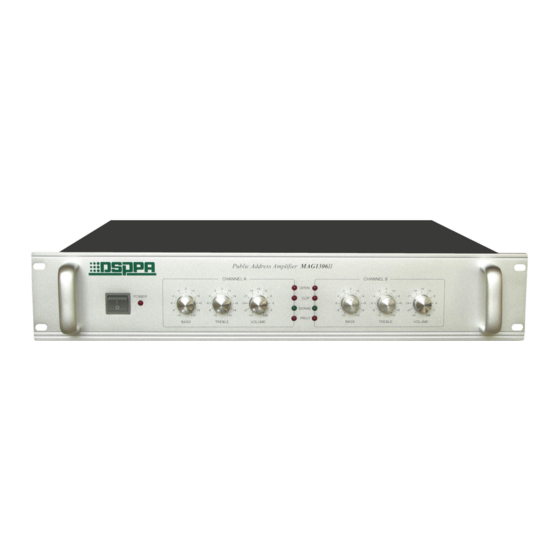

- Page 2 Front Panel Clip, Signal, Protection Power Switch 7. Channel B Status Indicator (same with Channel Power Indicator A’S) Channel A Bass Control Channel B Bass Control Channel A Treble Control Channel B Treble Control Channel A Volume Control 10. Channel B Volume Control Channel A Status Indicator (from the top down) open circuit (available in communication),...
- Page 3 OPERATING PRECAUTIONS Make sure the AC supply voltage is correct, it means the AC supply voltage must be as the same as that printed on the rear panel of the amplifier. Damage caused by connecting the amplifier to improper AC supply voltage is not covered by the three-year warranty. Make sure the power switch is off before making any input or output connections.
- Page 4 EMC IN terminal only can receive the short-circuit signal which is compatible with OTE series products. Main Communication Interface can link with OTE peripheral control interface. Communication Interface linking with Main Communication Interface of another amplifier to make multiple device linkage. Output Connections Output terminals are on the rear panel.
- Page 5 When the “Power switcher” is off, please pull out the power cord from the socket. Please keep the equipment out of water. To reduce the risk of electric shock, do not remove the cover. No user parts inside. Refer servicing to qualified service personnel. Guangzhou DSPPA Audio Co., Ltd.
- Page 6 ADD-ONS Comparison of equipment with address： Equip. MAG host Coding Equip. MAG host Coding 0x09 00001001 0x19 00011001 00001010 0x1a 00011010 00001011 0x1b 00011011 00001100 0x1c 00011100 00001101 0x1d 00011101 00001110 0x1e 00011110 00001111 0x1f 00011111 0x10 00010000 0x20 00100000 0x11 00010001 0x21...
