Vents VUT 180 P5 User Manual

Air handling unit

Advertisement

Quick Links

USER'S MANUAL
VUT 180 P5
VUE 180 P5
VUT 180 P5 EC
VUE 180 P5 EC
VUT 180 P5B EC
VUE 180 P5B EC
Air handling unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VUT 180 P5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vents VUT 180 P5

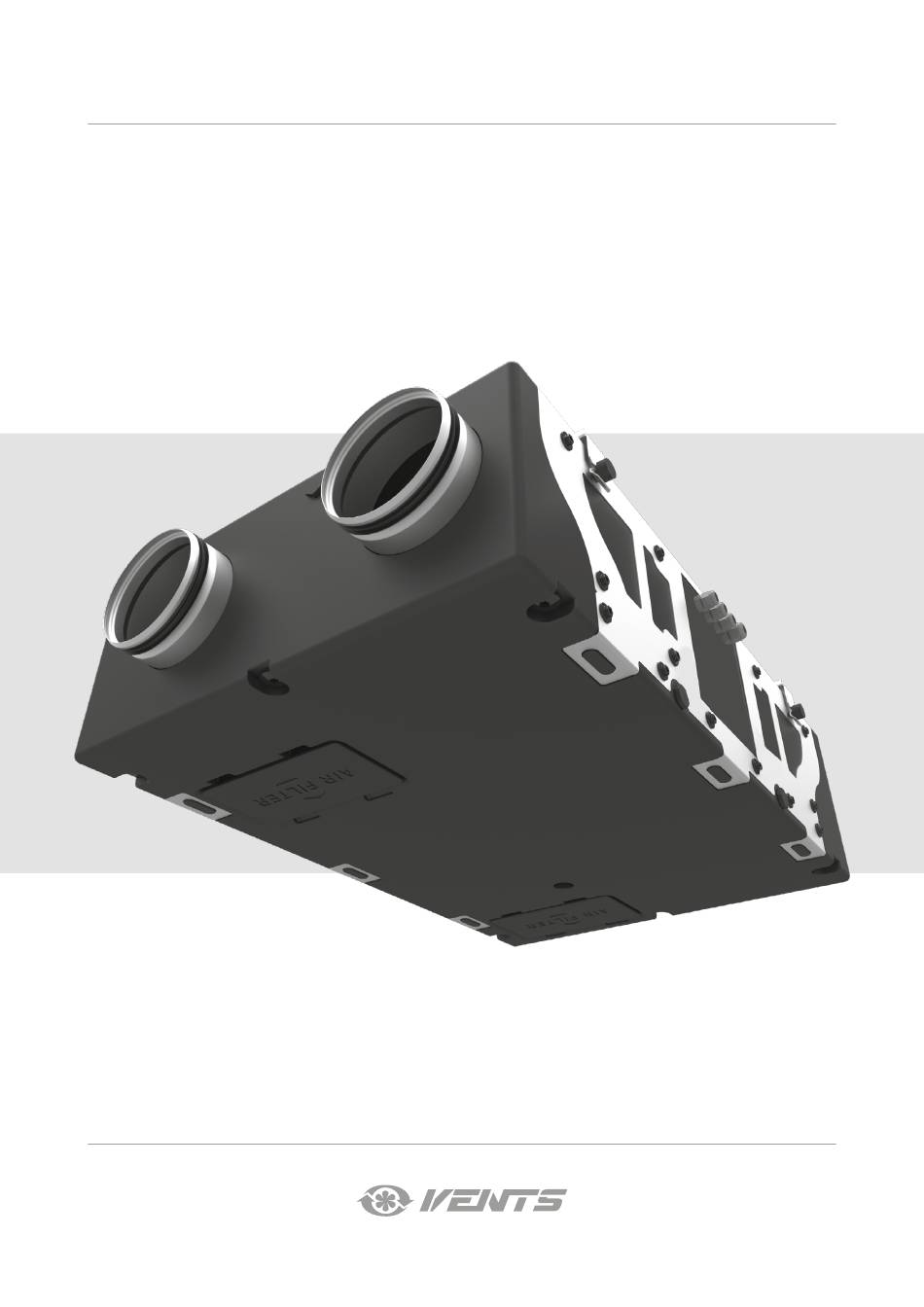

  • Page 1 USER’S MANUAL VUT 180 P5 VUE 180 P5 VUT 180 P5 EC VUE 180 P5 EC VUT 180 P5B EC VUE 180 P5B EC Air handling unit...
  • Page 2: Table Of Contents

    VUT/VUE 180 P5(B) (EC) CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Design and operating logic ..............................7 Mounting and set-up .................................. 9 Connection to power mains ..............................13 Technical maintenance ................................
  • Page 3: Safety Requirements

    SAFETY REQUIREMENTS • Please read the user’s manual carefully prior to installing and operating the unit. • All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit.
  • Page 4 VUT/VUE 180 P5(B) (EC) • Disconnect the unit from • Do not allow children to power mains prior to any operate the unit. technical maintenance. • When the unit generates • Do not store any explosive or unusual sounds, odour, or highly flammable substances emits smoke, disconnect it in close proximity to the unit.
  • Page 5: Purpose

    PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air.
  • Page 6: Technical Data

    IP44 for the unit motors. The unit design is constantly being improved, thus some models may be slightly different from those described in this manual. TECHNICAL DATA MODEL VUT 180 P5(B) VUE 180 P5(B)* VUT 180 P5 VUE 180 P5*...
  • Page 7: Design And Operating Logic

    DESIGN AND OPERATING LOGIC The unit has the following operating logic: warm stale extract air from the room flows into the unit, where it is filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter.
  • Page 8 VUT/VUE 180 P5(B) (EC) UNIT OPERATION MODES Heat recovery Warm extract air from the room flows into the unit and is cleaned in the extract filter. Then the air is moved through the heat exchanger and is exhausted outside with the extract fan. Cold fresh air from outside flows into the unit, where it is cleaned in the supply filter. Then the air flows through the heat exchanger and is directed to the room with the supply fan.
  • Page 9: Mounting And Set-Up

    MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. HV2 HUMIDITY SENSOR INSTALLATION AND CONNECTION The HV2 humidity sensor is not included in the delivery set and can be ordered separately. Install the humidity sensor into the mount on the inner side of the unit and connect the humidity sensor to the appropriate connector. UNIT MOUNTING To attain the best performance of the unit and to minimise turbulence-induced air pressure losses, connect the straight air duct section to the spigots on both sides of the unit while mounting.
  • Page 10 VUT/VUE 180 P5(B) (EC) Expansion Fastener anchor Mounting bracket Fasteners for mounting are not included in the delivery set and should be ordered separately. While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit, refer to the Technical Data section.
  • Page 11 Diagram 4. Wall horizontal installation CONDENSATE DRAINAGE The VUT 180 P5(B) (EC) heat recovery units require condensate drainage. The hole for the drain pipes is in the cover of the unit. Remove the service panel and remove the plugs from the holes. When mounting according to the Diagram 1 install the drain pipe from the delivery set into the hole.
  • Page 12 VUT/VUE 180 P5(B) (EC) Drain hole location in case of mounting according to the Diagram 1 Drain hole location in case of mounting according to the Diagram 2 Then connect the drain pipe to the sewage system using the SG-32 U-trap kit (available upon separate order). The pipes are required to have a minimum slope of 3°.
  • Page 13: Connection To Power Mains

    CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY.
  • Page 14 VUT/VUE 180 P5(B) (EC) External control units wiring diagram for units with an A2 control regulator Speed controller +10V 230 V/50-60 Hz Name Wire Speed controller 3 x 0.25 mm +10V External control units wiring diagram for units with an External control units wiring diagram for units with an A40 A3/A4 control panel control panel...
  • Page 15: Technical Maintenance

    TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS. FOLLOW THE SAFETY REGULATIONS WHEN CARRYING OUT MAINTENANCE. Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1.
  • Page 16 VUT/VUE 180 P5(B) (EC) 3. Fan maintenance (once per year). Even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow. Clean the fans with a soft cloth, brush, or using compressed air. Do not use water, aggressive solvents or sharp objects as they may damage the impeller.
  • Page 17: Storage And Transportation Regulations

    STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 ˚С up to +40 ˚С and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation.
  • Page 18: Manufacturer's Warranty

    VUT/VUE 180 P5(B) (EC) MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 19: Certificate Of Acceptance

    CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model VUT/VUE 180 P5___ EC A____ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 20 V170EN-06...
