Summary of Contents for Vents VKV

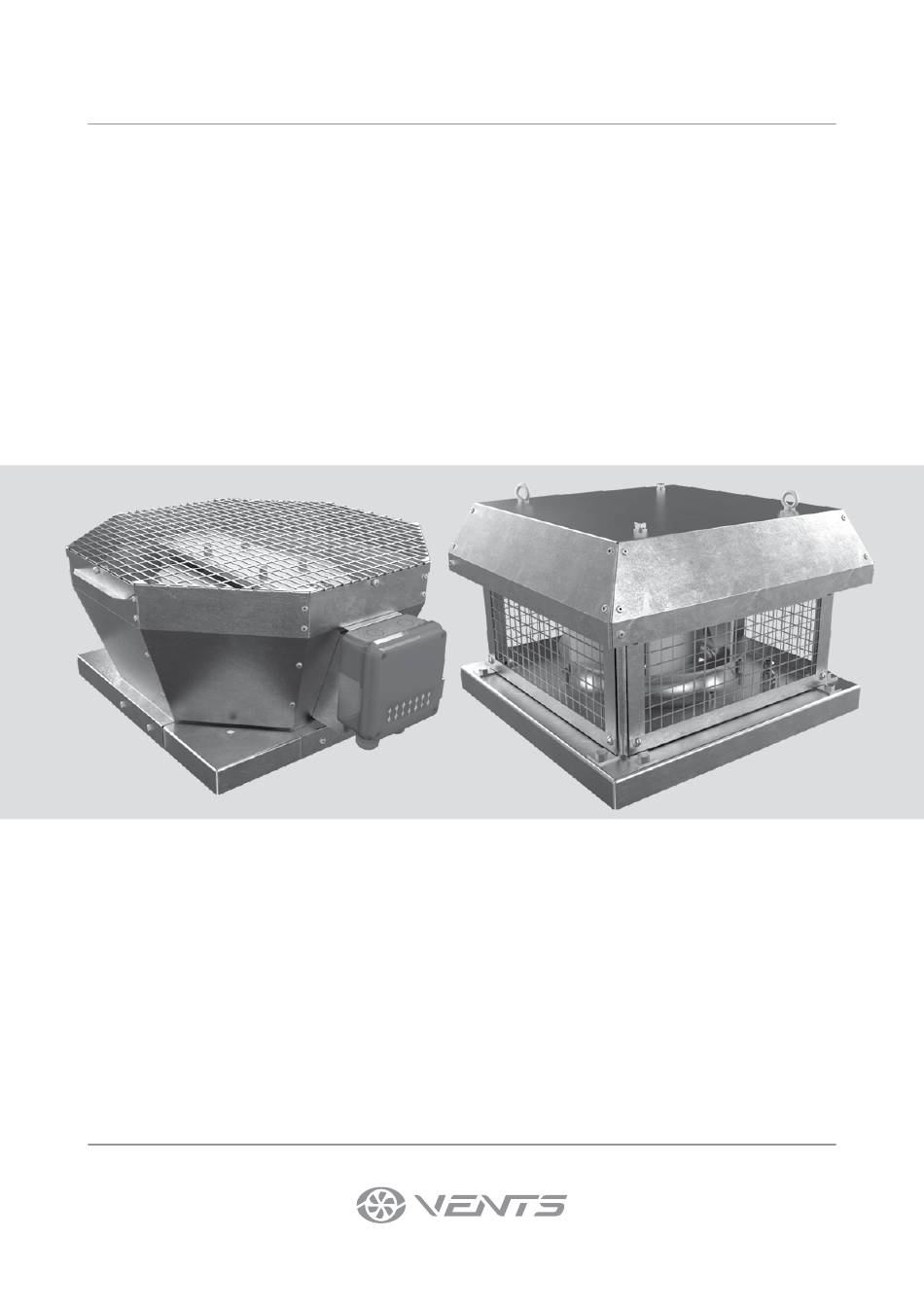

- Page 1 USER’S MANUAL Centrifugal roof fan...
-
Page 2: Table Of Contents
Warranty card ....................................23 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the VKV/VKH unit and all its modifications. - Page 3 Do not sit on the unit and do not put objects on it. The information in this user’s manual was correct at the time of the document’s preparation. The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time in order to incorporate the latest technological developments.
-
Page 4: Purpose
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORISED ACCESS BY UNATTENDED CHILDREN. The VKV/VKH roof fans in metal casing are designed for ventilation systems in industrial premises as well as pools, apartment buildings, offices, hospitals, restaurants and other premises heated during the winter season. -
Page 5: Technical Data
TECHNICAL DATA The unit is rated as a Class I electrical appliance. ∅D* – flange connection dimensions. www.ventilation-system.com... - Page 6 A [mm] B [mm] C [mm] D [mm] L [mm] [kg] (4 holes) (6 places) VKV 2E 190 VKV 2E 220 VKV 2E 225 VKV 4E 225 VKV 2E 250 VKV 4E 250 VKV 4E 280 VKV 2E 310 VKV 4E 310...
- Page 7 VKV/VKH VKV/VKH VKV/VKH VKV/VKH VKV/VKH VKV/VKH 2E 190 2E 220 2E 225 4E 225 2E 250 4E 250 Voltage [V] 1~ 230 1~ 230 1~ 230 1~ 230 1~ 230 1~ 230 Frequency [Hz] Power [W] Current [A] 0.30 0.40 0.49...
-
Page 8: Mounting And Set-Up
• In the VKV 2E 200, VKV 2E 225, VKV 4E 225, VKV 4E 310, VKV 4D 310, VKV/VKH 6E 500, VKV/VKH 4D 500, VKV/VKH 6D 500, VKV/VKH 6D 630, VKV/VKH 6D 710 models the counter flange is attached together with the fan inlet ring. - Page 9 INSTALLATION CHART Roof fan base KKV backdraft damper Insulation Roof design GKV flexible insert FKV counter flange Air duct INSTALLATION EXAMPLES 1 – roof fan; 2 – GKV flexible insert; 3 – KKV backdraft damper; 4 – FKV counter flange; 5 – RKV or RKVI mounting frame; 6 – air duct. www.ventilation-system.com...
-
Page 10: Connection To Power Mains
Depending on modification, the fan motors can have no built-in thermal protection. This should be taken into account when choosing a motor starter or a contactor. ACCESS TO THE TERMINAL BLOCK VKV ACCESS TO THE TERMINAL BLOCK VKH www.ventilation-system.com... - Page 11 Wiring diagram 1: VKV/VKH 2E 190, VKV/VKH 2E 220, VKV/VKH 2E 225, VKV/VKH 4E 225, VKV/VKH 2E 250, VKV/VKH 4E 250, VKV/VKH 4E 280, VKV/VKH 2E 310, VKV/VKH 4E 310, VKV/VKH 4E 355, VKV/VKH 4E 400, VKV/VKH 6E 400, VKV/VKH 4E 450, VKV/VKH 6E 450 Depending on modification, the fans can have thermal contacts.
- Page 12 Model Voltage [V] Frequency [Hz] Current [A] circuit breaker. wires, and S is the cross Type D, [A] section in mm VKV/VKG 2E 190 1~ 230 0,30 3x0,75 VKV/VKG 2E 190 1~ 230 0,40 3x0,75 VKV/VKG 2E 220...
- Page 13 ASYNCHRONOUS ELECTRIC MOTOR STARTING METHODS There are several methods for starting asynchronous squirrel-cage electric motors. The most common methods are: direct-on-line (DOL), with a soft starter (SS) or with a frequency converter (FC). Direct-on-line starting In case of direct-on-line starting (i.e. by connecting the motor to the electric mains with a simple line contactor), the motor starting time significantly increases due to high inertia of the impeller, which, in turn, results in high in-rush starting currents in the circuit.
-
Page 14: Commissioning
VKV/VKH Problems associated with DOL starting The problems caused by DOL starting may be divided into two groups: An abrupt start causes mechanical shock, jolts in the mechanism, shock removal of free play etc. A heavy start cannot be completed. -
Page 15: Technical Maintenance
TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION PRIOR TO COMMENCING ANY TECHNICAL MAINTENANCE PUT UP A PROHIBITORY SIGN ON THE FAN STARTING PANEL: “DO NOT SWITCH ON! MEN AT WORK!”... - Page 16 VKV/VKH VKV 2E 190, VKV 2E 220, VKV 2E 225, VKV 4E 225, VKV 2E 250, VKV 4E 250, VKV 4E 280, VKV 2E 310, VKV 4E 310, VKV 4D 310, VKV 4E 355, VKV 4D 355 with a hinged cover and a motor...
- Page 17 TROUBLESHOOTING Problem Possible reasons Elimination The fan will not start. No power supply. Check the mains switch. Check the electrical connections according to the wiring diagram. Jammed motor. Carefully check the fan impeller for possible seizure and eliminate it, if necessary. If the impeller is in order, replace the electric motor.
-
Page 18: Storage And Transportation Regulations
VKV/VKH The fan supplies less air than Wrong calculation of the ventilation network and Re-calculate the network parameters and select a expected. wrong selection of the fan. matching fan. The network resistance exceeds the design Re-arrange the ventilation network to decrease its calculations. -
Page 19: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 20 VKV/VKH www.ventilation-system.com...
- Page 21 www.ventilation-system.com...
- Page 22 VKV/VKH www.ventilation-system.com...
-
Page 23: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Centrifugal roof fan Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 V204EN-02...
