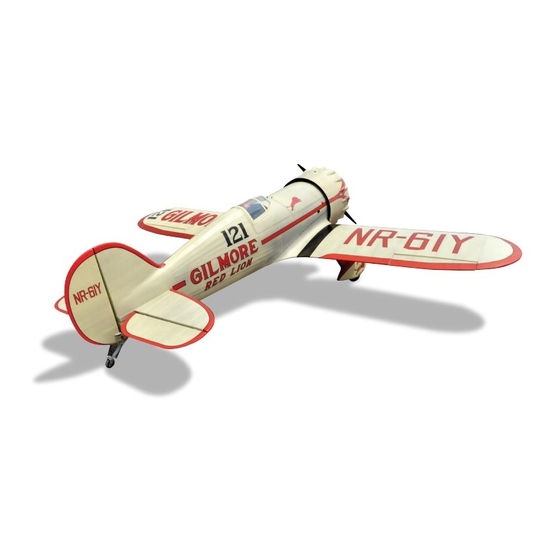

Black Horse Model GILMORE BH179 Instruction Manual Book
  1. Manuals
  2. Brands
  3. Black Horse Model Manuals
  4. Toy
  5. GILMORE BH179
  6. Instruction manual book

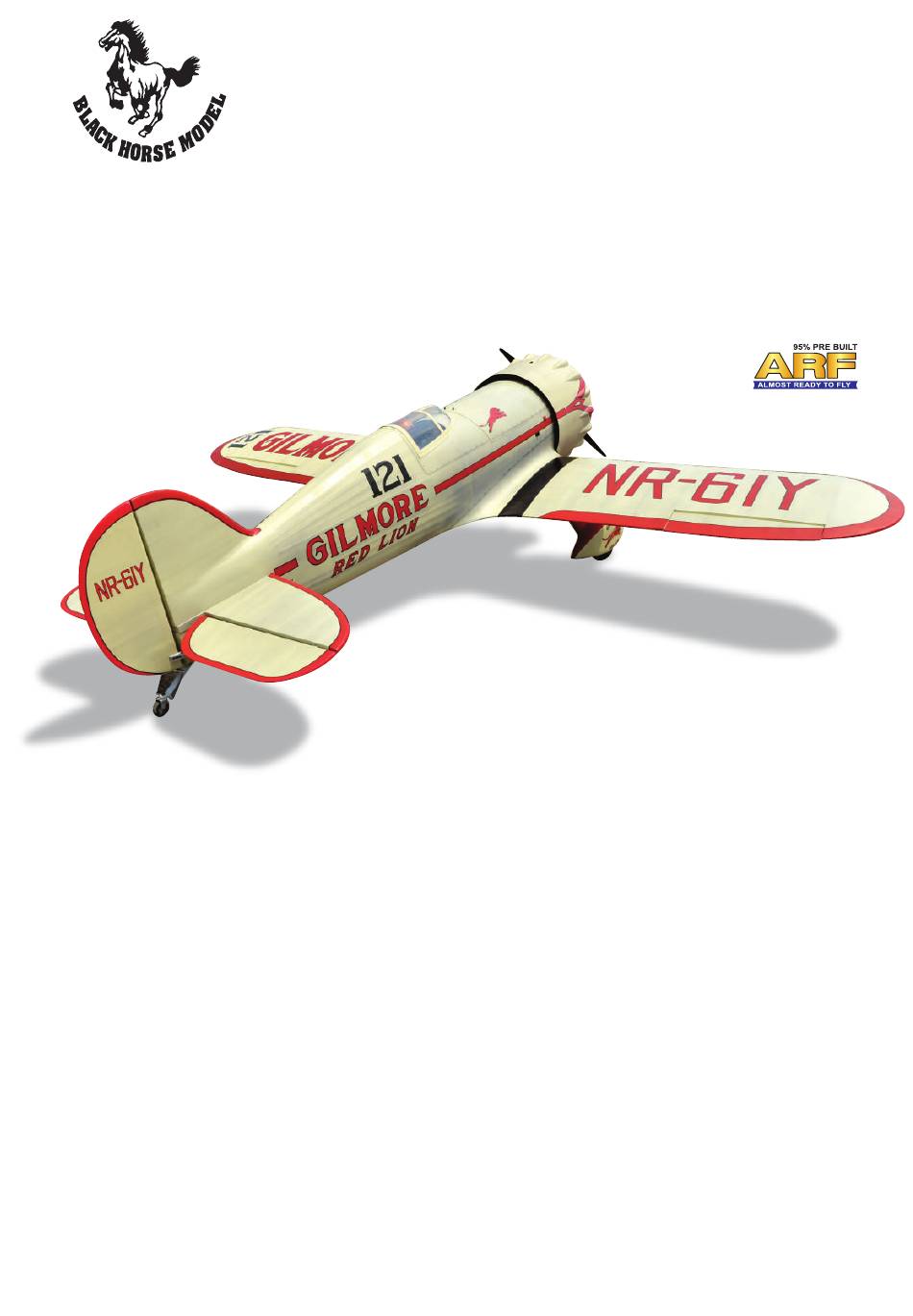

Black Horse Model GILMORE BH179 Instruction Manual Book

Glow and ep
Hide thumbs
Table of Contents

Advertisement

Quick Links

Glow and EP
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
95% ALMOST READY TO FLY
SPECIFICATION:
- Wingspan: 2,350mm (92.5 in).
- Length: 1,880mm (74 in).
- Weight: 9.4 kg (20.7 lbs).
- Wing area: 98.5dm2.
- Wing loading: 95.4 g/dm2.
- Wing type: Naca Airfoil.
- Servo mount: 42mm x 21mm.
- Gear type: Aluminium Hi-grade
for main gear and tail gear (included).
Instruction Manual Book
GILMORE
Parts listing required (not included):
- Radio: 05 channels.
- Servo: 6 standard high torque servos.
- Engine: 60 cc gas.
- Motor: Brushless outrunner 5000 - 6500W, 230KV.
- Propeller: Suit with your engine.
Recommended motor and battery
set up (not included):
- Motor: RIMFIRE. 50 cc.
- Lipo cell: 12 cells 5500 - 6000mAh.
- Receiver battery: 6.0V 2400-2600mAh(2 Packs).
- ESC: 120A.
Item code: BH179
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GILMORE BH179 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model GILMORE BH179

Summary of Contents for Black Horse Model GILMORE BH179

  • Page 1 Instruction Manual Book Item code: BH179 GILMORE Glow and EP ALL BALSA - PLY WOOD CONSTRUCTION. COVERED IN A HEAT-SHRINK FILM WITH PRINTED. 95% ALMOST READY TO FLY SPECIFICATION: Parts listing required (not included): - Wingspan: 2,350mm (92.5 in). - Radio: 05 channels. - Length: 1,880mm (74 in).

  • Page 2: Table Of Contents

    Thank you for purchasing Black Horse Model products. With over 18 years experience in production and fly testing, Black Horse Model is committed to bring the best quality products and good service to customers. Along with a team of creative engineers and skilled workers, we will always accompany with customers by our great experiences, fully enthusiasm...

  • Page 3: Warranty

    In that Black Horse Model has no control over the final assembly or material used for final assembly, SUGGESTION Black Horse Model is not responsible for loss of use , or other incidental or consequential damages. To avoid scratching your new airplane, do not...

  • Page 4: Covering Tools

    GILMORE Item code: BH179 Instruction Manual FLIGHT WARNINGS ADHESIVES AND REQUIRED TOOLS When ready to fly, first extend the transmitter aerial. Thin CA Switch on the transmitter. 30-minute epoxy Switch on the receiver. 6-minute epoxy Check that the wings are correctly fitted to the Threadlocker thread locking cement fuselage.
  • Page 5 GILMORE Item code: BH179 Instruction Manual • Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within the Team AMA Program Document. (AMA Document #718.) (j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A.) 3.

  • Page 6: Parts Listing (Not Included)

    GILMORE Item code: BH179 Instruction Manual PARTS LISTING (NOT INCLUDED). Servo extension leads....pcs. 330mm ..2 pcs. Engine: 55-60 cc gas 220mm ..2 pcs. Propeller. Suit with your engine. LiPo. 6S - 22.2V- 4,000 - 5,500mAh. 2 Packs Motor: RIMFIRE.50..
  • Page 7 GILMORE Item code: BH179 Instruction Manual : Fuselage set(1a: Canopy; 1b: Pilot; 1c: Top Hatch Fuselage). : Fuel tank set(8a: Clunk; : Cowling set(5a: 8b: Stopper(three line). plastic part). : Wing set (2a; 2b; 2c: Aluminium tube dihedral brace). : Engine set. : Vertical stabilizer set.

  • Page 8: Installing The Ailerons

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE AILERON 44mm Pinned hinge - - - - - - - - - - - - - 8 Bottom View Make certain the hinges are adequately secured with glue. If they come loose in flight accidents may result.

  • Page 9: Installing The Ailerons Servos

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE AILERON SERVOS Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, remove the masking tape and the servo lead from the thread.
  • Page 10 GILMORE Item code: BH179 Instruction Manual For Aileron Servo 2 mm approx.16mm 3mm Flat Washer 3mm Hex Nut 3x12mm Cap Screw 1.5mm Screw 2x10mm Tp Screw 1.5mm...
  • Page 11 GILMORE Item code: BH179 Instruction Manual Bottom View 2x10mm Tp Screw Aileron 3x12mm Tp Screw Horn 3x12mm Cap Screw Aileron...

  • Page 12: Installing The Main Landing Gear

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE MAIN LANDING GEAR 6x20mm Head Cap Screw 5mm Spring Washer 6x60mm Socket Head Cap Screw - - - - - - - 2 - - - - - - - 4 - - 2 4x12mm Socket Head 6mm Flat Washer Cap Screw...
  • Page 13 GILMORE Item code: BH179 Instruction Manual 6x20mm Head Cap Screw 6mm Spring Washer 6mm Flat Washer...
  • Page 14 GILMORE Item code: BH179 Instruction Manual 4x12mm Socket Head Cap Screw Spring Washer...
  • Page 15 GILMORE Item code: BH179 Instruction Manual...
  • Page 16 GILMORE Item code: BH179 Instruction Manual ?x??mm Socket Head Cap Screw ?x?mm Flat Washer Hex Nut Colar Plastic 5x16mm Flat Washer...
  • Page 17 GILMORE Item code: BH179 Instruction Manual...

  • Page 18: Installing The Fuselage Servos

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE FUSELAGE SERVOS 1) Install the rubber grommets and brass collets into the elevator, rudder and throttle servos. Test fit the servos into the servo tray. Trim the tray if necessary to fit your servos. 2) Mount the servo to the tray using the mounting screws provided with your radio system.

  • Page 19: Installing The Horizontal Stabilizer

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE HORIZONTAL STABILIZER Ball link 3x12mm Cap Screw 44mm Pinned Hinge 3mm Hex Nut 3 x 35mm Cap Screw - - - - 4 - - - - 4 - - - - 2 - - - - 2 - - - - 8 Horn...
  • Page 20 GILMORE Item code: BH179 Instruction Manual Make certain the hinges are adequately secured with glue. If they come loose in flight accidents may result.
  • Page 21 GILMORE Item code: BH179 Instruction Manual 3x12mm Cap scew Flash washer Push rod Ball link Fuselage Top View Servo tail 3mm Hex nut...

  • Page 22: Installing The Vertical Stabilizer

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE VERTICAL STABILIZER Ball link 44mm Pinned Hinge 3mm Hex Nut 3 x 35mm Cap Screw - - - - 2 - - - - 1 - - - - 1 - - - - 5 Horn Rudder - - - - 1...
  • Page 23 GILMORE Item code: BH179 Instruction Manual 3x12mm Cap scew Flash washer Push rod Ball link Servo tail 3mm Hex nut Fuselage Top View Rudder...

  • Page 24: Installing The Tail Gear

    GILMORE Item code: BH179 Instruction Manual 3x16mm 3x15mm INSTALLING THE TAIL GEAR Button Head Tp Screw Cap Screw 3x16mm Button head Cap Screw - - - - - - 2 Spring Washer 3x15mm Tp Screw - - - - - - 2 3mm Spring Washer - - - - - - - 2 2.5mm...

  • Page 25: Secure The Wing To The Fuselage

    GILMORE Item code: BH179 Instruction Manual SECURE THE WING TO THE FUSELAGE 32x890mm Aluminium tube. Ø - - - - 1...
  • Page 26 GILMORE Item code: BH179 Instruction Manual 4x15mm Socket Head Cap Screw...

  • Page 27: Installing The Engine Mount

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE ENGINE MOUNT May be you also need to trim some wood from the tri-angle Using plate of plywood (supplied with the kit) mark the holes wood for the installation is easy. onto the fire wall for installing the engine mount for DLE-55CC or OS-60CC.

  • Page 28: Installing The Engine

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE ENGINE 5x16mm Rubber Washer 12x70mm Aluminium 5mm Spring Washer - - - - - - - 4 - - - - - - - 4 - - - - - - - 4 5x100mm Socket Head 5x16mm Flat Washer M5 Blind Nut...

  • Page 29: Installing The Stopper

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE STOPPER Cut off shaded portion...

  • Page 30: Installing The Fuel Tank

    GILMORE Item code: BH179 Instruction Manual 5. When satisfied with the alignment of the stopper INSTALLING THE FUEL TANK assembly tighten the 3mm x 20mm machine screw until the rubber stopper expands and 1. Using a modeling knife, cut one length of silicon seals the tank opening.

  • Page 31: Installing The Throttle

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE THROTTLE direction. When the throttle stick is moved forward from idle to full throttle, the throttle barrel should also open and close using this motion. If not, reverse the direction of the servo, using the Connector - - - - 1 transmitter.

  • Page 32: Mounting The Cowl

    GILMORE Item code: BH179 Instruction Manual MOUNTING THE COWL 3x12mm Tp Screw - - - - - - - 5 Cowling Plastic part - - - - - - - 1 - - - - - - - 1 300mm 2.5mm...
  • Page 33 GILMORE Item code: BH179 Instruction Manual 3x12mm Tp Screw...

  • Page 34: Installing The Switch, Receiver And Battery.48

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE SWITCH, RECEIVER AND BATTERY 1) Plug the servo leads and the switch lead into INSTALLING THE SWITCH the receiver. You may want to plug an aileron 1) The switch should be mounted on the fuselage extension into the receiver to make plugging in the side, opposite the muffler, close enough to the aileron servo lead easier when you are installing...

  • Page 35: Installing Top Hatch & Canopy

    GILMORE Item code: BH179 Instruction Manual INSTALLING TOP HATCH & CANOPY Position the canopy so the rear frame on the canopy is aligned with the rear edge of the cockpit opening. Top hatch - - - - 1 Use canopy glue to secure the canopy to the canopy hatch.
  • Page 36 GILMORE Item code: BH179 Instruction Manual Open / Close Adhesive tape...

  • Page 37: Installing The Propeller

    GILMORE Item code: BH179 Instruction Manual INSTALLING THE PROPELLER AND SPINNER...

  • Page 38: Installing The Electric Motor ( Ep Version )

    GILMORE Item code: BH179 Instruction Manual M4 Blind Nut INSTALLING THE ELECTRIC MOTOR (EP MOTOR) 10x20mm Aluminium 4x35mm Socket Head Cap Screw - - - - - 4 - - 4 M4 Blind Nut 4mm Flat Washer - - - - - 4 - - - - - - - - 4 4mm Spring Washer - - - - - - - - 4...
  • Page 39 GILMORE Item code: BH179 Instruction Manual 5mm Rubber Washer 5mm Flat Washer 5mm Spring Washer 12x70mm 5mm Flat Washer 5x100mm...

  • Page 40: Balancing

    GILMORE Item code: BH179 Instruction Manual LATERAL BALANCE BALANCING 1. It is critical that your airplane be balanced correctly. After you have balanced a plane on the C.G. Improper balance will cause your plane to lose You should laterally balance it. Doing this will control and crash.

  • Page 41: Control Throws

    GILMORE Item code: BH179 Instruction Manual In order to obtain the CG specified, reposition the receiver and other equipment. If not obtain the CG specified, add a weight and adjust. Do not fly before confirming the correct location of the CG. If the CG is incorrect, you lose control of your airplane which leads to accidents.

  • Page 42: For Your Radio Installation Basic Connection For Airplane And Adjustment Of Servos

    GILMORE Item code: BH179 Instruction Manual FOR YOUR RADIO INSTALLATION BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS For more information, refer to radio system instruction manual. Example of connection Follow instruction manual of Engine and Battery. Aileron Servo Aileron Aileron Servo Aileron Engine...

  • Page 43: Main Gear Dimensional Detail

    GILMORE Item code: BH179 Instruction Manual MAIN GEAR DIMENSIONAL DETAIL 35mm 67mm 41mm 180mm TAIL GEAR DIMENSIONAL DETAIL 130mm 24.5mm...

  • Page 44: Decoration

    GILMORE Item code: BH179 Instruction Manual DECORATION <Top View> <Bottom View> <Side View> Right <Side View> Left...
  • Page 45 GILMORE Item code: BH179 Instruction Manual I/C FLYING WARNINGS Always operate in open areas, away from fly near power lines,aerials or AL WAYS adjust the engine from behind NEVER factories, hospitals, schools, buildings other dangerous areas including airports, the propeller, and do not allow any part of and houses etc.
  • Page 46 GILMORE Item code: BH179 Instruction Manual I/C FLYING GUIDELINES Operate the control sticks on the ALWAYS land the model INTO When ready to fly, first extend transmitter and check that the the wind, this ensures that the the transmitter aerial. control surfaces move freely and in model lands at the slowest possible the CORRECT directions.
