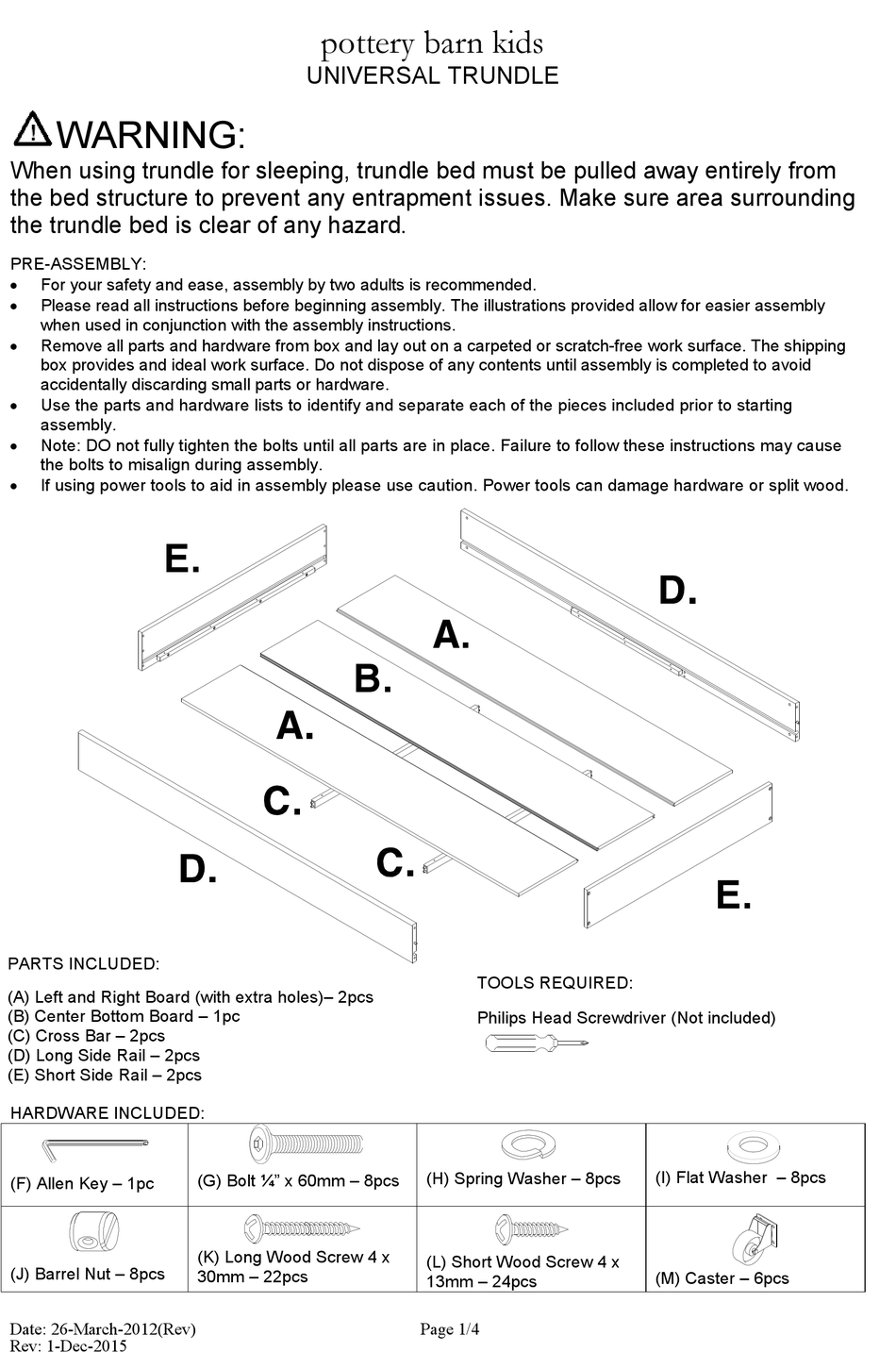

WARNING:
When using trundle for sleeping, trundle bed must be pulled away entirely from
the bed structure to prevent any entrapment issues. Make sure area surrounding
the trundle bed is clear of any hazard.
PRE-ASSEMBLY:
For your safety and ease, assembly by two adults is recommended.
Please read all instructions before beginning assembly. The illustrations provided allow for easier assembly
when used in conjunction with the assembly instructions.
Remove all parts and hardware from box and lay out on a carpeted or scratch-free work surface. The shipping
box provides and ideal work surface. Do not dispose of any contents until assembly is completed to avoid
accidentally discarding small parts or hardware.
Use the parts and hardware lists to identify and separate each of the pieces included prior to starting
assembly.
Note: DO not fully tighten the bolts until all parts are in place. Failure to follow these instructions may cause
the bolts to misalign during assembly.
If using power tools to aid in assembly please use caution. Power tools can damage hardware or split wood.
PARTS INCLUDED:
(A) Left and Right Board (with extra holes)– 2pcs
(B) Center Bottom Board – 1pc
(C) Cross Bar – 2pcs
(D) Long Side Rail – 2pcs
(E) Short Side Rail – 2pcs
HARDWARE LIST
HARDWARE INCLUDED:
(F) Allen Key – 1pc
(J) Barrel Nut – 8pcs
Date: 26-March-2012(Rev)
Rev: 1-Dec-2015
pottery barn kids
UNIVERSAL TRUNDLE
E.
(G) Bolt ¼" x 60mm – 8pcs
(K) Long Wood Screw 4 x
30mm – 22pcs
A.
B.
TOOLS REQUIRED:
Philips Head Screwdriver (Not included)
(H) Spring Washer – 8pcs
(L) Short Wood Screw 4 x
13mm – 24pcs
Page 1/4
E.
(I) Flat Washer – 8pcs
(M) Caster – 6pcs
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for pottery barn kids UNIVERSAL TRUNDLE
Summary of Contents for pottery barn kids UNIVERSAL TRUNDLE
- Page 1 UNIVERSAL TRUNDLE WARNING: When using trundle for sleeping, trundle bed must be pulled away entirely from the bed structure to prevent any entrapment issues. Make sure area surrounding the trundle bed is clear of any hazard. PRE-ASSEMBLY: For your safety and ease, assembly by two adults is recommended.
- Page 2 ASSEMBLY INSTRUCTIONS: 1. Please make sure bed side rails set on highest level for use with trundle. 2. Lay the Left and Right Bottom Boards (A) on either side of the Center Bottom Board (B) with the pre-drilled holes facing up, as shown below. 3.
- Page 3 4. To Attach Long Side Rails (D) to the assembled piece, insert the wooden dowels on the ends of the Cross Bars (C) into the pre-drilled holes on the Long Side Rails (D), as shown below. Press firmly to ensure the Left and Right Bottom Boards (A) sit in the slots of the Long Side Rails (D). 5.
- Page 4 6. Secure Bottom Boards with the Long/Short Side Rails by inserting the remaining (10) Long Wood Screws (K) into pre-drilled holes on wooden cleats and tighten with a Philips Head Screwdriver as shown. (10x) Attach the (6) Casters (M) to pre-drilled holes on the Bottom Boards using (24) Short Wood Screws (L) and tighten with a Philips Head Screw Driver.
