ETI NETCOM ADH Replacement Procedure page 5

Position tubing wrench or
hose pliers at these points.

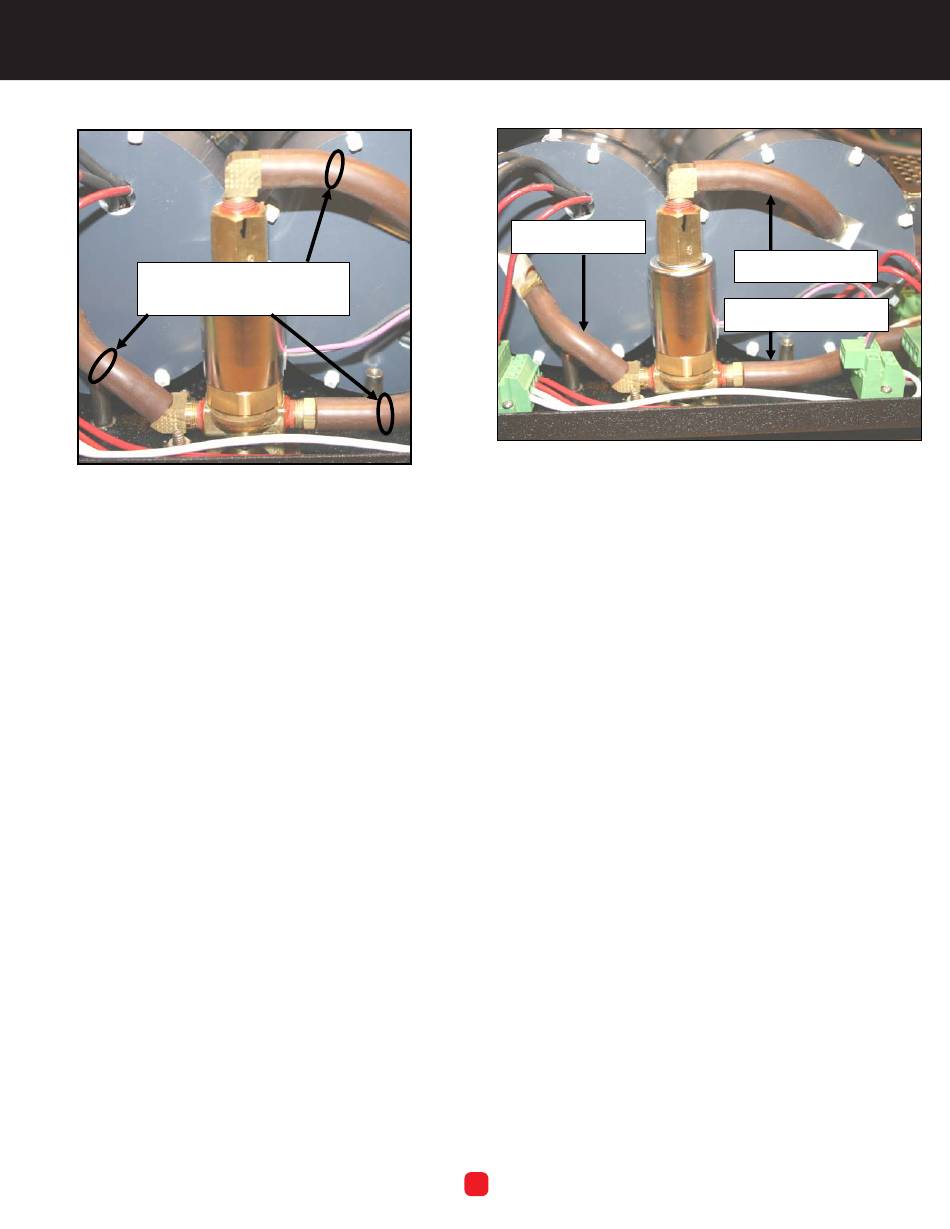

Figure 3. DISCONNECTING THE AIR
HOSES.
6. Install the new mounting bracket with
the new inlet solenoid module over
®
the Pem studs from which the
original module mounting bracket
was removed. Secure the mounting
bracket to the chassis using the two
nuts and lock washers removed in
step 5 and torque to 10 in/lb.
7. Reconnect the three air hoses to the
corresponding fittings on the new
module from which they were
removed from the original module in
step 4. Refer to Figure 4. The top
hose runs to Canister 2. The lower
left hose runs to Canister 1. The
lower right hose runs from the
compressor. Make sure each hose fits
tightly onto the fitting.
South Bend, Indiana USA | networketi.com
To Canister 1
Figure 4. THE INLET SOLENOID
MODULE AIR HOSE CONNECTIONS.
8. Connect the green power connector
from the new inlet solenoid module
where the original power connector
had been, then tighten the two captive
end screws to secure it in place.
9. Reinstall the forward top panel using
the hardware removed in step 2.
10.
Restore machine power.
5
ADH INSTRUCTION MANUAL | PART NO.
To Canister 2
From the Compressor
24108 REV B
