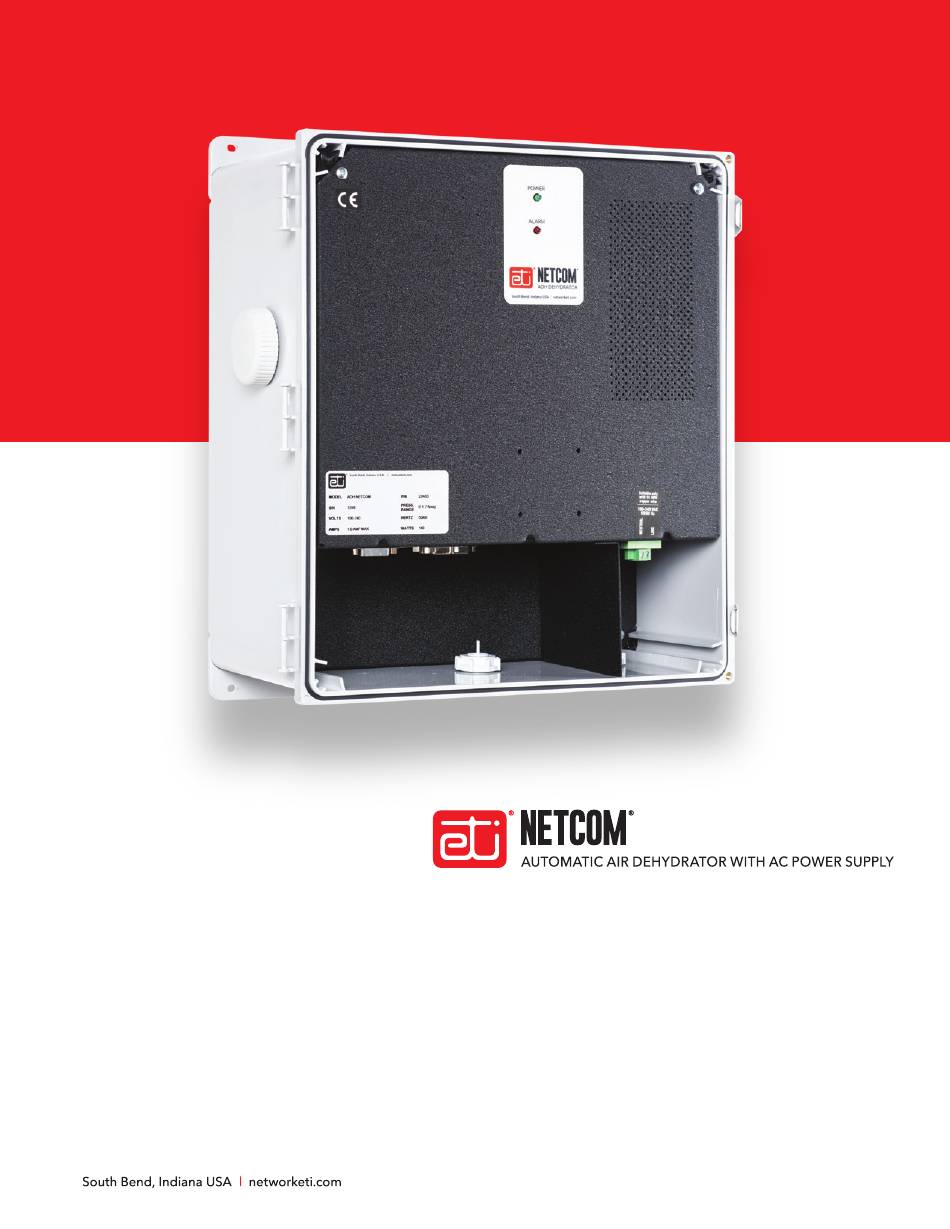

- Page 1 MODEL ADH NEMA AC POWER SUPPLY MODULE REPLACEMENT PROCEDURE Replacement Kit Part Number 24093 Document Part Number 24732 AC POWER SUPPLY MODULE REPLACEMENT PROCEDURE | PART NO. 24732...
- Page 2 MODEL ADH NEMA AC POWER SUPPLY MODULE REPLACEMENT PROCEDURE Lethal Voltages Present ADH NETCOM AC NEMA AC POWER SUPPLY MODULE REPLACEMENT PROCEDURE Lethal voltages are present inside the ADH NETCOM. Service should be performed by This procedure addresses the removal and replacement of qualified personnel only.
- Page 3 MODEL ADH NEMA AC POWER SUPPLY MODULE REPLACEMENT PROCEDURE Perform the following steps to replace the ADH NETCOM AC NEMA Automatic Air Dehydrator AC Power Supply Loosen both captive screws, then disconnect Module (23566) connector. Shut off machine power by unplugging the unit. Open the two front door latches, loosen the two captive Loosen screw &...
- Page 4 MODEL ADH NEMA AC POWER SUPPLY MODULE REPLACEMENT PROCEDURE Once the four nuts and lock washers securing the Remove the two screws and lock washers connecting the mounting bracket to the front cover have been removed, power supply module to the mounting bracket. move the existing power module and mounting bracket Refer to Figure 4.
- Page 5 For technical help, questions or comments concerning this ETI makes no representations or warranties, either expressed or product or any ETI product contact Customer Service 8:00 a.m. - implied, with respect to the contents of this publication or the 5:00 p.m. Eastern Time.
