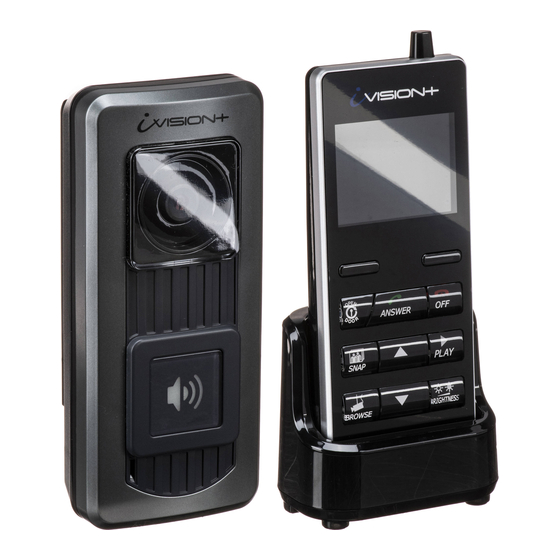

Wireless video intercom
Hide thumbs Also See for iVISION+:

Advertisement

Quick Links

Wireless Video I ntercom
For a setup of each device, please refer to individual "I nstallation I nstructions"
Thank you for purchasing the iVI SI ON+ wireless video intercom.
Due to the nature of radio frequency transmission technology, the transmission range,
stability of images, video and sound of the iVI SI ON+ can not be guaranteed at all times.
Performance of this product depends on the environment where the product is being used.
Please carefully read all included documents and test for feasibility before applying
any damages to the installation environment. Keep documents safe for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iVISION+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Optex iVISION+

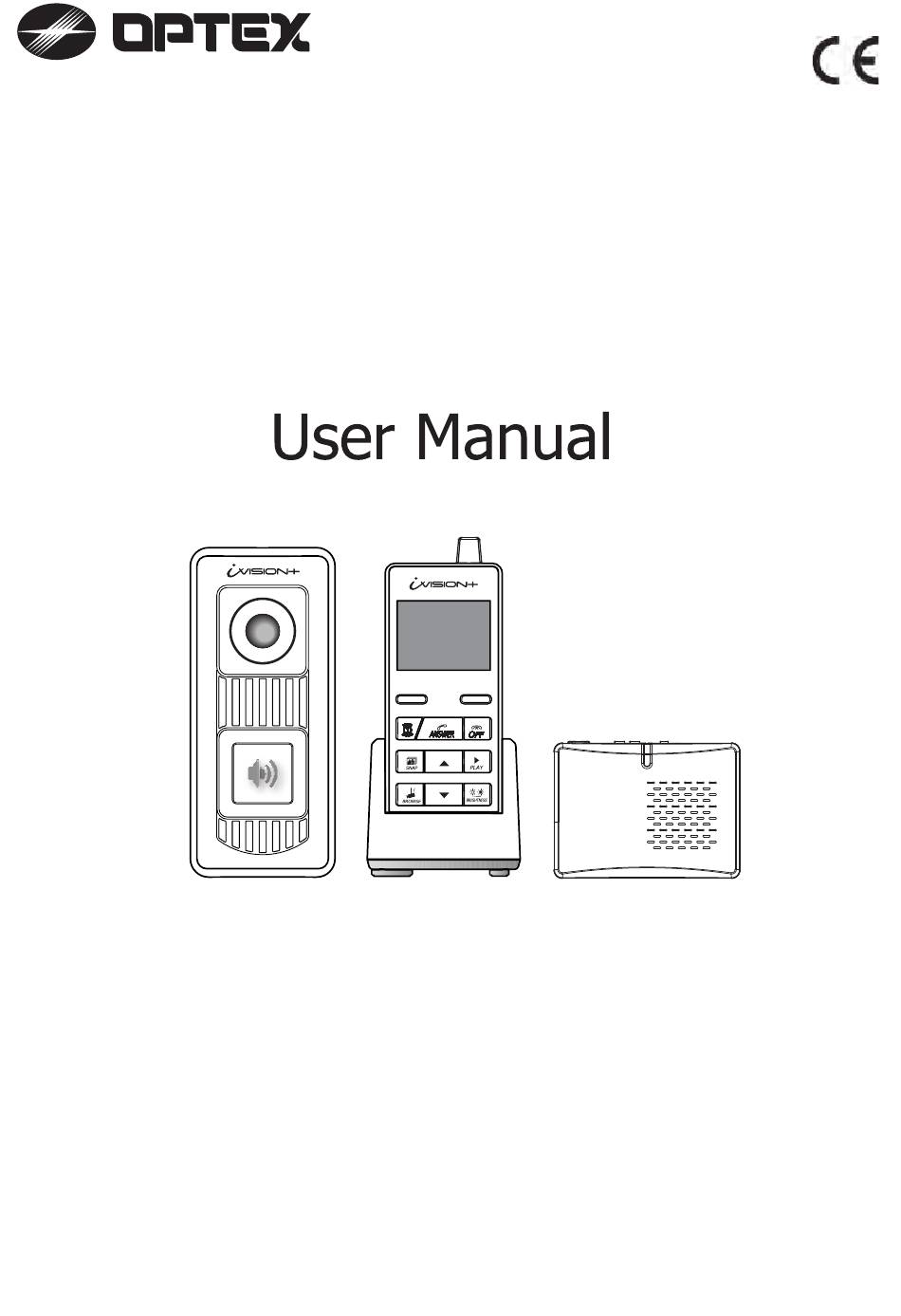

  • Page 1 Wireless Video I ntercom For a setup of each device, please refer to individual “I nstallation I nstructions” Thank you for purchasing the iVI SI ON+ wireless video intercom. Due to the nature of radio frequency transmission technology, the transmission range, stability of images, video and sound of the iVI SI ON+ can not be guaranteed at all times.
  • Page 2 iVI SI ON+ User Manual I NDEX 1. What you can do with iVI SI ON+ 1-1. Basic features of iVI SI ON+ 1-2. Expanding iVI SI ON+ with additional units 2. Overview of iVI SI ON+ devices 2-1. Handheld Monitor Unit (I VP-HU(G)) 2-2.
  • Page 3 1. What you can do with iVISION+ 1-1. Basic features of iVISION+ Knowing who is/was at your door iVISION+ is a wireless video intercom system with multi unit expansion capability. When someone comes to your door and presses the button on the Door Camera Unit (Max.
  • Page 4 OPEN DOOR Enabled only when a third party electronic door lock is connected to iVI SI ON+ system via OPTEX I VP-GU unit. Select DOOR1 or DOOR 2 to activate output relay on designated I VP-GU unit. ANSWER...
  • Page 5 2-2. Door Camera Unit (I VP-DU(G)) The Door Camera Unit is a device that makes a call to the Handheld Monitor Units (I VP-HU) when the push button is pressed by a visitor. Each iVI SI ON+ system can carry up to 2 units of Door Camera Units and each is identified by on Handheld Monitor Units.
  • Page 6 3. Before Using iVI SI ON+ 3-1. Getting ready with iVI SI ON+ system CHECK 1: Handheld Monitor Unit needs to be charged before usage Before using iVI SI ON+ system, the system must be installed accordingly to individual I nstallation I nstruction. Once the installation is done, please make sure that each Handheld Monitor Unit is fully charged on a cradle.
  • Page 7: Idle Mode

    3-3. Date and Time Setting Please enter SYSTEM SETUP menu by pressing down on LEFT function key for more than 3 seconds. (Changes in SETUP can only be made on HU1) Select “1 DATE & TI ME” by using UP and DOWN keys SYSTEM SETUP...
  • Page 8 4. How to Use Basic Features 4-1. Answering to a Door Camera Unit When a visitor presses the PUSH button on a Door Camera Unit, all other iVISION+ devices in the system make a chime sound. The Handheld Monitor Units will automatically display a video image from the Door Camera Unit.
  • Page 9 4-2. Using SNAP function to capture an image the Handheld Monitor Unit can capture an image from a Door Camera Unit and stores up to 500 images in an internal memory. During ANSWER or BROWSI NG MODE, press SNAP to record a still image from the Door Camera Unit.
  • Page 10: Standby Mode

    5. Auto Recording I mages 5-1. How “Auto Recording” works Every time Door Camera Unit makes a call, untill ANSWER button is pressed, the main Handheld Unit capture images from the screen and stores into its internal memory. When the Handheld Monitor Unit has newly captured images from Auto Recording, PLAY button blinks when you exit STANDBY MODE.
  • Page 11 6. Handling Stored I mages 6-1. Viewing I mages (1) While in I DLE MODE, press PLAY to enter I MAGE VI EWI NG MODE (2) Use UP and DOWN keys to browse through stored images. (3) End I MAGE VI EWI NG MODE by pressing OFF button.
  • Page 12: Other Settings

    7-2. Sensor Alert Enabling/ Disabling Setting Note: This function is available only for U.S./ Canada products. While Door Camera Unit(I VP-DU) is powered by an external power source and OPTEX Wireless2000 TD-20U is connected to iVI SI ON+ system through Gateway Chime Unit, calls can be triggered by motion detectors, capturing images from the I VP-DU.
  • Page 13: Frequently Asked Questions

    7-3. Door Open Duration Setting* * This setting is only active while iVI SI ON+ system is properly connected to a third party doorlock or a garage door activator through a Gateway Chime Unit (I VP-GU). SYSTEM SETUP NOTE 1 DATE & TI ME By default, DOOR OPEN DURATI ON Setting is 1 second 2 SYSTEM CONFI GURATI ON 3 DEVI CES I N NETWORK...
  • Page 14: Troubleshooting

    9. Trouble Shooting Symptoms Probable causes & solutions I s a microwave oven or a wireless LAN device in operation The video image is distorted. near the Handheld Monitor Unit? The voice is cut off while answering/ browsing a Door such equipment.
  • Page 15 MEMO - 14 -...
  • Page 16 OPTEX DO BRASIL LTDA. (Brazil) OPTEX KOREA CO.,LTD. (Korea) OPTEX SECURITY SAS (France) URL: http://www.optex.net/br/es/sec/ URL: http://www.optexkorea.com/ URL: http://www.optex-security.com/ OPTEX (EUROPE) LTD. / EMEA HQ (U.K.) OPTEX (DONGGUAN) CO.,LTD. OPTEX SECURITY Sp.z o.o. (Poland) SHANGHAI OFFICE (China) URL: http://www.optexeurope.com/ URL: http://www.optex.com.pl/ URL: http://www.optexchina.com/...
