Optex iVISION+ IVP-DU Installation Instructions

Wireless Video Intercom
IVP-DU (Door Camera Unit)

Installation Instructions

1.
IMPORTANT NOTICE
Operations under harsh environments such as out of warranted temperature,
rapid temperature change, high humidity, constant moisturization may cause the
unit to malfunction.
Electronic device such as TVs, Radios, PCs, Microwave ovens or any other device
with an electric motor may cause the unit to malfunction.
Impact or shocks can cause severe damage to the unit. Please handle the unit
with care and operate without exerting strong forces.
Transmission range of communication between units may decrease under
the following conditions.
- Any unit is installed on a metal surface.
- Presence of reinforced concrete, steel doors or other metal construction
materials between units.
- Places near strong radio sources such as broadcast stations or substations.
Location of Installation is critical to optimize image quality captured by the unit.
Images will be impaired if the ambient backlight is very strong.
Please study the installation environment according to this installation instruction.
- The video image is displayed in color during daytime or in well-lit area, but it is
displayed in black and white at night or in a dark area.
Old and new batteries may not be mixed. Do not use lithium batteries
for IVP-DU. Leakage or possible explosion can occur.
- When Door Camera Unit Low Battery Indicator blinks on HU1,
please replace batteries.
3.
CHOOSING LOCATION
3-1
Places to Avoid
The performance of the system may be affected when mounting the unit in the
following environments.
- Places that are constantly experiencing vibrations or shocks.
- Near a source of hydrosulfuric fumes, phosphorus fumes, ammonia, sulphur,
carbon dust and any acidic or noxious materials.
- An enclosed space that may cause sounds to echo
- Where rain or water may directly hit the unit.
Please also note that the video image may be seriously impaired where the camera
faces directly into the sun, and also in the following situations.
Location where the background is primarily occupied by the sky, such as in
the upper floor of an apartment building.
Location which has an adjacent white wall that will directly reflect sunlight.
Location that receives direct bright sunlight.
4.
INSTALLATION
4-1
Unit Preparation
Remove the main unit from the mounting base
Open a screw cover Insert a
and loosen the screw. a small cavity on a rim to
Pull out the screw for pop up the main unit.
a quarter of an inch .
(6mm)
driver into Lift the main unit
from the mounting base.
ATTENTION:
Thank you for purchasing the iVISION+ wireless video intercom.
Before installation and usage, please read this instruction manual thoroughly
and keep this safe for future reference.
IVP-DU features
Adjustable Camera Angle
Battery Operation Capability (for 1 year* 1 )
Auto Day(Color) / Night(IR) Vision
Max 2 Units in a System
Fluorescent Push Button
AC/DC (10~24V) Adaptable
Splash Proof for Rain and Outdoor Condition* 2
*1 calculation based on operations for 10sec times 3 activations per a day
*2 IPX4 Operating Temparature -20 to 50 degC (-4 F to 122 degF)
2.

PARTS IDENTIFICATION

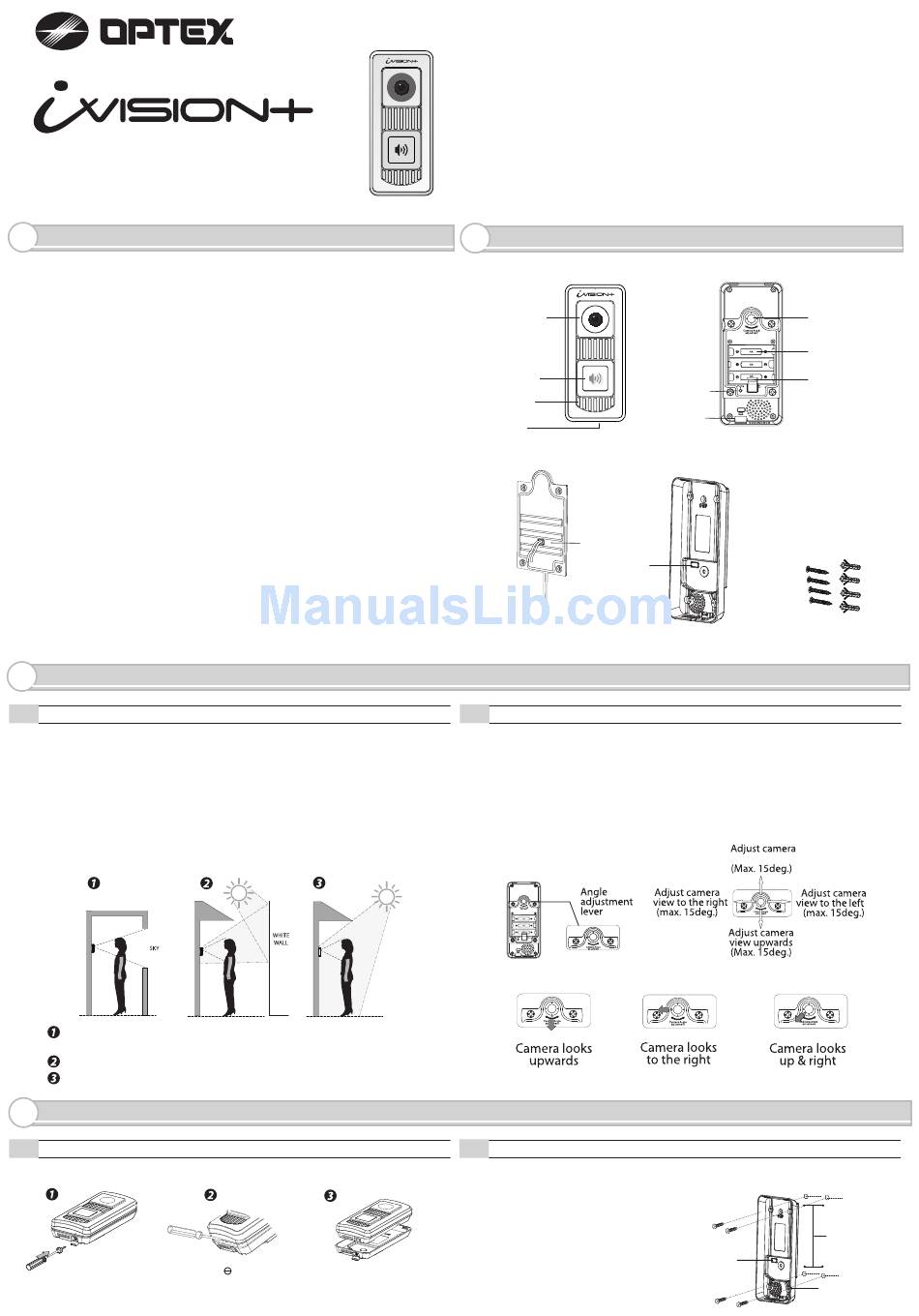

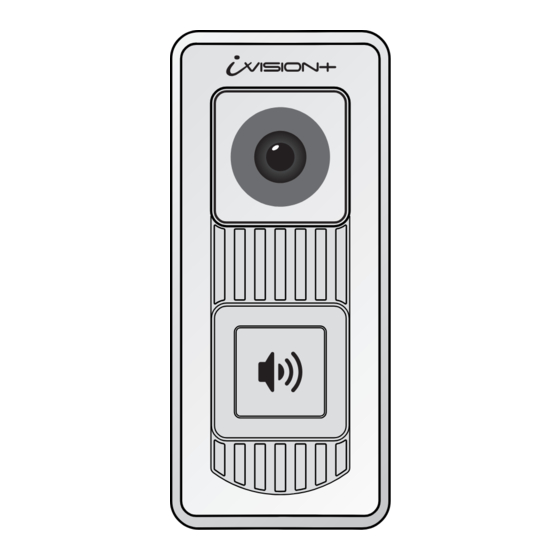

Camera Lens
Push Button
Microphone
Speaker
Door Camera Unit (Front)
Cable Hole
Knock Out
Battery Cover
3-2
Position and Field of View
IVP-DU (Door Camera Unit) should be mounted at a position where visitors or
potential trespassers can be captured in the camera's field of view. In a typical
setting, IVP-DU is positioned at height between 3.6 -5 feet off the ground.
Camera Angle Adjustment Lever can shift the camera's field of view
max +/- 15 degrees to any combination of vertical and horizontal directions.
4-2
Fixing the Base
Fix the mounting base on the wall at the height and location selected.
NOTE: When using an external
power source, make a knockout
hole on the Mounting Base before
fixing to a wall. Place the Mounting
Base on a horizontal surface front
side down. Point a driver in the
center of the knock out and apply
gentle impacts to break a hole through.
Camera Angle
Adjustment Lever
Battery
Compartment
External Power Input
Pairing Button
10 24
Fixing Screw
Door Camera Unit (Back)
Wall Mounting Base Screws & Anchors
view downwards
Mounting
Screws
Knock Out
Holes
drilled in wall
Wall Mounting
Base
