Optex iVision Plus IVP-DU Installation Instructions Manual

•
�!�!��
IVP-DU (Door Camera Unit)

Installation Instructions

IMPORTANT NOTICE
rapid temperature change, high humidity, constant moisturization may cause the
unit to malfunction.
Operations under harsh environments
such as TVs, Radios, PCs, Microwave ovens or any other device
with an electric motor may cause the unit to malfunction.
Electronic device
can cause severe damage to the unit. Please handle the unit
with care and operate without exerting strong forces.
Impact or shocks
of communication between units may decrease under
the following conditions.
- Any unit is installed on a metal surface.
Transmission range
- Presence of reinforced concrete, steel doors or other metal construction
materials between units.
- Places near strong radio sources such as broadcast stations or substations.
is critical to optimize image quality captured by the unit.
Images will be impaired if the ambient backlight is very strong.
Please study the installation environment according to this installation instruction.
Location of Installation
- The video image is displayed in color during daytime or in well-lit area, but it is
displayed in black and white at night or in a dark area.
may not be mixed.
for !VP-DU. Leakage or possible explosion can occur.
- When Door Camera Unit Low Battery Indicator blinks on HU l ,
Old and new batteries
please replace batteries.
CHOOSING LOCATION
3-1
Places to Avoid
The performance of the system may be affected when mounting the unit in the
following environments.
- Places that are constantly experiencing vibrations or shocks.
- Near a source of hydrosulfuric fumes, phosphorus fumes, ammonia, sulphur,
carbon dust and any acidic or noxious materials.
- An enclosed space that may cause sounds to echo
- Where rain or water may directly hit the unit.
Please also note that the video image may be seriously impaired where the camera
faces directly into the sun, and also in the following situations.
0
. . . · ·
1
Location where the background is primarily occupied by the sky, such as in
-
the upper floor of an apartment building.
O
Location which has an adjacent white wall that will directly reflect sunlight.
Location that receives direct bright sunlight.
€) 6
4. INSTALLATION
4-1 Unit Preparation
Remove the main unit from the mounting base
�
�n� screw cover Insert a
and loosen the screw. a small cavity on a rim to
Pull out the screw for pop up the main unit.
a quarter of an inch
(6mmJ.
-+-
such as out of warranted temperature,
batteries
Do not use lithium
· · i · 1
·
--
-
.......
....... .
€)
�
�
e
driver into Lift the main unit
from the mounting base.
Thank you for purchasing the iVISION+ wireless video intercom.
Before installation and usage, please read this instruction manual thoroughly
ATTENTION:
and keep this safe for future reference.
Adjustable Camera Angle
IVP-DU features
Battery Operation Capability (for 1 year* l )
Auto Day(Color) / Night(IR) Vision
Max 2 Units in a System
Fluorescent Push Button
AC/DC (10N24V) Adaptable
Splash Proof for Rain and Outdoor Condition* 2
*1 calculation based on operations for lOsec times 3 activations per a day
*2 IPX4 Operating Temparature -20 to SO degC (·4 F to 122 degF)
2. PARTS IDENTIFICATION
Camera Lens
Push Button
Pairing Button
Microphone
Speaker

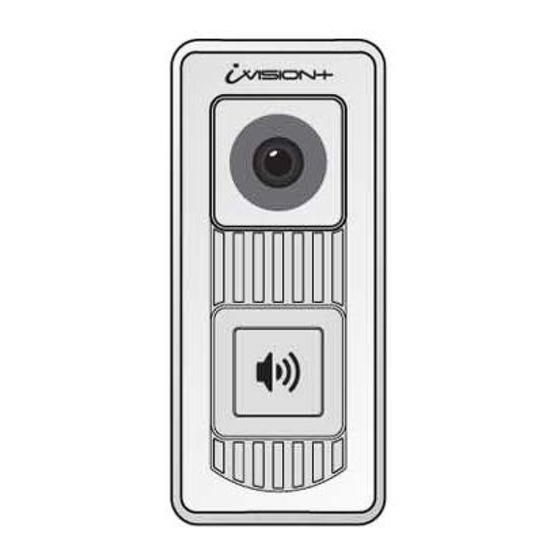

Door Camera Unit (Front)
Battery Cover Wall Mounting Base
3-2
Position and Field of View
!VP-DU (Door Camera Unit) should be mounted at a position where visitors or
potential trespassers can be captured in the camera's field of view. In a typical
setting, !VP-DU is positioned at height between 3.6 -5 feet off the ground.
Camera Angle Adjustment Lever can shift the camera's field of view
max+/- 15 degrees to any combination of vertical and horizontal directions.
Angle
Adjust camera
adjustment
view to the
lever
(max. 1 Sdeg.)
Camera looks
Camera looks
to the right
upwards
4-2
Fixing the Base
Fix the mounting base on the wall at the height and location selected.
NOTE: When using an external
power source, make a knockout
hole on the Mounting Base before
fixing to a wall. Place the Mounting
Base on a horizontal surface front
side down. Point a driver in the
center of the knock out and apply
gentle impacts to break a hole through.
Camera Angle
Adjustment Lever
Battery
Compartment
External Power Input
Door Camera Unit (Back)
Screws & Anchors
Adjust camera
view downwards
(Max. 1 Sdeg.)
1
Adjust camera
ri g ht � view to the left
f
(max. 1 Sdeg.)
Adjust camera
view upwards
(Max. 1 Sdeg.)
Camera looks
up & right
Mounting
Screws
t�ole s
I
.,,--;;,; drilled in wall
Wall Mounting
Base
