Optex iVision+ IVP-HU Installation Instructions And Operators Manual

Wireless Video Intercom
IVP-HU
(Handheld Monitor Unit)

Installation Instructions

1.
IMPORTANT NOTICE
Operations under harsh environments such as out of warranted temperature,
rapid temperature change, high humidity, constant moisturization may cause the
unit to malfunction.
Electronic device such as TVs, Radios, PCs, Microwave ovens or any other device
with an electric motor may cause the unit to malfunction.
Impact or shocks can cause severe damage to the unit. Please handle the unit
with care and operate without exerting strong forces.
Transmission range of communication between units may decrease under
the following conditions.
- Any unit is installed on a metal surface.
- Presence of reinforced concrete, steel doors or other metal construction
materials between units.
- Places near strong radio sources such as broadcast stations or substations.
2.

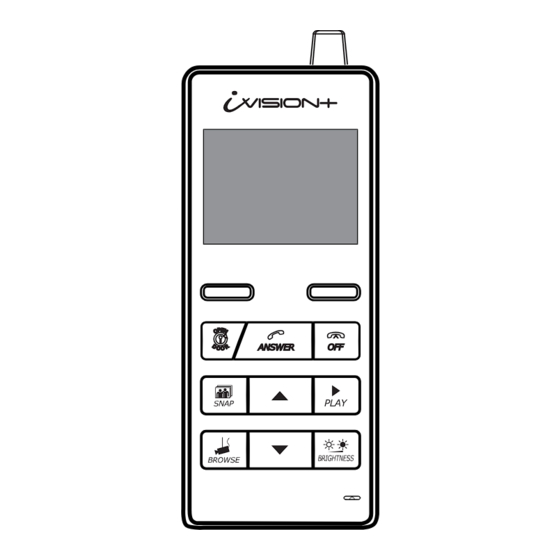

PARTS IDENTIFICATION

LCD display
LEFT function key
"OPEN DOOR"
"SNAP"
"BROWSE"
Scroll buttons
( UP/ DOWN)
Handheld Monitor Unit
3.
CHOOSING LOCATION
The performance of the iVISION+ system is dependent on the radio frequency
environment and distances between devices. Following materials may decrease
the maximum transmission distance and may cause the Handheld Monitor Unit
inability to respond to incoming signals.
• Metal barricades such as ,metal doors and shutters.
• Walls with aluminium foil insulation.
• Concrete or galvanized metal walls.
The effective communication range is around 300ft (100m) in an open air condition
(line of sight). This range will be significantly reduced by the number and thickness
of walls through which the signal is required to pass. Please keep to a minimum
number of walls wherever possible.
Handheld Monitor Units use 2.4GHz radio frequency. Any electrical appliance may
become a potential cause for malfunction. Please avoid using the Handheld Monitor
Unit near microwave oven or any electrical devices with similar radio frequency.
5.
POWERING THE UNIT
CAUTION
Please use the included battery pack and a power adaptor only.
Do not disassemble or attempt to use alternative battery packs.
RIGHT function key
"ANSWER"
"OFF"
"PLAY"
"BRIGHTNESS"
Microphone
USB connection port
1. Connect Battery pack
ATTENTION:
Thank you for purchasing the iVISION+ wireless video intercom.
Before installation and usage, please read this instruction manual thoroughly
and keep this safe for future reference.
IVP-HU features
2.4 inch TFT LCD Monitor
Wall-mountable Cradle
Max 4 Units in a System
micro-USB port to PC connection
Manual/Auto Talk Switching
Avoid using the Handheld Monitor Unit in the following areas
- Close to a fire, thermal appliance or other source of extreme heat/cold.
- Within 10ft (3m) of a television, microwave oven, personal computer, wireless
LAN equipment, wireless audio/visual equipment - the radio frequency waves
emitted by these devices can affect operation.
- In direct sunlight.
- Where extreme fluctuations in temperature can occur - if moving the unit from
a warm to cold environment, or vice versa, please allow 30 minutes before use.
Privacy & portrait/image rights
- Please respect the privacy and image rights of others when using this
equipment. By using this equipment the user assumes total responsibility in
upholding these rights.
- Images stored must not be used for any purpose other than that for which the
equipment is designed.
- Images should be deleted once no longer required.
Speaker
Pairing button
Battery Pack Compartment
4.
INSTALLATION
Handheld Monitor Unit must be set on Charging Cradle to retain its power while
iVISION+ system is not in operation. The Charging Cradle can either be free-standing
on a horizontal surface or be mounted on a wall as described below.
2. Connect AC adapter
to Charging Cradle
to the main unit.
Charging Cradle
Battery Cover
Battery Pack
3. Press and hold "OFF"
button to power on.
Set the unit onto
the cradle for charging.
AC Adaptor
Mounting Screw
