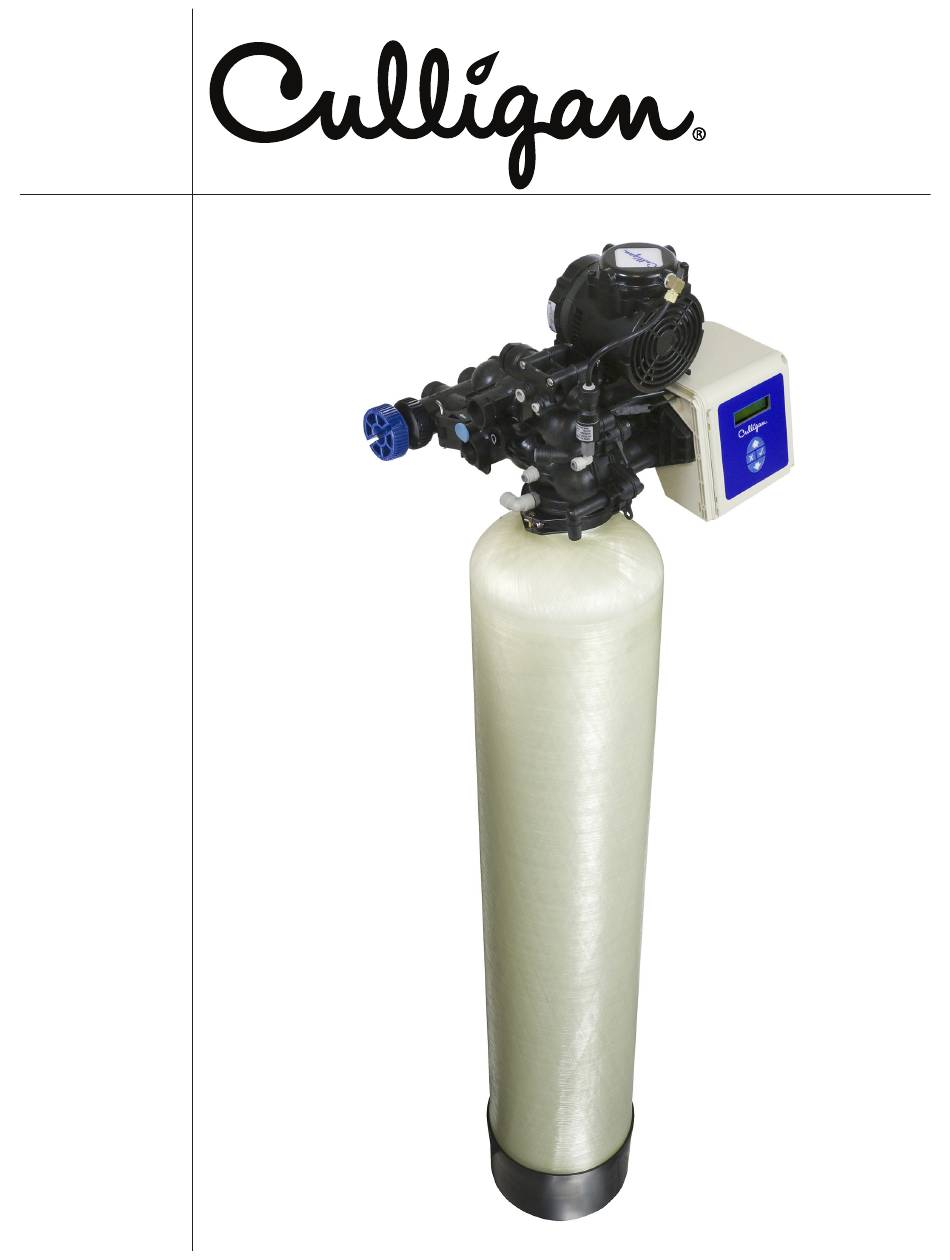

- Page 1 Culligan® High Efficiency Sulfur-Cleer Water Filter Owners Guide 01023492_RevF 190422 06/19 ©2019 Culligan International Company...
- Page 2 United States and other countries. Culligan reserves the right to change the specifications referred to in this literature at any time, without prior notice. Culligan, AquaSensor, Tripl-Hull, and SoftMinder are trademarks of Culligan International Company or its affiliates.
-
Page 3: Table Of Contents
Care and Cleaning of Your Water Conditioner ..................15 Preventive Maintenance ...........................16 Regeneration ............................17 When and How to Bypass Your Water Filter ....................19 Things to Check Before You Call for Service....................20 Performance Data Sheet ..........................22 Records and Data.............................23 Culligan Limited Warranty ........................24 01023492 F 06/19... -
Page 4: About This Manual
• Gives specifications Read this Manual First Before you operate the Culligan High Efficiency Sulfur-Cleer Water Filter, read this manual to become familiar with the device and its capabilities. Safe Practices Throughout this manual there are paragraphs set off by special headings. -
Page 5: Thank You
Congratulations, too, on selecting one of the “first family” of water treatment in the prestigious Culligan High Efficiency Water Filters. With Culligan’s many years of knowledge and experience in water treatment, you can be confident that the model you selected has been designed and engineered to provide years of service with a minimum of care and attention. -
Page 6: Specifications
Specifications 10" Fiberglass 10" Quadrahull Control Valve HE Control Valve HE Control Valve Timer Electronic Electronic Overall Conditioner Height 69" 69" Media Tank Dimensions (D x H) 10x54 in. 10x54 in. Filter Media Type 1.5 ft Catalytic Carbon 1.5 ft Catalytic Carbon Underbedding Cullsan, 20 lbs. -
Page 7: Introduction
Introduction Culligan® High Efficiency Sulfur-Cleer™ is designed to meet the needs of applications for high quality water. This manual contains important information about the unit, including information needed for installation, operating, and maintenance procedures. A troubleshooting section provides a guide for quick and accurate problem solving. - Page 8 Step 2 Aeration Operation Air Recharge Cycle When energized, the air pump sends air through the solenoid valve into one end of the shuttle valve. Once air pressure in the shuttle valve is greater than the water supply pressure at the other end of the shuttle valve, the piston shifts to the open position.
- Page 9 Alkalinity—A minimum alkalinity of 100 ppm is required for efficient removal of iron and hydrogen sulfide. Hydrogen Sulfide—Often referred to as the rotten egg smell, hydrogen sulfide will be reduced significantly on water supplies less than 8 ppm as tested by Culligan. Consult the factory if hydrogen sulfide concentrations are greater than 8 ppm.
-
Page 10: Navigating The Menus And Keypad
Navigating the Menus and Keypad UP button CHECK MARK CANCEL (X) button or OK button DOWN button UP ARROW button: scrolls up the menu DOWN ARROW button: scrolls down the menu CHECK MARK button: selects the highlighted option, opens a new screen, or accepts a Controller changed setting CANCEL or X button: returns to the previous... -
Page 11: Information
Information The following information can be displayed at the control valve or remote display. These settings are read-only. Press to scroll through the settings. Press to view the previous setting. Screen Display Range Setting Description FILTERING From the HOME screen, press to view the main menu. - Page 12 Screen Display Range Setting Description 10. The screen the total water used for this configuration. TOTAL WATER USED 0–no Whole numbers are displayed above 100 gallons. limit 1000 GAL Press to see the next information screen. 11. The screen displays the local dealer’s ID number as DEALER ID entered during the First Time Setup.
-
Page 13: Setting The Date And Time
Setting the To update the date and time on the HE Filter, follow this procedure. Date and Time Screen Display Range Setting Description FILTERING 15. Start at the HOME SCREEN. Press to advance JAN-01-19 11:19A to the MAIN MENU SCREEN. to scroll to 3) SET DATE/TIME. - Page 14 Screen Display Range Setting Description Set Clock Type Press to advance to the next setting if the clock type is 12 or 24 CLOCK TYPE correct, or press and then to change the clock type >12 HR setting (leave at default setting, 12 hour). Press to accept the new value.
-
Page 15: Care And Cleaning Of Your Water Conditioner
DANGER! If your unit should freeze, do not attempt to disassemble it. Call your Culligan Dealer. Important: Culligan water filters are sold for use on potable water, only. If at any time the water becomes contaminated, such as during a “boil water” situation, the operation of the water filter should be discontinued until it is verified that the water is again potable. -
Page 16: Preventive Maintenance
This Culligan Sulfur-Cleer™ water filter has been designed to provide a good, consistent service life. Because of the nature of problem water, we recommend that the local Culligan dealer provide regular maintenance/service contracts for the proper operation of your systems. The water filter service begins with a multi-point inspection of your water filter system in an effort to uncover any and all problems that may exist. -
Page 17: Regeneration
Regeneration There are several conditions that will cause the control to trip a regeneration. The screen displays REGEN TONITE when the control has signaled for a regeneration. REGENERATING is displayed while the control is in regeneration. The following are conditions that will call for regeneration: When the Soft-Minder®... - Page 18 Standard Manual Regeneration Screen Display Range Changing the Setting This is the HOME SCREEN. Filtering Press any button except to advance JAN-01-19 12:01P to the MAIN MENU SCREEN. 1)INFORMATION Press to 2)MANUAL MODE then press 1–6 >2)MANUAL MODE The screen displays the Manual Mode settings. Press to change the setting.
-
Page 19: When And How To Bypass Your Water Filter
If you are going away on vacation and do not want the unit to recharge. Bypass Valve In the back of Culligan water filter is a Cul-Flo-Valv® Bypass valve. To bypass the unit, turn the blue knob clockwise. To return to soft water service, turn the blue knob counter-clockwise. -
Page 20: Things To Check Before You Call For Service
(outside tap) to see if you have any water pressure. If you have water pressure, check the bypass valve. If it is in the Service position, put it into the bypass and call your Culligan dealer for service. - Page 21 If the error still exists, the home screen displays PROBLEM FOUND. If the error no longer exists the screen displays SYSTEM OK. -->GO TO MENU Contact your local Culligan dealer 01023492 F 06/19...
-
Page 22: Performance Data Sheet
Performance Indicator: If water flow decreases or a noticeable odor returns, the filter should be reconditioned. If conditions do not improve, contact your local Culligan dealer. He can determine if your filter requires servicing. Regeneration Frequency: Regeneration frequency will vary depending upon water conditions. -
Page 23: Records And Data
Records and Important Data on Your Water Filter Data It is advisable to have the salesperson or installer fill in the information below for your future reference. If this has not been done, please ask for it, as it is nec es sary if you contact your dealer. Identification Model Name ��������������������... -
Page 24: Culligan Limited Warranty
If a part described above is found defective within the specified period, you should notify your in de pen- dent ly operated Culligan dealer and arrange a time during normal business hours for the dealer to in- spect the water conditioner on your premises. Any part found defective within the terms of this warranty will be re paired or replaced by the dealer. - Page 25 Notes 01023492 F 06/19...
