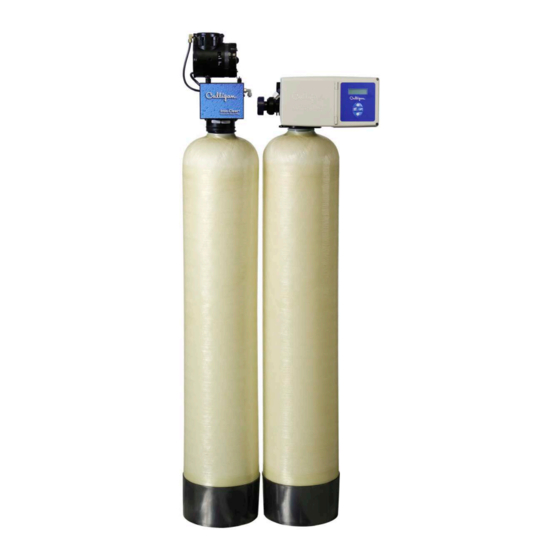

Culligan Iron-Cleer 10" Owner's Manual

High efficiency water filter
Hide thumbs Also See for Iron-Cleer 10":
Table of Contents

Advertisement

Quick Links

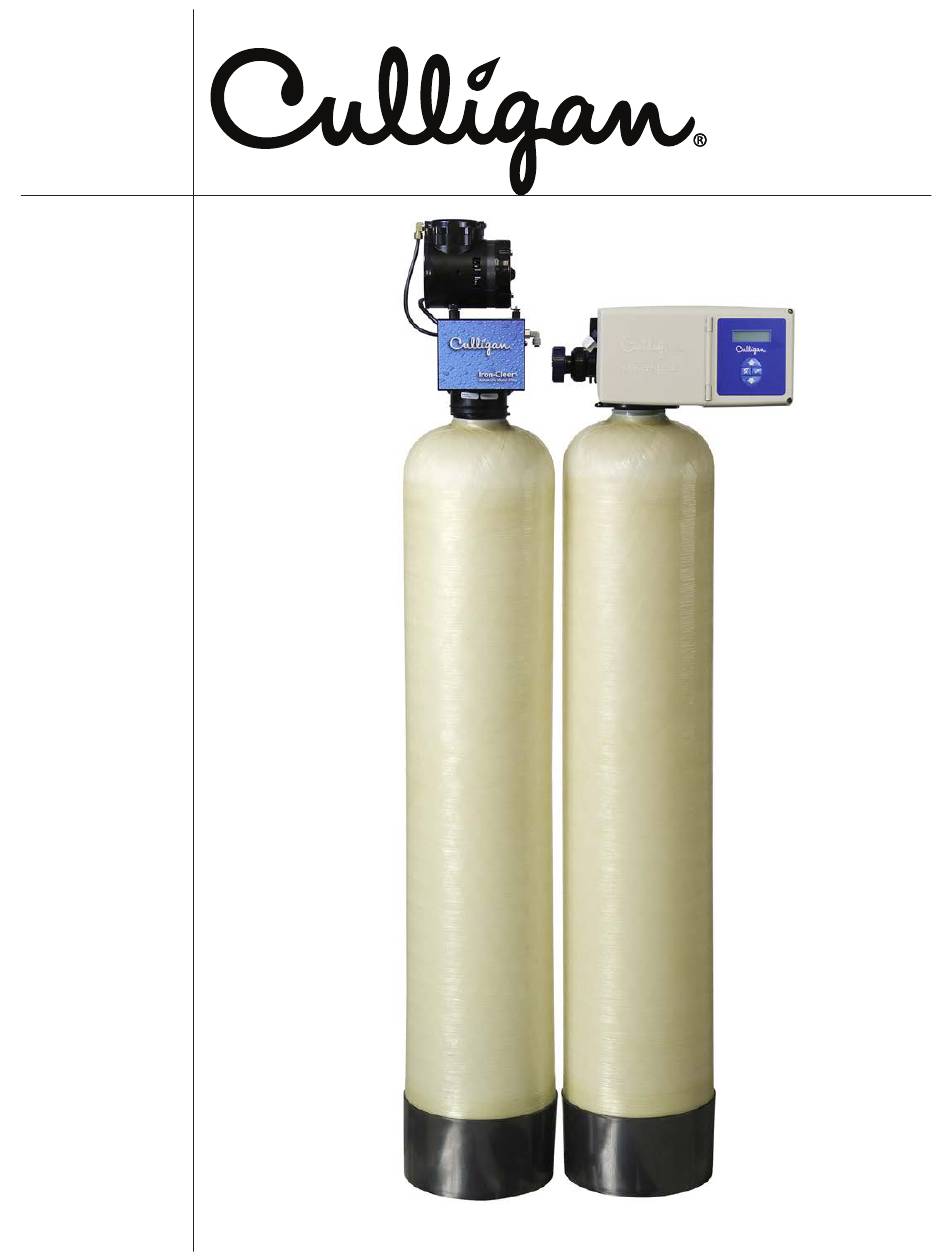

Culligan
®
High
Efficiency
Iron-Cleer
Water Filter
Owners
Guide
01023188_RevF
DCO 190427 09/19
©2019 Culligan International Company

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Iron-Cleer 10" and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Culligan Iron-Cleer 10"

Summary of Contents for Culligan Iron-Cleer 10"

  • Page 1 Culligan ® High Efficiency Iron-Cleer Water Filter Owners Guide 01023188_RevF DCO 190427 09/19 ©2019 Culligan International Company...
  • Page 2 United States and other countries. Culligan reserves the right to change the specifications referred to in this literature at any time, without prior notice. Culligan, AquaSensor, Tripl-Hull, and SoftMinder are trademarks of Culligan International Company or its affiliates.

  • Page 3: Table Of Contents

    Set Date and Time .............................13 Programming .............................15 Conditioning...............................17 Error Codes ...............................19 When and How to Bypass Your Water Filter .....................20 Things to Check Before You Call for Service.....................21 Performance Data Sheet ...........................22 Culligan Limited Warranty .........................23 Records and Data............................24 01023188 F 09/19...

  • Page 4: About This Manual

    Read this Manual First Before you operate the Culligan High Efficiency Iron-Cleer Water Filter, read this manual to become familiar with the device and its capabilities. Installation or maintenance done on this system by an untrained service person can cause major damage to equipment or property damage.

  • Page 5: Thank You

    Thank You Welcome To Your New World of Better Living with Culligan Water. The Culligan High Efficiency (HE) Iron-Cleer® filter has been tested and certified by WQA against NSF/ANSI Standard 372, CSA B483.1, and NSF/ANSI Standard 42 for the effective reduction of iron up to 1,400 gallons for the 10”...

  • Page 6: Specifications

    ² Measure from top of media bed to top of inlet fitting. ³ Hydrogen sulfide will be reduced significantly in water containing less than 5 ppm as tested by Culligan. ⁴ Max flow rates and pressure drop characteristics have not been validated by the Water Quality Association or IAPMO R&T.

  • Page 7: Introduction

    Advantages Over Other Systems Introduction No chemicals or salt. No air injectors, venturis, or micronizers. No floats to regulate air volume in aeration tank which “foul” from iron. Two-tank system consisting of a pressurized aeration tank and multi-media depth filter. 110V aeration pump to recharge aeration tank.

  • Page 8: How Your Water Filter Works

    How your Water Filter Works CAUTION! The Iron-Cleer system must be supplied with cold water only. Step 1 Aeration Operation Service Cycle Shuttle Solenoid Valve In the service cycle, raw water enters the inlet port of the aeration tank Valve and is directed through the inlet diffuser.
  • Page 9 Shuttle Valve Operation In the service position, water pressure holds the shuttle valve piston in the closed position, trapping the airhead in the aeration tank and closes the air recharge inlet port and drain port. During air recharge cycle, air pressure is greater than the water pressure and forces the shuttle valve piston in the open piston.

  • Page 10: Operating Conditions

    Operating The concentration limits listed below reflect the maximum individual limit that each contaminant was tested for separately without any interference of other contaminants in the influent water. Conditions In reality, however, we know that these contaminants may be present in combination which may limit the filter’s ability to remove these contaminants in higher concentrations.

  • Page 11: Location And Placement

    Location and Placement Unfiltered Water to Filtered Non- Outside Hosebibs Softened Water Softened and Water Filtered Water Drain Lines Air Gap Air Gap = (2x Pipe Diameter or 1” whichever is larger) Iron-Cleer Iron-Cleer Water Aeration Brine Filter Tank Softener Tank Tank Figure 3.

  • Page 12: Navigating The Menus And Keypad

    Navigating the Menus and Keypad UP button CHECK MARK CANCEL (X) button or OK button DOWN button UP ARROW button: scrolls up the menu DOWN ARROW button: scrolls down the menu CHECK MARK button: selects the highlighted option, opens a new screen, Controller or accepts a changed setting CANCEL or X button: returns to the...

  • Page 13: Set Date And Time

    Set Date To update the date and time on the HE Filter, follow this procedure. and Time Screen Display Range Setting Description Start at the HOME SCREEN. FILTERING Press to advance to the MAIN MENU SCREEN. JAN-01-18 11:19A Press to scroll to 3) SET DATE/TIME. 2)MANUAL MODE Press to display the date and time settings.
  • Page 14 Screen Display Range Setting Description Set Clock Type 12 or 24 Press to advance to the next setting if the clock type CLOCK TYPE is correct, or press and then to change the clock type setting (leave at default setting, 12 hour). >12 HR Press to accept the new value.

  • Page 15: Programming

    Programming The following information can be displayed at the control valve or remote display. These settings are read-only. Press to scroll through the settings. Press to view the previous setting. Screen Display Range Setting Description From the HOME screen, press FILTERING to view the main menu.
  • Page 16 Screen Display Range Setting Description 0–no 10. The screen the total water used for this configuration. limit Whole numbers are displayed above 100 gallons. TOTAL WATER USED Press to see the next information screen. 1000 GAL 11. The screen displays the local dealer’s ID number as entered during the First Time Setup.

  • Page 17: Conditioning

    Conditioning There are several conditions that will cause the control to trip a conditioning cycle. The screen displays REGEN TONITE when the control has signaled for a conditioning cycle. REGENERATING is displayed while the control is conditioning. The following are conditions that will call for conditioning: When the Soft-Minder®...
  • Page 18 Standard Manual Conditioning Screen Display Range Changing the Setting This is the HOME SCREEN. Press any button Filtering except to advance to the MAIN MENU SCREEN. JAN-01-18 12:01P Press to 2)MANUAL MODE then press 1–6 1)INFORMATION The screen displays the Manual Mode settings. >2)MANUAL MODE Press to change the setting.

  • Page 19: Error Codes

    If the error still exists, the home screen displays PROBLEM FOUND. If the error no longer exists the screen displays SYSTEM OK. Contact your local Culligan Dealer. -->GO TO MENU 01023188 F 09/19...

  • Page 20: When And How To Bypass Your Water Filter

    If you are going away on vacation and do not want the unit to recharge. Bypass Valve In the back of Culligan water filter is a Cul-Flo-Valv® Bypass valve. To bypass the unit, turn the blue knob clockwise. To return to soft water service, turn the blue knob counter-clockwise.

  • Page 21: Things To Check Before You Call For Service

    Things to If you unexpectedly experience changes in your water, make these simple checks before calling your Culligan deal er. One of the following conditions may be the reason for your interruption of service. Check Before You Call for Important...

  • Page 22: Performance Data Sheet

    Culligan knows the more informed you are about your water treatment systems, the more confident Performance you will be about its performance. It’s because of this and more than seventy years of commitment Data Sheet to customer satisfaction that Culligan is providing this Performance Data Sheet to its customers.

  • Page 23: Culligan Limited Warranty

    If a part described above is found defective within the specified period, you should notify your independent ly operated Culligan dealer and arrange a time during normal business hours for the dealer to inspect the water filter on your premises. Any part found defective within the terms of this warranty will be re paired or replaced by the dealer.

  • Page 24: Records And Data

    Records Important Data on Your Water Filter and Data It is advisable to have the salesperson or installer fill in the information below for your future reference. If this has not been done, please ask for it, as it is nec es sary if you contact your dealer. Identification Model Name Catalog No.
  • Page 25 Notes 01023188 F 09/19...
