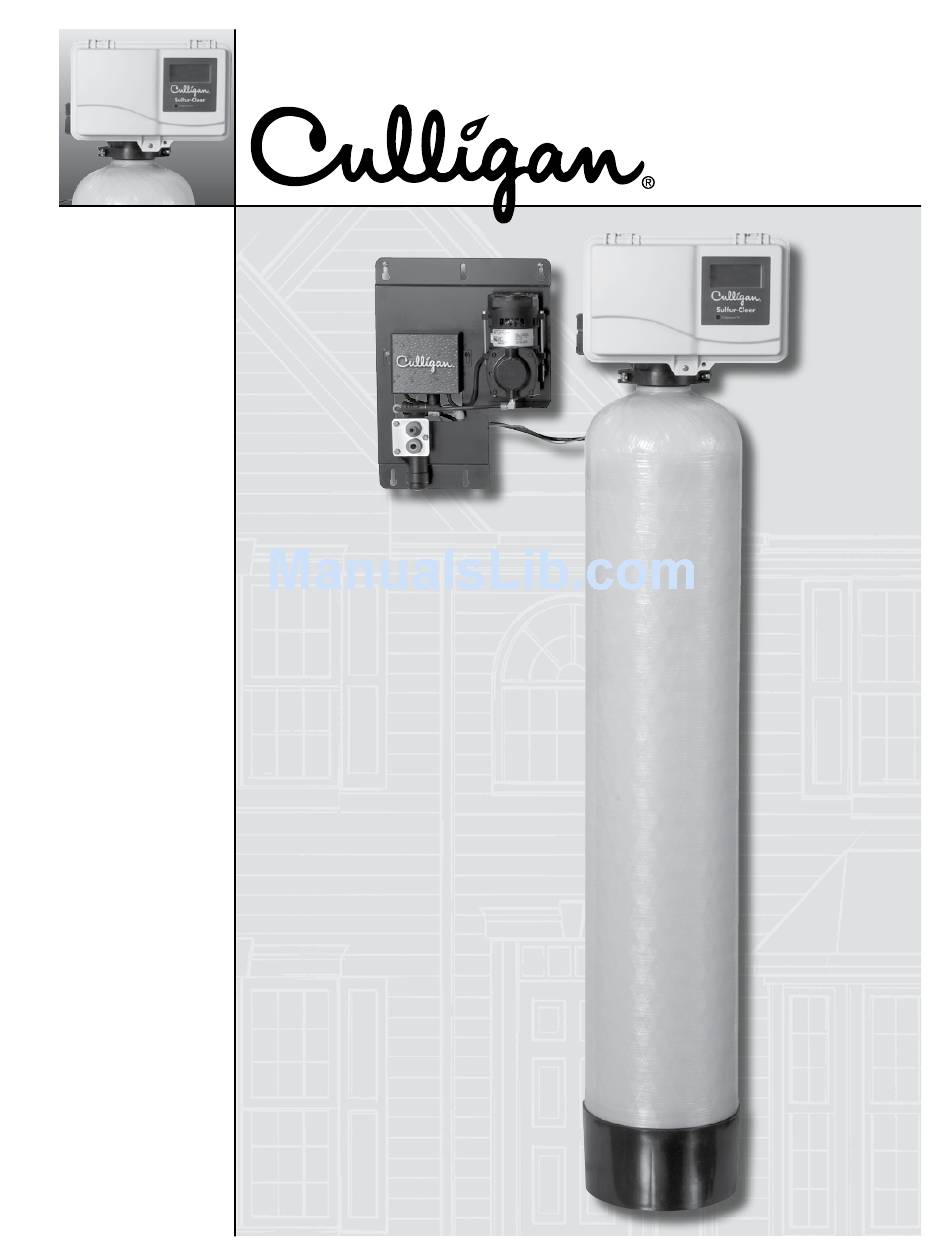

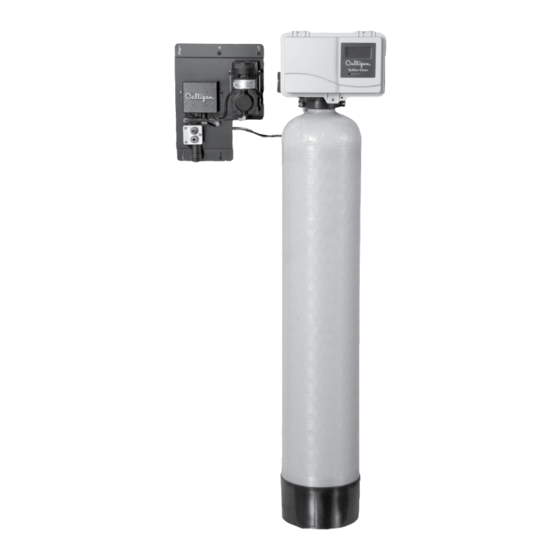

- Page 1 Culligan ® Sulfur-Cleer ™ Automatic Water Filter Owners Guide...
- Page 2 We promise that you’ll never want to be without it again. Congratulations, too, on selecting one of the “first family” of water filters in the prestigious Culligan Sulfur-Cleer™. With Culligan’s many years of knowledge and experience in water treatment, you can be confident that the model you selected has been designed and engineered to provide years of service with a minimum of care and attention.
-
Page 3: Table Of Contents
Specifications ..........1 Introduction . - Page 4 This page intentionally left blank.
-
Page 5: Specifications
Culligan 10” Sulfur-Cleer ® Control Valve ........1” 5-cycle reinforced thermoplastic Timer . -
Page 6: Introduction
Introduction Operation Step 1. Service Cycle In the service cycle, raw water enters the inlet port of the media tank. The oxidation process begins. This air/water contact oxidizes the iron and hydrogen sulfide in the water. Oxidized iron particles are trapped by the filter bed as the water passes through. Filtered water enters the lower distributor and travels up the distributor tube to the outlet port on the filter valve. - Page 7 Operation Of Aeration Pump The Sulfur-Cleer™ system introduces air into the media tank and bleeds off the old head of air automatically. The exchange of the air into the media tank is controlled independently of the recharge frequency of the filter media tank, allowing the air to be exchanged on a more frequent basis.
-
Page 8: Operating Conditions
Hydrogen Sulfide — Often referred to as rotten egg odor, hydrogen sulfide will be reduced significantly on water supplies containing less than 5 ppm as tested by Culligan. Consult the factory if hydrogen sulfide concentrations are greater than 5 ppm. -
Page 9: Familiarization
If you live in an area where power outages occur with a regular frequency, a battery backup option is available for ensuring that the time of day is properly maintained. Contact your Culligan Dealer for more information. - Page 10 If you live in an area where power outages occur with a regular frequency, a battery backup option is available for ensuring that the time of day is properly maintained. Contact your Culligan Dealer for more information. Display Program Key Regeneration Information...
-
Page 11: Display Icons
The circuit board controls all of the filter functions. These settings are programmed at the time of installation. The following is a list of all the microprocessor functions, in the event that any of the settings need to be adjusted. Display Icons The display is to be backlit and have the icons as shown. - Page 12 • Meter Factor (Use the default of 80 for meter factor. 80 is the proper setting for the standard Culligan 1” meter.) – This setting is used to determine the number of pulses that are to be counted to represent a set volume of water (IE: gallon or liter).
- Page 13 If any of the days were set to “yes”, the display will show “SETDAY” followed by “SUN”. This selects the current day of the week. The “+” or “-“ key toggles through the days of the week and pressing the “STATUS” key saves the setting and advances to the next programming step.
- Page 14 Programming • Filter Media Life - This setting is available only with flow meter attached. It enables or disables an alert code (CHANGE MEDIA) that (cont.) indicates the end of life for the filter media. The display will show “LIFE” in the left most characters and toggle between “Y” and “N” in the right most character with the “+”...
- Page 15 Auxiliary Output #2 Contact Status / Cycle Number / Cycle Time - This setting is used to control the aux 2 output The aux 2 output is not used on the standard Sulfur-Cleer this menu can be skipped. product, so ™...
-
Page 16: Statistic Functions
10 seconds. The meter factor must be set properly for flow to be recorded accurately. This circuit board has a default meter factor of 80 which is the proper setting for use with Culligan standard 1” meter. • Today’s Water Usage (Meter mode only) - This display will show the accumulated flow of water for the current day. -
Page 17: Bypass Valve
If you are going away on vacation and want to save salt by not having the unit recharge while you’re away. Bypass Valve In the back of Culligan water conditioners is a Cul-Flo-Valv blue knob clockwise. To return to soft water service, reverse the procedure - turn the blue knob counter- clockwise. -
Page 18: Regeneration With Bleach
When bleach is used to regenerate the Sulfur-Cleer service contract with the customer to initiate the regeneration when required. If a service contract is not practical, then Culligan recommends the dealer and the customer strictly abide by the following procedure when regenerating with bleach: •... -
Page 19: Things To Check Before You Call For Service
(outside tap) to see if you have any water pressure. If you have water pressure, check the bypass valve. If it is in the Service position, put it into the bypass and call your Culligan dealer for service. -
Page 20: Preventative Maintenance
The Culligan Sulfur-Cleer Preventative Because of the nature of problem water, we recommend that the local Culligan dealer provide regular Maintenance maintenance/service contracts for the proper operation of your systems. The water filter service begins with a multi point inspection of your water filter system in an effort to uncover any and all problems that may exist. -
Page 21: Troubleshooting Guide
2. Loss of air through air leak. 3. Faulty aeration pump. a. Electrical failure b. Pneumatic failure c. Damp environment 4. Air loss through high demand. 4. Call your Culligan dealer for E. Exceeding 1. Service flow rate demand is recommended higher than filter system design filter system flow flow rate. - Page 22 1. Improper installation not sealing. location. 2. Foreign material preventing check valve. 3. Worn or faulty check valve. 3. Call your Culligan dealer A. Reduced pressure 1. Service flow demand is in distribution system. greater than water supply available from well pump system.
-
Page 23: Troubleshooting
(check plug, breaker, fuse, etc.) 2. Faulty circuit board. 2. Replace circuit board.. 3. Faulty drive motor. 3. Call your Culligan dealer for service. 4. Foreign material lodged in 4. Call your Culligan dealer piston. for service. 1. Low pH condition of the 1. -
Page 24: Performance Data Sheet
Performance Indicator: If water flow decreases or a noticeable odor returns, the filter should be reconditioned. If conditions do not improve, contact your local Culligan dealer. He can determine if your filter requires servicing. Regeneration Frequency: Regeneration frequency will vary depending upon water conditions. -
Page 25: Water Analysis
Important Data on Your Water Filter It is advisable to have the salesperson or installer fill in the information below for your future reference. If this has not been done, please ask for it, as it is necessary if you contact your dealer. Identification Model Name Control Model No. -
Page 26: Warranty
If a part described above is found defective within the specified period, you should notify your inde- pendently operated Culligan dealer and arrange a time during normal business hours for the dealer to inspect the water conditioner on your premises. Any part found defective within the terms of this warranty will be repaired or replaced by the dealer. - Page 27 And that’s who you want taking care of your water. The Culligan Promise At Culligan, we understand that a water quality improvement system is an investment in your family’s well-being. That’s why our 1,350 independently operated dealers worldwide don’t just sell products;...
