Lock Connection

Important Notes:
The factory default jumper setting is set as dry mode. If you want to power the lock
from the panel, you must take the following steps:
1.
Take apart the cover of InBio460Pro. Push the tab inward (see figure 21).
2.
Select the appropriate lock relay and find its jumpers.
3.
Take off the jumpers and change
4.
Connect the lock as show in the diagram, (see figure 23 and 24).

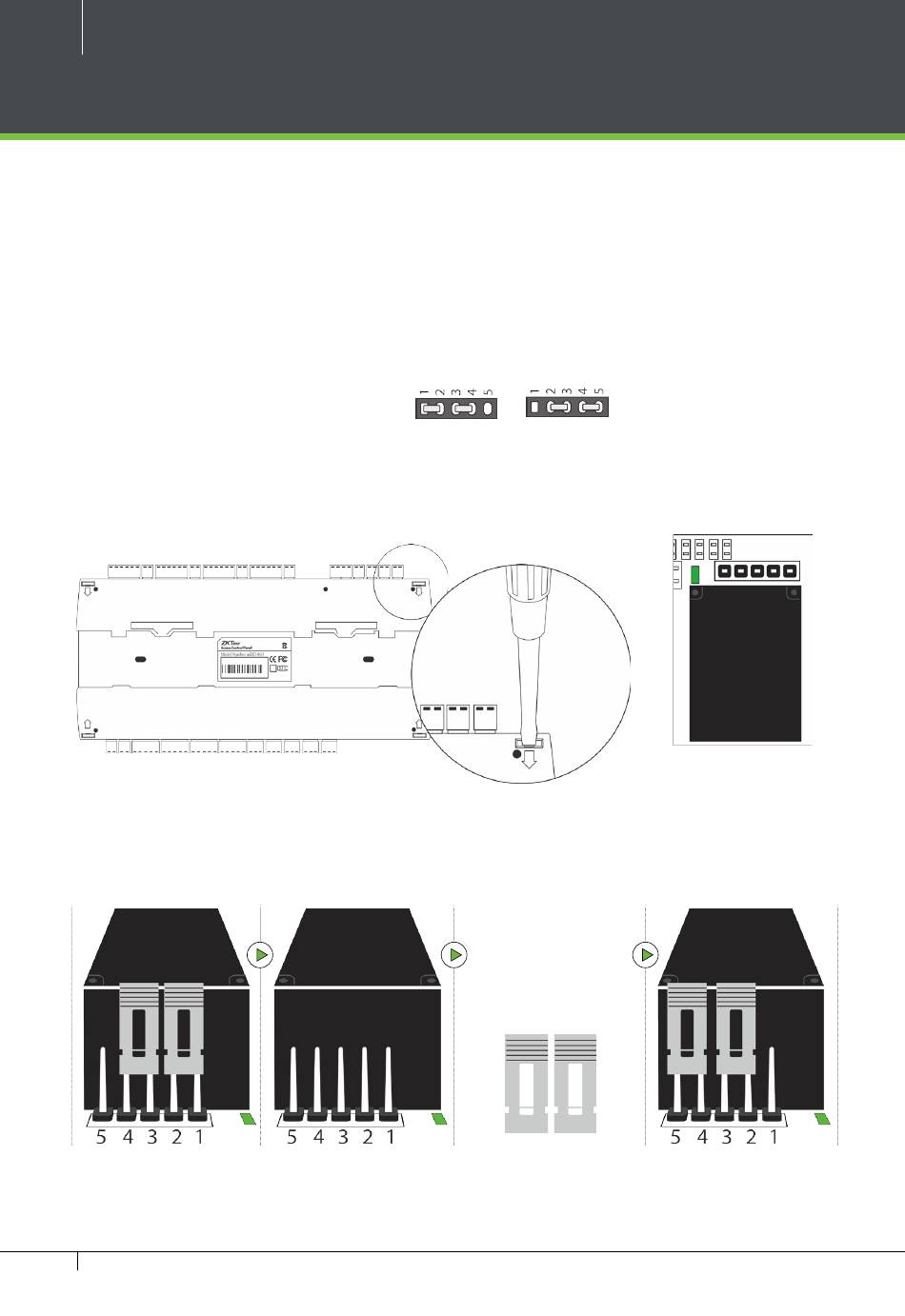

Back of InBio460Pro
Default setting
1, 2 - 3, 4
InBio Pro and ZKBioSecurity 3.0 Quick Start Guide

Switching Dry Contact to Wet Contact

Take off jumpers
to
Figure 20
Jumpers
Figure 21
Select one Relay
Plug Jumpers
2, 3 - 4, 5
