Installation of Panel & Cabinet
Step 1
Pass the cable through holes
State Indicators
We recommend drilling the mounting plate screws into solid wood (i.e. stud/beam). If a
stud/beam cannot be found, then use the supplied drywall plastic mollies (anchors).
InBio Pro and ZKBioSecurity 3.0 Quick Start Guide
Cable Conduit
(Punch Hole for cables)

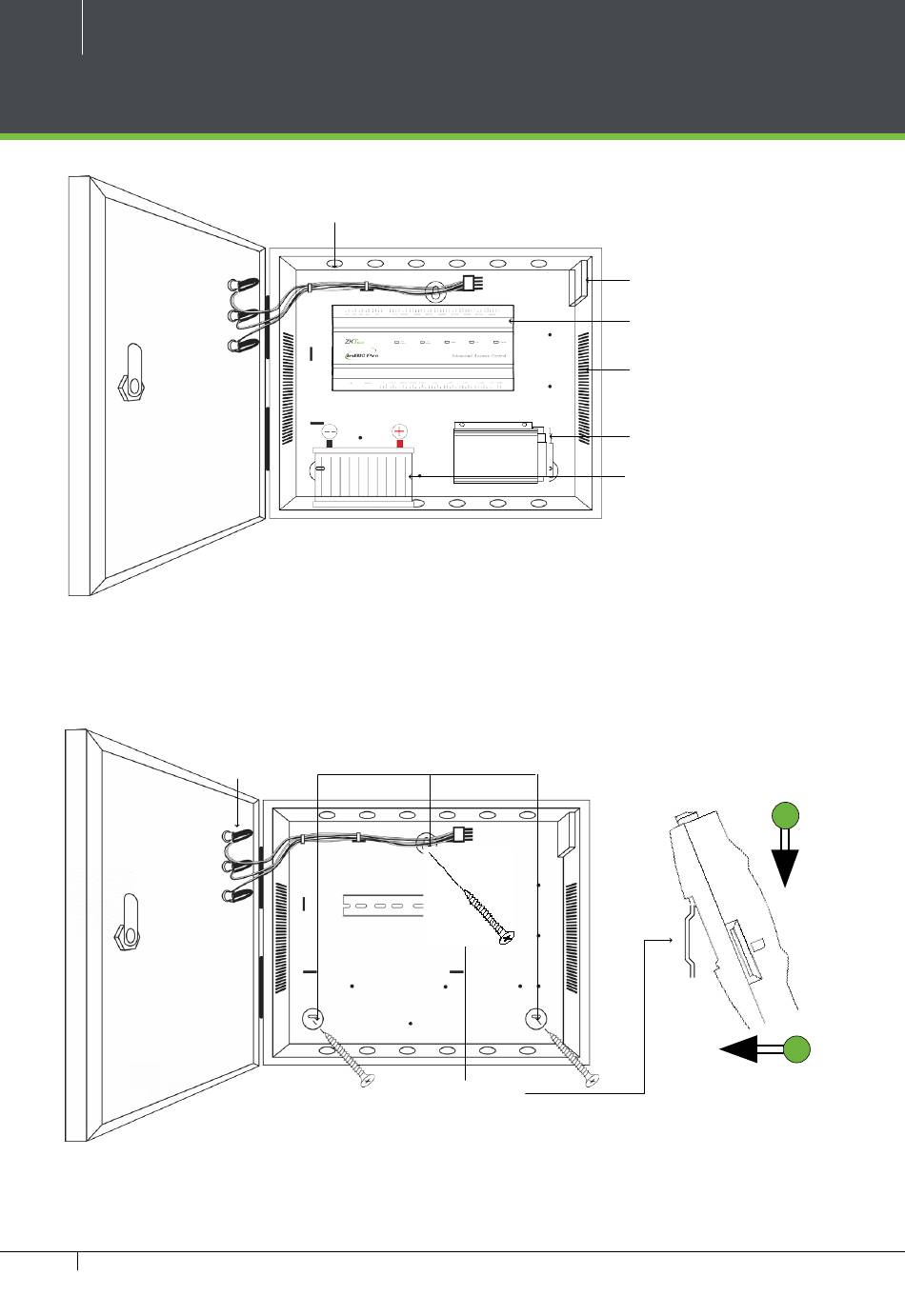

Figure 10
Step 2
Mount the Metal Cabinet
Mounting Holes
Mounting Rail
Figure 11
Temper Switch
InBio Pro Panel
Heat Dissipation Grill
Power Supply
Backup Battery
Step 3
Insert the InBio Pro Panel as it
shown
Inserting Panel to Rail
