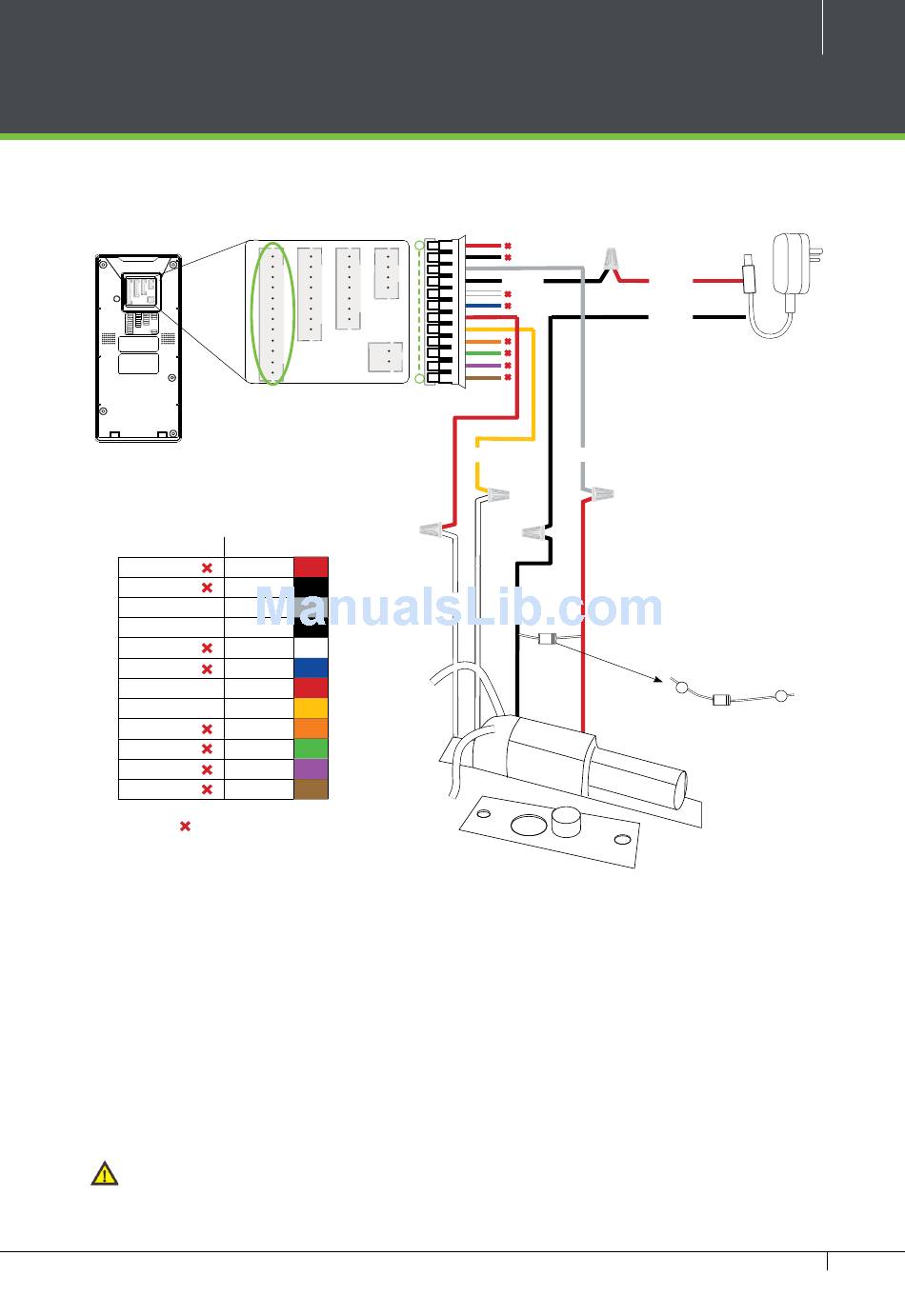

Lock Relay Connection

Device Not Sharing Power with the Lock
485B RJ45-6
485A RJ45-3
RJ45-2
GND
TXD RJ45-1
RXD
GND
WD1
WD0
GND
+12V
DESCRIPTION WIRE
AL+
Red
AL-
Black
NC1 Gray
Black
COM1
NO1
White
BUT Blue
GND Red
Yellow
SEN
BELL+
Orange
BELL-
Green
GND Purple
AUX Brown
Do not use
Notes:
1.
The system supports NO LOCK and NC LOCK. For example the NO LOCK (normally opened
at power on) is connected with 'NO1' and 'COM1' terminals, and the NC LOCK (normally
closed at power on) is connected with 'NC1'and 'COM1' terminals.
2.
When electrical lock is connected to the Access Control System, you must parallel one
FR107 diode (equipped in the package) to prevent the self-inductance EMF from affecting
the system.
Do not reverse the polarities.
1
COM1
12
Sensor
NC1
GND
GND
Normally Closed Lock
ProCapture-T & ProRF-T and ZKBioSecurity 3.0 Quick Start Guide
12V DC
GND
12V DC Adaptor
+
-
FR107
Diode
11
