Installation Manual
Features:
2.4" TFT-LCD color screen
Standard Wiegand Input and Output interfaces are compatible with most all 3
26-bit Wiegand readers and access control panels.
USB HOST port makes offline data backup/management fast & easy.
Relay contacts for alarm, electric lock, exit button, and wired door bell.
Reads fingerprint, Password and card
Specifications:
Fingerprint capacity
Transaction capacity
Hardware Platform
Fingerprint Sensor
Identification speed
Operating Temperature
Operating Humidity
Access control interfaces
F18- Standalone Reader Controller
CPU
Memory
Display
LED Indicator
Communication
Weigand signal
FAR
FRR
Language
Power Supply
Dimensions
201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008
ZK 6001, 400Mhz
64M Flash, 32MSDRAM
ZK optical sensor
2.4" TFT LCD color screen
Ethernet（10/100M）, RS485, USB-
Weigand Input and Weigand Output
English and Spanish
Electric lock, alarm, exit button, wired
3.15* 7.2* 1.65 inches
80*183*42 mm (L*W*D)
www.zkaccess.com
3,000
100,000
ZEM720
Red, Green
HOST,
≤2 sec
≤0.0001%
≤1%
0-45℃
20%-80%
12V DC, 3A
door bell
rd
party
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ZKaccess F18
Summary of Contents for ZKaccess F18

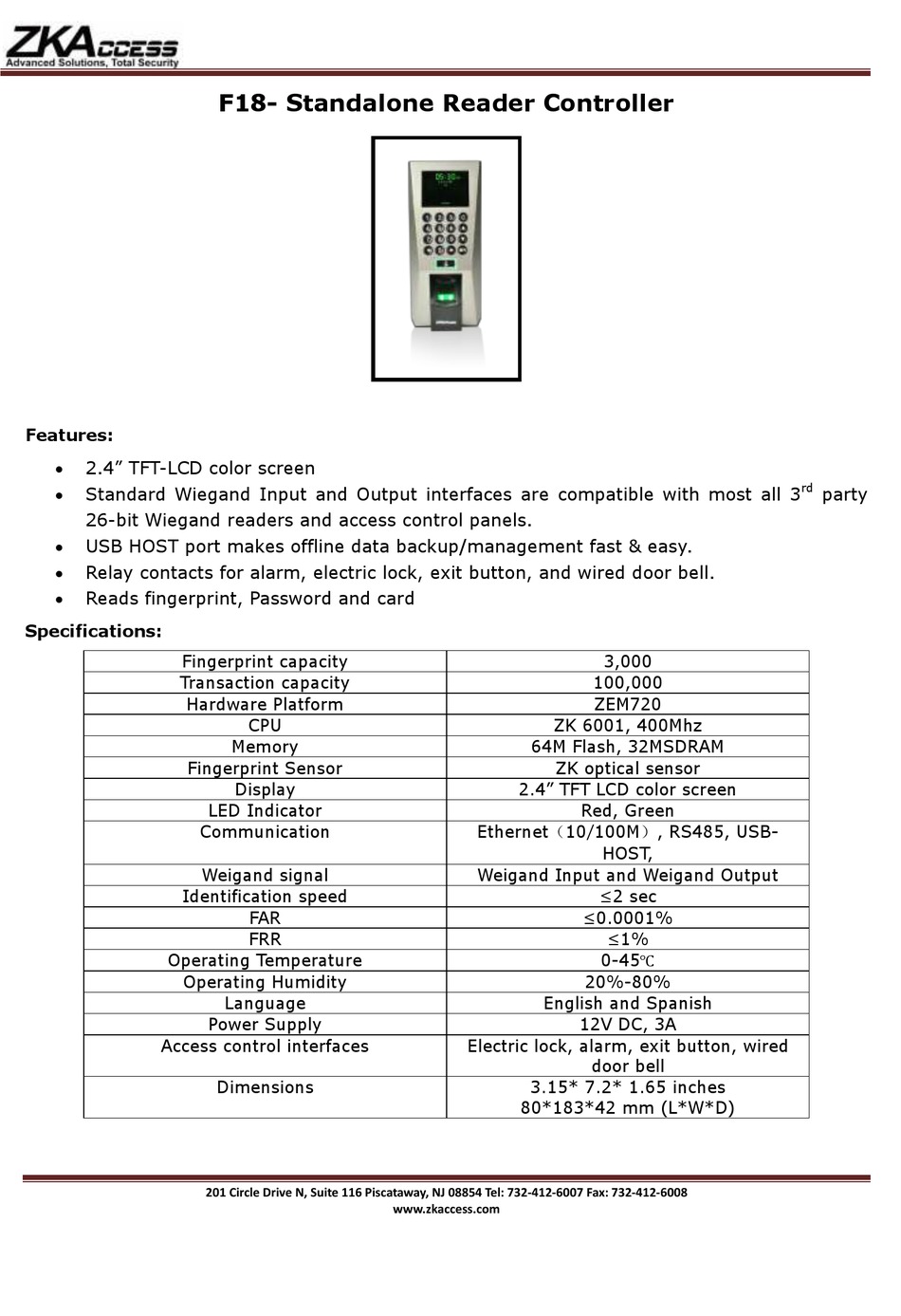

- Page 1 F18- Standalone Reader Controller Features: 2.4” TFT-LCD color screen Standard Wiegand Input and Output interfaces are compatible with most all 3 party 26-bit Wiegand readers and access control panels. USB HOST port makes offline data backup/management fast & easy.
- Page 2 Basic Contents: Wall Mounting Screws and F18 Fingerprint Metallic Mounting Plate Holders Reader Star-shape Screw Driver Star-shape Screw for Mini-USB Cable Mounting Plate Installation Guide Mounting Paper Software CD Optional Accessories FR1200 Fingerprint Slave K1 Exit Button 12V3A Power Adaptor...
- Page 3 Side Rear 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
- Page 4 Installation Diagram Product Dimensions (mm) 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
- Page 5 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
- Page 6 Cable Specifications 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
- Page 7 Important Notes Please do not install F18 in an area where it can come in contact with direct sunlight or any other source of light Use regulated 12V DC 3A power supply only Mounting the Unit Place the unit approximately 5 ½ feet above the ground level if permissible so that the users are comfortable in using the reader with least chances of error ...
- Page 8 Press ESC to cancel the operation and return to the previous menu. User Enrollment To start user enrollment, press the Menu key on the F18. From the Main Menu, highlight and select User Mng to add/change/delete users’ fingerprint(s), password or role (Admin or user).
- Page 9 A user can enroll up to 10 fingerprints. Password (PWD) A user can enroll a password using 1 to 8 digits. Security/Role (Purview) Identifies a user as a normal user or an Administrator. 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
- Page 10 The finger should cover at least 80% of the sensor as shown below: d) The finger should NOT be placed in the following positions: Not flat Not centered Not flat Not centered 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
- Page 11 Place the finger you wish to enroll on the sensor, ensuring the finger is placed flat and centered. Hold the finger still for at least two full seconds until the F18 prompts with a beep to remove it. You will then be prompted to repeat the process 2 more times, each time using the very SAME finger.
- Page 12 Since the fingerprint sensor may have difficulty reading fingers with cuts or scratches, having a “backup” finger(s) registered ensures that the user will always be recognized by the F18. If one finger is temporarily rendered “unreadable” by recent cuts or scratches, the user can use their backup finger.
- Page 13 Scroll ▲/▼ keys to locate the cursor on "enroll card" button, and press "OK" to enter the registration card Flash the card near the keypad of F18 reader, press OK key to save after the device reads and displayes the card number.
- Page 14 Scroll with the ▲/▼ keys and highlight Manage. Then press the OK key to open the User Manage screen: Select the user you’d like to delete by scrolling with the ▲/▼ keys. Then press the Menu key so the drop-down menu appears; 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
- Page 15 You can delete either the user, fingerprint, password or the ID card. Scroll with the ▲/▼ keys to highlight your selection. Then press the OK key to delete your selection. The F18 will prompt you “OKDel”? Press the OK again to confirm deletion. Set Communications Options: The F18 can communicate via the Network (Ethernet), RS/232 or RS485.
- Page 16 Then press the OK Key to accept From within the Comm Menu, scroll with the ◄/► keys until Network is highlighted. Press the OK key to accept. 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
- Page 17 After selecting “OK”, you’ll be prompted “Change Saved Successfully! OK”; Press OK to continue. The screen will change to the previous menu. Press the ESC key to continue moving backward in the menu system. 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
- Page 18 After selecting “OK”, you’ll be prompted “Change Saved Successfully! OK”; Press OK to continue, and the screen will change to the previous menu. Press the ESC key to return to the previous menu. 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
