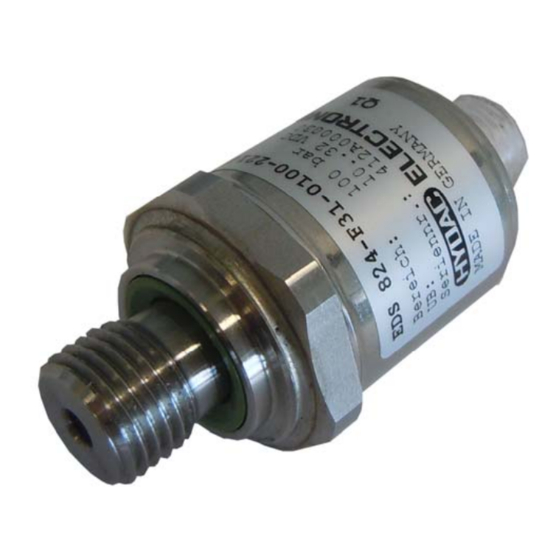

EDS 820 IO-Link Vorwort Für Sie, den Benutzer unseres Produktes, haben wir in dieser Dokumentation die wichtigsten Hinweise zum Bedienen und Warten zusammengestellt. Sie dient Ihnen dazu, das Produkt kennen zu lernen und seine bestimmungsgemäßen Einsatzmöglichkeiten optimal zu nutzen. Diese Dokumentation muss ständig am Einsatzort verfügbar sein.
Falls Sie Fragen bezüglich der technischen Daten oder Eignung für Ihre Anwendungen haben, wenden Sie sich bitte an unseren technischen Vertrieb. Die Druckschalter der Serie EDS 820 IO-Link werden einzeln auf rechnergesteuerten Prüfplätzen abgeglichen und einem Endtest unterzogen. Sie sind wartungsfrei und sollten beim Einsatz innerhalb der Spezifikationen (siehe Technische Daten) einwandfrei arbeiten.
Druckanschluss nach unten. Der elektrische Anschluss sollte von einem Fachmann nach den jeweiligen Landesvorschriften durchgeführt werden (VDE 0100 in Deutschland). Die Druckschalter der Serie EDS 820 tragen das - Zeichen. Eine Konformitätserklärung ist auf Anfrage erhältlich. Die EMV-Normen: EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 und EN 61000-6-4 werden erfüllt.
EDS 820 IO-Link 7 Status LEDs Der Druckschalter verfügt über 3 Status-LEDs am elektrischen Anschluss: 2 LEDs (gelb) für die Schaltzustände von SP1 und SP2 und 1 LED (grün) für den Betriebszustand M12x1 Stecker LED 1 Gelb Schaltausgang 1 aktiv (High)
10 Ausgangsverhalten 10.1 Schaltausgänge Der EDS 820 IO-Link verfügt über 2 Schaltausgänge, deren Schaltverhalten (Window mode oder Twopoint mode) parametriert werden können. Ergänzend zu der IO-Link Smart Sensor Profile Specification kann bei HYDAC IO-Link Sensoren eine Schalt- und Rückschaltverzögerung parametriert werden.
EDS 820 IO-Link 10.1.1 Twopoint mode - Einstellung auf Schaltpunkt (SP) Zu jedem Schaltausgang kann ein Schaltpunkt und ein Rückschaltpunkt eingestellt werden. Der jeweilige Ausgang schaltet, wenn der eingestellte Schaltpunkt erreicht wurde und schaltet zurück, wenn der Rückschaltpunkt unterschritten wurde.
Page 9
EDS 820 IO-Link Beispiel für Schaltausgang 1 (Öffner- und Schließerfunktion): FH1 plus 0,4%FS R ü ckschaltwert R ü ckschaltwert Sicherheitszone Sicherheitszone Schaltwert Schaltwert Schaltwert Schaltwert Sicherheitszone Sicherheitszone R ü ckschaltwert R ü ckschaltwert FL1 minus 0,4%FS Schlie ß erfunktion Schlie ß erfunktion Ö...
EDS 820 IO-Link 10.2 Einstellbereiche für die Schaltausgänge Messbereich Untere Obere Mindestabstand Schrittweite* Grenze von Grenze von zw. RP und SP RP / FL SP / FH bzw. FL und FH in bar in bar in bar in bar 0 .. 16...
Page 16
EDS 820 IO-Link HYDAC ELECTRONIC GMBH Hauptstr. 27 D-66128 Saarbrücken Germany Web: www.hydac.com E-Mail: electronic@hydac.com Tel.: +49 (0)6897 509-01 Fax.: +49 (0)6897 509-1726 HYDAC Service Für Fragen zu Reparaturen steht Ihnen der HYDAC Service zur Verfügung. HYDAC SERVICE GMBH Hauptstr. 27 D-66128 Saarbrücken...
Page 17
EDS 820 with IO-Link Interface with LED Display Operating Instructions (Translation of original instructions)
Page 18
EDS 820 IO-Link Contents Safety information _________________________________________ 4 Exclusion of liability _______________________________________ 4 General __________________________________________________ 4 Functions ________________________________________________ 4 Installation _______________________________________________ 5 Pin Assignment ___________________________________________ 5 Status LEDs ______________________________________________ 6 ...
Page 19
EDS 820 IO-Link Preface This manual provides you, as user of our product, with key information on the operation and maintenance of the equipment. It will acquaint you with the product and assist you in obtaining maximum benefit in the applications for which it is designed.
If you have any queries regarding technical details or the suitability of the unit for your application, please contact our Technical Sales Department. The pressure switches of the EDS 820 IO-Link series are individually subjected to calibration and final testing on computer operated test stations. They are maintenance-free and operate perfectly when used according to the data (see Technical Specifications).
The electrical connection must be carried out by a qualified electrician according to the relevant regulations of the country concerned (VDE 0100 in Germany). EDS 820 pressure switches are marked. A certificate of conformity is available on request. The relevant EMC standards EN 61000-6-1; EN 61000-6-2, EN 61000-6-3, EN 6100-6-4 are met.
EDS 820 IO-Link 7 Status LEDs The pressure switch has 3 status LEDs on the electrical connection: 2 LEDs (yellow) for the switching statuses of SP1 and SP2 and 1 LED (green) for the operating status M12x1 connect LED 1...
10 Output settings 10.1 Switching outputs The EDS 820 IO-Link has 2 switch outputs whose switching behaviour (window mode or twopoint mode) is parameterisable. In addition to the IO-Link Smart Sensor Profile Specification, a switch and switch-back delay can be set in HYDAC IO-Link sensors.
EDS 820 IO-Link 10.1.1 Twopoint mode - Switch point setting (SP) One switch point and one switch-back point can be set for each switching output. The particular output will switch when the pre-set switch point is reached and then switch back when the level drops below the switch-back point.
Page 25
EDS 820 IO-Link Example for switching output 1 (N/C and N/O function): Reverse switch point FH1 plus 0,4%FS Rückschaltwert Rückschaltwert Safety zone Sicherheitszone Sicherheitszone Switch point Schaltwert Schaltwert Switch point Schaltwert Schaltwert Safety zone Sicherheitszone Sicherheitszone Rückschaltwert Rückschaltwert FL1 minus 0,4%FS Reverse switch point Schließerfunktion...
EDS 820 IO-Link 10.2 Setting ranges for the switch outputs Measuring Lower limit of Upper limit of Min. difference Increment* range RP / FL SP / FH betw. RP and SP or FL and FH in bar in bar in bar in bar 0 ..
Page 35
EDS 820 IO-Link Avant-propos Pour vous, utilisateur de notre produit, nous avons regroupé dans cette notice, les principales informations pour l'utilisation et la maintenance de l'appareil. Cette notice a pour objectif de simplifier la prise de connaissance du produit et l'exploitation optimale de ses possibilités d'utilisation, conformément à...
à notre service commercial. Chaque transmetteur de pression basé sur la série EDS 820 IO-Link est aligné et soumis à un test final sur un poste d'essai assisté par ordinateur. Les appareils ne nécessitent aucun entretien et fonctionnent parfaitement dans les conditions d’utilisation (voir données techniques) spécifiées.
être réalisé par du personnel qualifié selon chaque prescription nationale (VDE 0100 en Allemagne). Les manocontacteurs EDS 820 portent le sigle . Un certificat de conformité est disponible sur demande. Les normes concernant les champs électromagnétiques : EN 61000-6-1, EN 61000-6-2, EN 61000-6-3 et EN 61000-6-4 sont respectées.
EDS 820 IO-Link 7 DEL d'état Le manocontacteur électronique dispose de plus de 3 DEL d'état à son raccord électrique : 2 DEL (jaunes) pour les états de commutation de SP1 et SP2 et 1 DEL (vert) pour l'état de service.
10 Fonctionnement des sorties 10.1 Sorties de commutation L'EDS 820 IO-Link dispose de 2 sorties de commutation dont le comportement de commutation (Window mode ou Twopoint mode) peut être paramétré. En plus d'une "IO-Link Smart Sensor Profile Specification", la temporisation à...
EDS 820 IO-Link 10.1.1 Twopoint mode - Réglage du seuil d'enclenchement (SP) Pour chaque sortie de commutation respectivement, il est possible de régler 1 seuil d'enclenchement et 1 seuil de déclenchement. La sortie concernée commute lorsqu'on a atteint le seuil d'enclenchement et se décommute lorsqu'on est en dessous du seuil de déclenchement.
Page 41
EDS 820 IO-Link Exemple pour sortie de commutation 1 (fonction ouvrante et fermante) Réenclenchement FH1 plus 0,4%PE Rü Sicherheitszone Zone de sécurité Commutation Commutation Sicherheitszone Zone de sécurité Rü FL1 moins 0,4%PE Réenclenchement Fonction fermante Fonction ouvrante Raccourcis: "FH1", "FH2" = valeur de commutation supérieure 1 ou 2 "FL1", "FL2"...
EDS 820 IO-Link 10.2 Plages de réglage pour les sorties de commutation Plage de Seuil Seuil Distance minimum Pas* mesure inférieur de supérieur de entre RP et SP RP / FL SP / FH ou FL et FH en bar...
