StarTech.com PEX2S953LP Quick Start Manual page 2

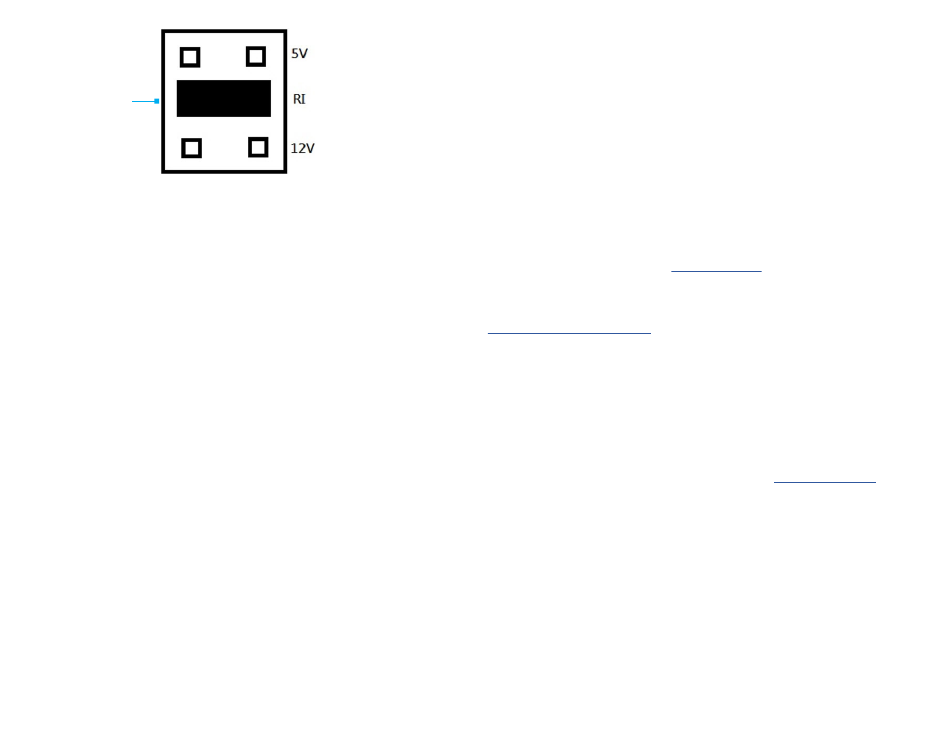

Figure 1
Jumper
Hardware Installation
Note: This PCI Express Serial Card is specially designed to allow for power output
from the ninth pin of the Serial Connector(s) for devices that support power over
Serial. This card allows users to set each Serial Port to 5V, 12V, or RI (no power). Users
can also choose to draw the necessary power from the Computer's Power Supply by
connecting to the LP4 Power Connector.
1. Turn off the power to your Computer.
2. Unplug your Computer's Power Cord.
3. Remove your Computer's Cover.
