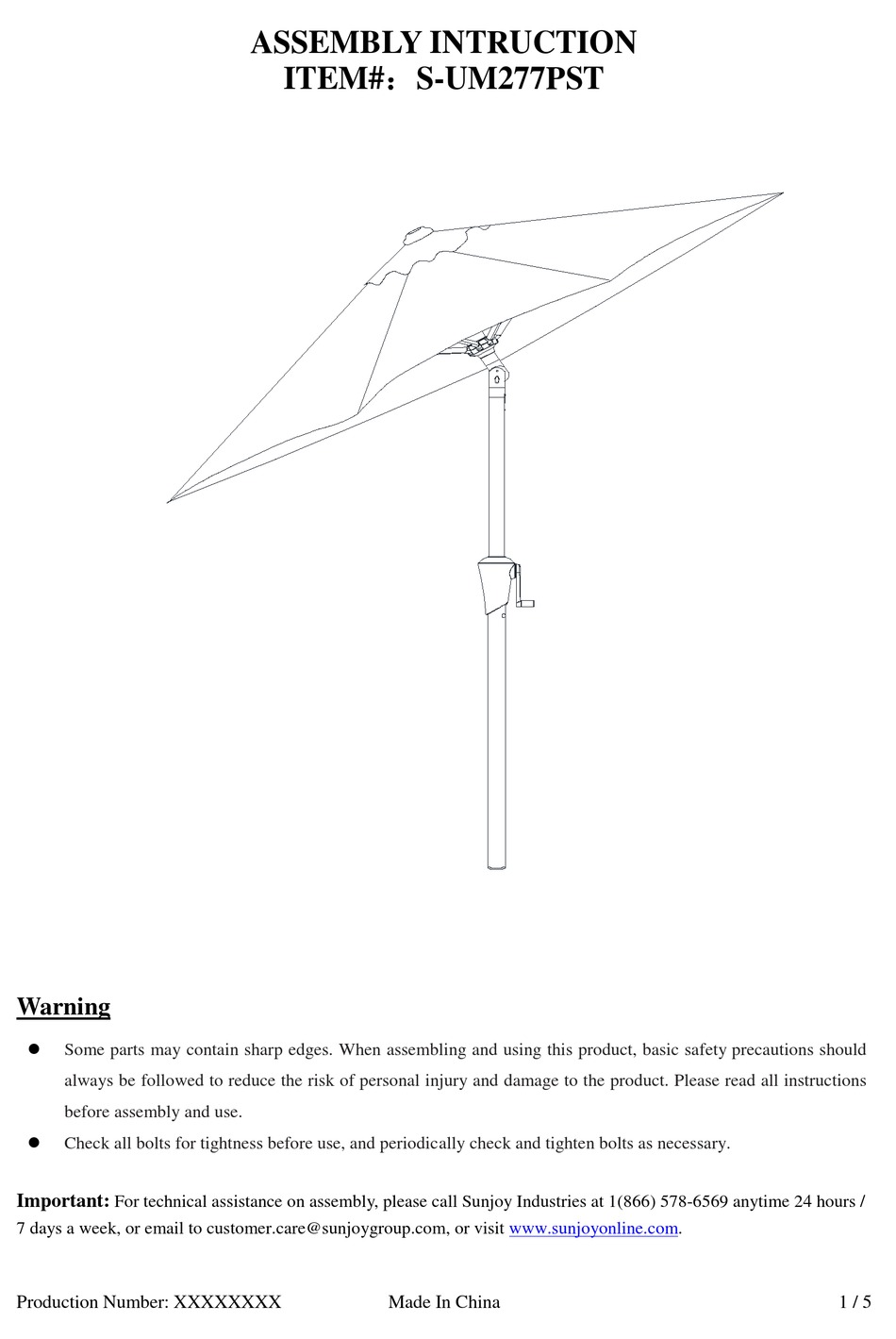

Sunjoy S-UM277PST Assembly Instruction

Warning



Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should

always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions

before assembly and use.



Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.

Important:

For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours /

7 days a week, or

email to

Production Number: XXXXXXXX

ASSEMBLY INTRUCTION

ITEM#：S-UM277PST

customer.care@sunjoygroup.com,

or visit

www.sunjoyonline.com.

Made In China

1 / 5

Table of Contents

Need help?

Do you have a question about the S-UM277PST and is the answer not in the manual?

Page 1  Check all bolts for tightness before use, and periodically check and tighten bolts as necessary. Important: For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours / 7 days a week, or email to customer.care@sunjoygroup.com,...
Page 2 PARTS LIST Label Description Image Umbrella Shade Lower Pole Solar Panel ASSEMBLY STEPS Fi g . 2 Fig. 1 Step 2: Fit the wire inside the top of the Umbrella, and Step 1: Find the plug at the top of the Umbrella turn the Solar Panel (C) clockwise to attach it to the Shade (A).
Page 3 Fig . 5 Fig. 6 Step 6: To open the umbrella: Step 5: Set the umbrella in the direct sunlight to (1) Turn the crank handle in the clockwise direction. charge the batteries before the first use. (2) You can tile the umbrella to your desired angle by Note: Be sure to charge the batteries for at least 8 pressing the Tilt Button to release the umbrella top.
Page 4 Step 4: Carefully open the Solar Panel. Replace the Step 3: Set the Solar Panel upside down on a batteries, matching the +/- on the batteries with the +/- on soft, clean surface to avoid scratching. Loosen all the battery case. four screws on the bottom of the Solar Panel.
Page 5 Do not dispose batteries in household waste. Do not throw batteries into water. Protect batteries against heat and fire due to risk of explosion. Recycling. Care & Maintenance:  Before using, clean the product completely with a soft dry towel. ...
