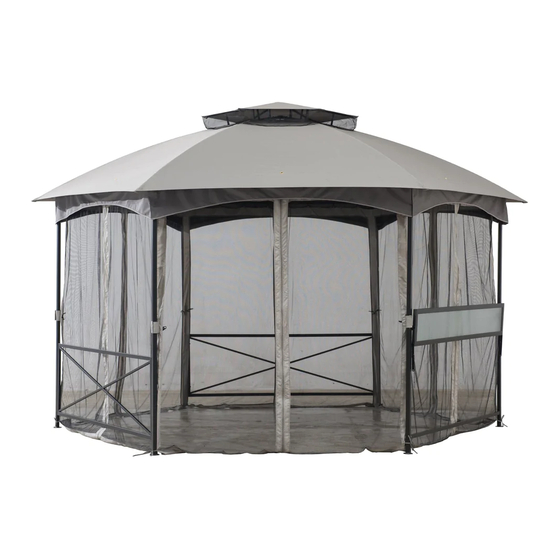

Summary of Contents for Sunjoy A101011200
- Page 1 TTEM NO.:A101011200 WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? CONTACT US 24 hours / 7 days a week www.sunjoyonline.com customer.care@sunjoygroup.com 1-(866)-578-6569 Country of Origin: China Production Number:xxxxxxxx ...
-
Page 2: Safety Information
2 / 9 Safety Information two people are required for this assembly. This unit is heavy! Do not DANGER: Some parts may contain sharp edges. Wear assemble protective gloves. this item alone. When assembling and using this product, Do not leave the gazebo where WARNING: basic safety precautions should always be... -
Page 3: Parts List
3 / 9 Hardware M6*40 bolt H010020022 8 PCS Flat washer H050010020 28 PCS M6*20 bolt H010020012 20 PCS Ф6*230 Stake H070010008 12 PCS Ring P005100265 48 PCS Wrench H090010017 1 PCS Parts List Description Label Part# Image Post 1 P000200478 Post 2 P000200479... - Page 4 4 / 9 Parts List Post 5 P000200481 Fence P006200014 Upper beam P000400930 Corner P000601431 connector Large top P000601430 slanting bar Large top P000501233 connecter Hook P005800001 Shelf P002100345 Shelf support plate P005000425 included(G) Adjustable tube P005700693 Connect tube P000501234 large canopy P001100574 Small canopy...
- Page 5 5 / 9 Step1 Fig.1-1：By using bolt (AA) and washer（BB）attach fence（B1）to bottom of post（A8、A9）。 Fig.1-1：Insert upper beam（C1） into post（A8、A9），then fix upper beam（C1）to post（A8、A9）, by using bolt(CC)and washer（BB） Country of Origin: China ...
- Page 6 6 / 9 Fig.2-1：By using bolt(CC), washer（BB）, attach connect tube（L）to bottom of post（A6、A7。 Fig.2-2： Insert upper beam （C1） to post （A6、 A7） ,then fix upper beam （C1） to post （A6、 A7） ,by using bolt(CC)and washer（BB）. Fig.3：Insert upper beam（C1）into post（A6、A7、A8、A9）, then fix upper beam（C1）to post（A6、A7、 A8、A9）by using bolt (CC) and washer（BB）.
- Page 7 7 / 9 Fig.6：Insert slanting bottom beam（D2）into slanting upper beam（E2）。 Fig.7：Attach adjustable tube （L） to large top slanting bar（E2）corner connector（D2）as image （Fig.7-1）, then adjust tube length shortest。 Fig.8：Insert assembled slanting bar bottom end（D2）into post（A6、A7、A7、A9）。 Fig.9：Attach assembled slanting bar upper end（E2）to large top connector（F1），then attach hook（F4） to large top connector（F1），and put large canopy(S) to large top frame.
- Page 8 8 / 9 Fig.10：Put small canopy four corner（S1） to small top frame end of adjustable tube（L）（as Fig.10-1） adjust tube length till the canopy tight. Fig.11： fix large canopy six corner （S） to large top frame adjustable tube （L） （as Fig.11-1） then adjust tube length till large canopy tight.
-
Page 9: Care And Maintenance
Periodically check and ensure that all bolts are well‐tighten during use Limited Manufacturer’s Warranty Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
