Model: A103000102
SKU: 2721523

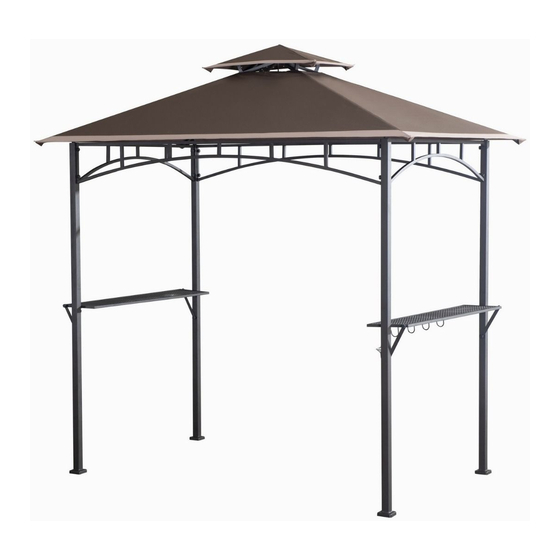

Grill Gazebo W/LED
Made In China
Production Number:2020200002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A103000102 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunjoy A103000102

  • Page 1 ASSEMBLY INSTRUCTIONS Model: A103000102 SKU: 2721523 Grill Gazebo W/LED Made In China Production Number:2020200002...
  • Page 2 Congratulations on your purchase of our SUNJOY LED lighted grill gazebo. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. IMPORTANT: 1. When installing and assembling your gazebo, it is recommended that two or more adults are involved.
  • Page 3 Parts List Description CS Part # Label Quantity Images P000200319 Post (1) P000200320 Post (2) P000200321 Post (3) P000601010 Big beam P000500822 Big connector P000601009 Small beam P000400686 Long screen P000400687 Short screen P002100212 Panel 1 P002100213 Panel 2 P005800135 Hook rack Bolt 1 P90804A07106...
  • Page 4 Fig.1: Attach the long screen (E) and the short screen (F) to post (A1,A2,A3) with the bolts 1 (I). Fig.2: Attach the big beam (B) to the big connector (C), then assemble the hook (L) to the big connector (C). Fig.3: Insert the lower connector tube of the big beam (B) into the upper tube of post (A1,A2,A3), then place the big canopy (J) on big top, do not fully spread.
  • Page 5 Hardware Pack 2 P12412C01001 Φ6X230MM Stake 8PCS Fig.7: Extend the Big Canopy (J) onto the big top by fixing the canopy at four corners of Big Beam (B). Fig.7-1: Attach the hook rack (H) to panel 2(G2) with the bolt 2 (II). Fig.8: Insert the connecting piece of panels (G1,G2) into the U-shaped piece of post , then fasten the panels (G1,G2) to posts (A1,A2,A3,A4) using bolts (I).
