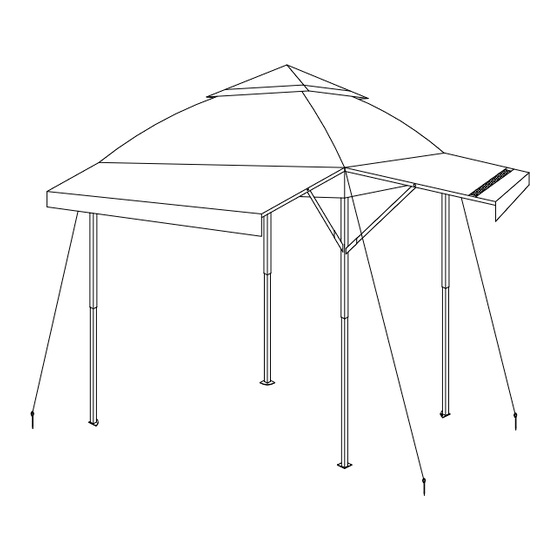

Pop up gazebo with extension roof
Use and Care Guide
S-GZ1182PST
Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor
furniture purchase.
Our clear, easy to follow, step by step instructions will guide you through the project from start
to finish.
Item identification: For ease of identification, all parts are labeled to correspond to the Step
number in which the part is used.
Production Number: xxxxxxxx
Advertisement
Table of Contents
Related Manuals for Sunjoy S-GZ1182PST
Summary of Contents for Sunjoy S-GZ1182PST

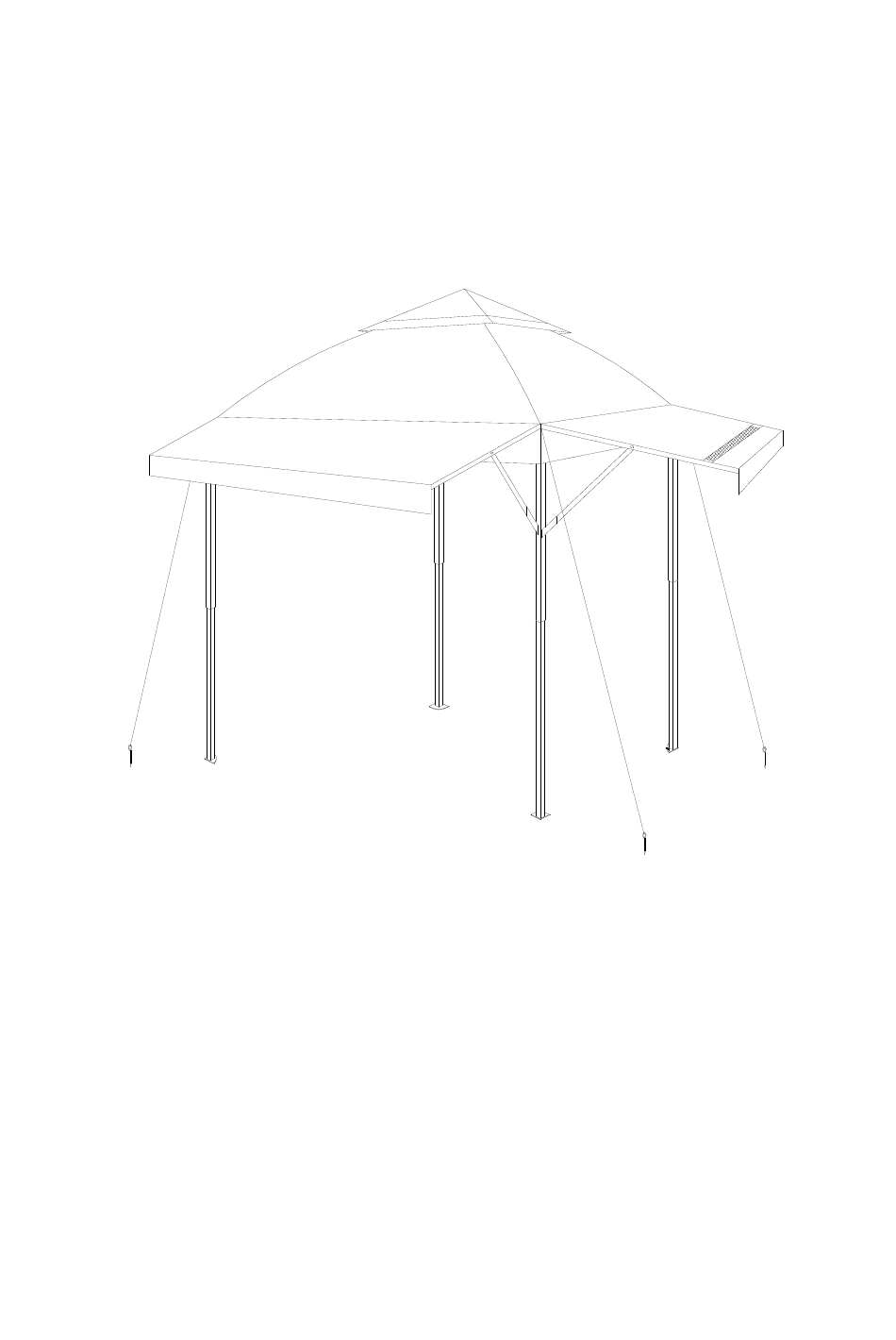

- Page 1 Use and Care Guide S-GZ1182PST Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor furniture purchase. Our clear, easy to follow, step by step instructions will guide you through the project from start to finish.
- Page 2 Part List Description Label Image Frame Big canopy Small canopy Connector 1 Connector 2 Hardware Description Label Stake φ5*170mm Stake φ7*210mm Rope 3m Assembly instruction: Fig.1 Take out the frame (A) from Bag (F). 。 Fig. 1...
- Page 3 Fig.2 Place the gazebo frame (A) upright and have four people holding the corner posts and pulling outwards Fig.3 Cover the big canopy(B）on frame（A） ，fix big canopy（B）to frame（A）by using Velcro loop ( line up and close the short velcro firstly, then line up and close the long velcro). Fig.4 Cover the small canopy（C）on frame（A）...
- Page 4 Fig.7 Insert connector (E) into the other end of the connector (D). Fig.8 Insert the assembled connector (D）into the big canopy（B）. Fig.9 Put the connector end（D）on frame support（A）. Fig.10 Insert frame（A）support in the frame post（A）.
- Page 5 Fig11 Put the rope（CC）through big canopy loop and fix on ground by using stake (BB）. Fig.12 Fix four side rope on ground。 Fig.12...
- Page 6 Please do not return this product to the store. For technical assistance or replacement parts, please call Sunjoy Group at 1 (866) 578-6569 between 8:00 AM EST and 8:00 PM PST. You may fax your replacement parts form (which is included in the packaging) to 1 (740) 283-3549 or email to customer.care@sunjoygroup.com...
