Basic System Architecture

The following illustration shows basic application for this unit. It also required the following devices to have a
complete running system:
Generator or Utility mains.
PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power various appliances in home or office environment, including motor-type appliances
such as tube light, fan, refrigerator and air conditioners.
Depending on different power situations, this hybrid inverter is designed to generate continuous power from PV
solar modules (solar panels), battery, and the utility. When MPP input voltage of PV modules is within
acceptable range (see specification for the details), this inverter is able to generate power to feed the grid
(utility) and charge battery. Galvanic isolation designed between PV/DC and AC output, so that user could
connect any type of PV array to this Hybrid inverter. See Figure 1 for a simple diagram of a typical solar system
with this hybrid inverter.

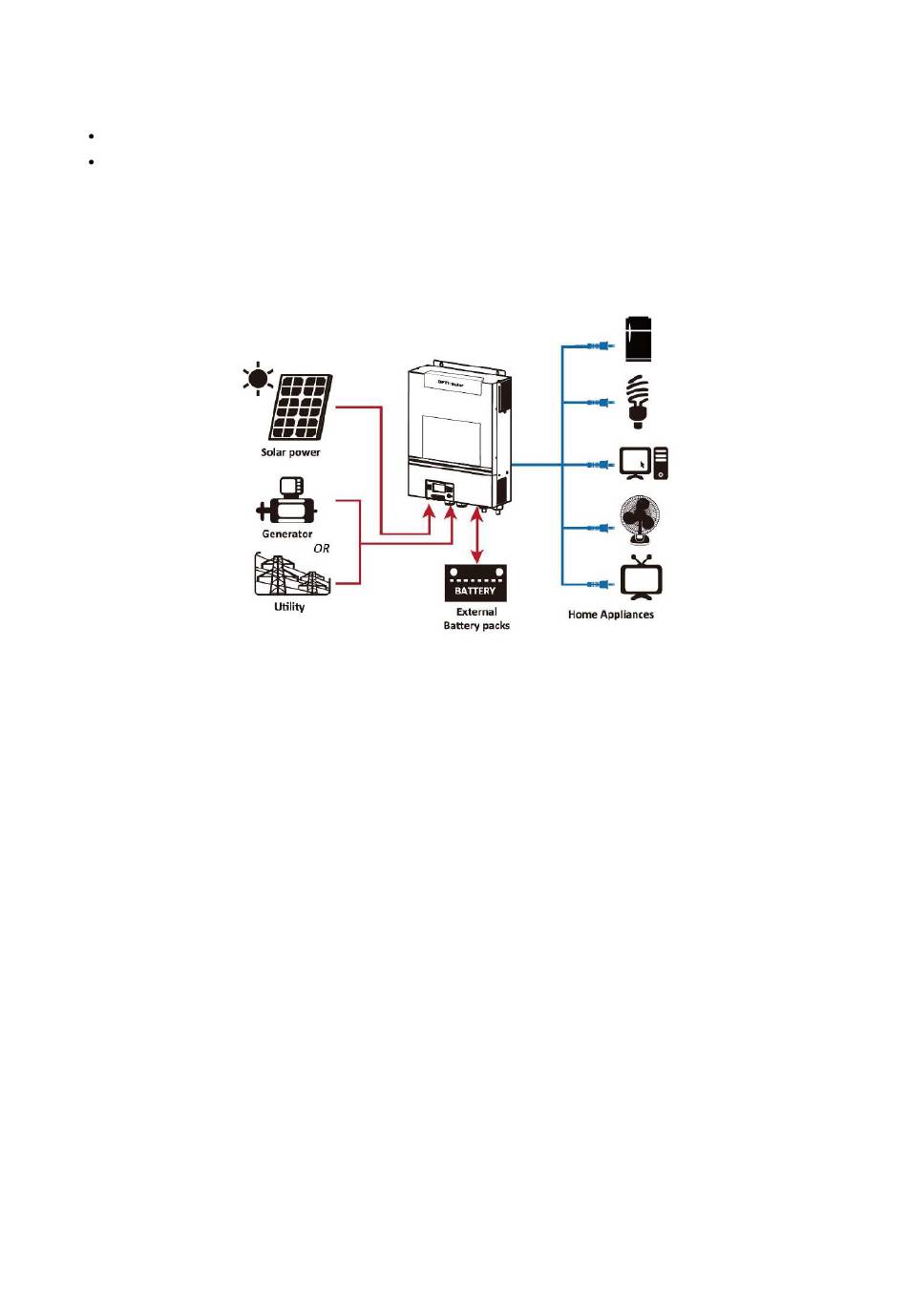

Figure 1 Basic hybrid PV System Overview
