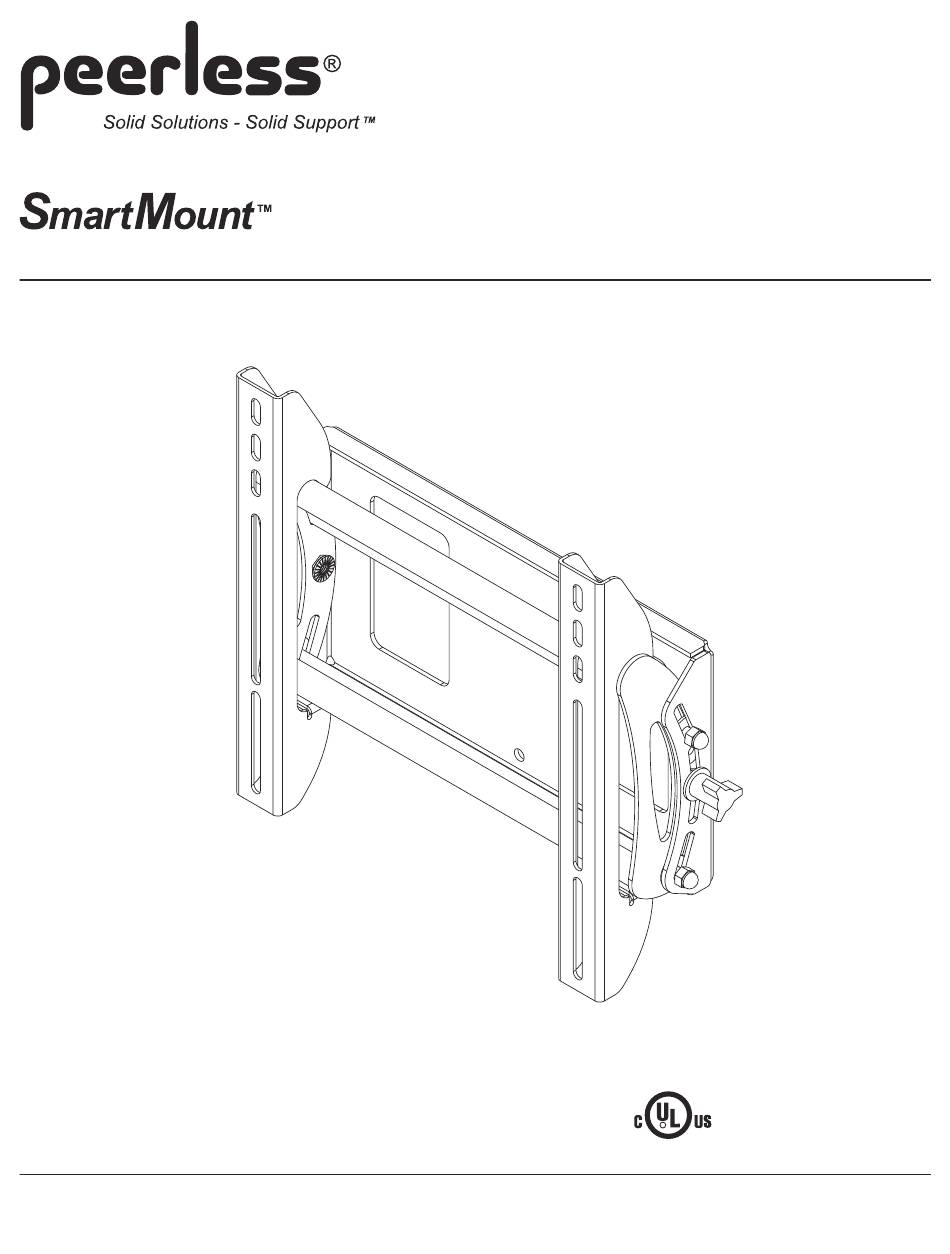

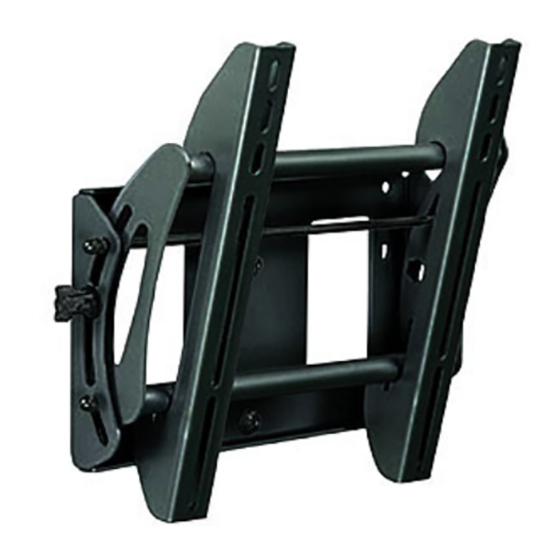

Installation and Assembly:
Universal Tilt Wall Mount for 13" - 42" Screens
Models: ST 635, ST 635-S
Features:
• Fits 13" to 42" flat panel screens
• One-touch tilt for effortless positioning and adjustment of the screen
• Easy access knob for fine tension adjustment
• Integrated security features provide effective theft deterrence
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessindustries.com
This product is UL Listed. It must be
installed by a qualified professional
R
installer.
Max UL Load Capacity: 115 lb (52 kg)
ISSUED: 04-22-05 SHEET #: 201-9442-5 12-14-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartMount ST 635 and is the answer not in the manual?

Questions and answers

Related Manuals for PEERLESS SmartMount ST 635

Summary of Contents for PEERLESS SmartMount ST 635

  • Page 1 Installation and Assembly: Universal Tilt Wall Mount for 13" - 42" Screens Models: ST 635, ST 635-S Features: • Fits 13" to 42" flat panel screens • One-touch tilt for effortless positioning and adjustment of the screen This product is UL Listed. It must be installed by a qualified professional •...

  • Page 2: Table Of Contents

    Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-729-0307.

  • Page 3: Parts List

    Parts List ST 635 ST 635-S Description Qty. Part # Part # wall mount 201-0003 201-0004 adapter bracket 200-0810 200-0812 Alligator® anchor 590-0097 590-0097 4 mm allen wrench 560-1131 560-1131 #14 x 2.5" hex head screw 5S1-015-C03 5S1-015-C03 M6 x 12 mm socket pin screw 520-1050 520-1050 M6 x 20 mm socket pin screw...

  • Page 4: Installation To Wood Stud Wall

    Installation to Wood Stud Wall WARNING • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. Using a stud finder, locate and mark the edges of the wood stud used in mounting this product. Use of an edge to edge stud finder is highly recommended.

  • Page 5: Installation To Solid Concrete And Cinder Block

    WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
  • Page 6 Installation to Solid Concrete and Cinder Block (Continued) Swing wall mount (A) out of the way and drill top two marked holes. Insert two anchors (C) in holes flush with wall as shown in figure 1.8. Return mount to original position and loosely fasten wall mount (A) to wall using two #14 x 2-1/2" wood screws (E) as shown in figure 1.9.

  • Page 7: Installing Adapter Brackets

    Installing Adapter Brackets WARNING • If screws don't get three complete turns in the screen inserts or if screws bottom out and adapter plate is still not tightly secured, damage may occur to screen or product may fail. Contact customer care for correct hardware to use. To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen.

  • Page 8: Mounting And Removing Flat Panel Screen

    Mounting and Removing Flat Panel Screen Hook adapter brackets (B) onto wall mount (A). Then WARNING slowly swing screen in as shown in figure 3. Lock adapter brackets with security screws, shown in detail 1, using wrench (D). • Do not lift more weight than you can handle. Use additional man power or mechanical lifting equipment To remove screen from mount, loosen security screws, to safely handle placement of the screen.

  • Page 9: Adjusting The Tilt Of The Flat Panel Screen

    9 of 9 © 2005 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark and Smart mount is a trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.
