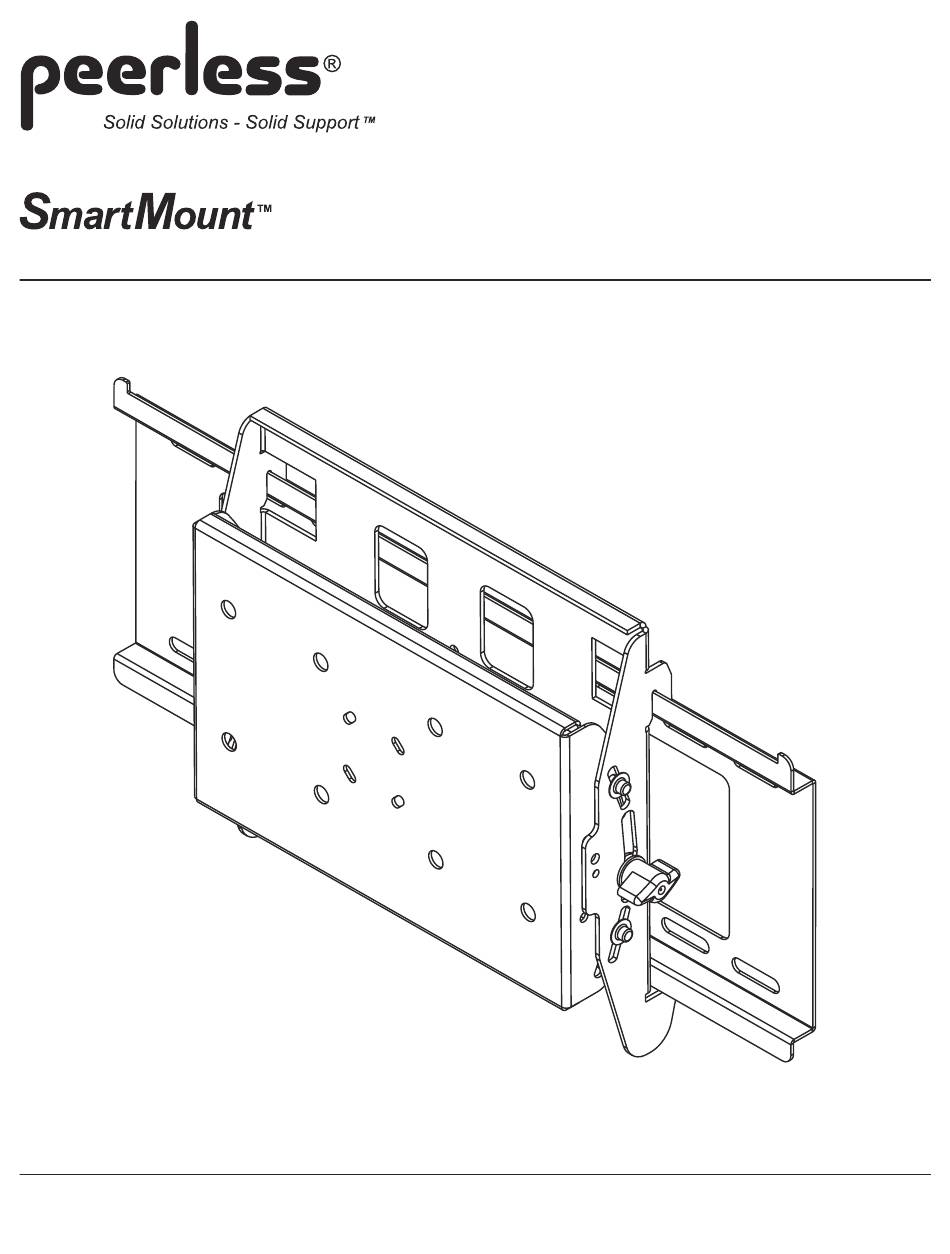

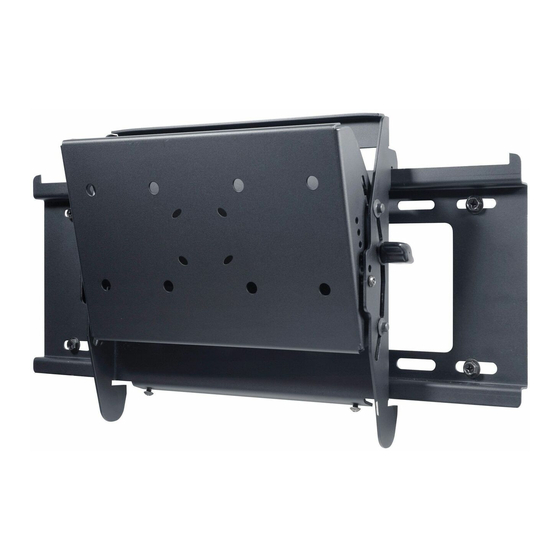

- Page 1 Installation and Assembly: Dedicated Tilt Wall Mount Model: ST16D Max Load Capacity: 200 lb (91 kg) 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com ISSUED: 09-15-05 SHEET #: 202-9031-2 11-18-05...
-
Page 2: Table Of Contents
Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-729-0307. -
Page 3: Parts List
Parts List Description Qty Part # A tilt bracket assemby 200-0936 B wall plate 200-1797 C #14 x 2.5" wood screw 5S1-015-C03 D Alligator® anchor 590-0097 E M10 x 15 mm socket head screw 520-9262 F 4 mm security allen wrench 560-1146 3 of 10 ISSUED: 09-15-05 SHEET #: 202-9031-2 11-18-05... -
Page 4: Installation To Single Stud Wall
Installation to Single Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined weight of all attached equipment and hardware. Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended. Based on its edges, draw a vertical line down the stud’s center. -
Page 5: Installation To Double Wood Stud Wall
Installation to Double Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined weight of all attached equipment and hardware. Wall plate (B) can be mounted to two studs that are 16" apart. Use a stud finder to locate the edges of the studs. Use of an edge-to-edge stud finder is highly recommended. -
Page 6: Installation To Solid Concrete Or Cinder Block
WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... -
Page 7: Attaching Plp Adapter Plate To Tilt Bracket Assembly
Note: Refer to accompanying instruction sheet for attachment of adapter plate to screen before proceeding with step 2. Attaching PLP Adapter Plate to Tilt Bracket Assembly Attach adapter bracket to interface bracket of tilt bracket assembly (A) using four M10 screws (E). Note: Full tilt bracket assembly not shown for clarity. -
Page 8: Attaching Lc Adapter Plate To Tilt Bracket Assembly
Note: Refer to accompanying instruction sheet for attachment of adapter plate to screen before proceeding with step 2. Attaching LC Adapter Plate to Tilt Bracket Assembly To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen face side down. -
Page 9: Mounting And Removing Flat Panel Screen
Mounting and Removing Flat Panel Screen Hook tilt bracket assembly (A) onto wall plate (B). Then slowly swing screen in as shown. To lock the screen down, tighten security screw to wall plate using security allen wrench (F) as shown in detail 1. If mount is attached to double wood stud, solid concrete, or cinder block wall, screen can be adjusted horizontally if desired. -
Page 10: Adjusting The Tilt Angle Of The Flat Panel Screen
ISSUED: 09-15-05 SHEET #: 202-9031-2 11-18-05 © 2005 Peerless Industries, Inc. All rights reserved. SmartMount is a trademark and Peerless is a registered trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.
