Installation and Assembly:

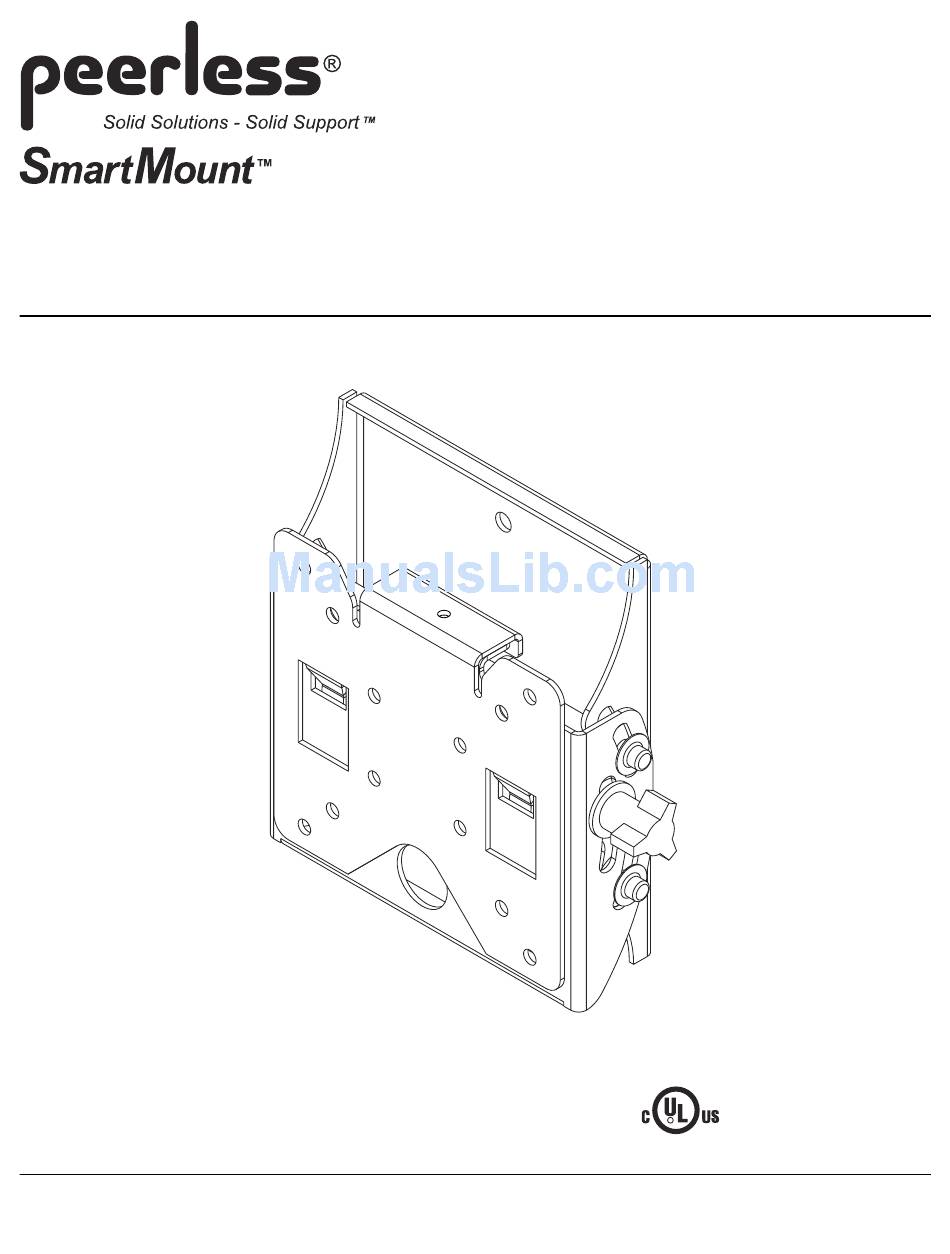

Universal Tilt Wall Mount for 10" - 24" LCD Flat Panel
Screens
Models: ST 630P, ST 630P-S, ST 630, ST 630-S
Features:
• Fits 10" to 24" LCD flat panel screens
• One-touch tilt for effortless positioning and adjustment of the screen
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
This product is intended for use with UL
Listed products and must be installed by a
R
qualified professional installer.
Max UL Load Capacity: 80 lb (36.3 kg)
ISSUED: 04-27-05 SHEET #: 201-9421-7 01-12-06
