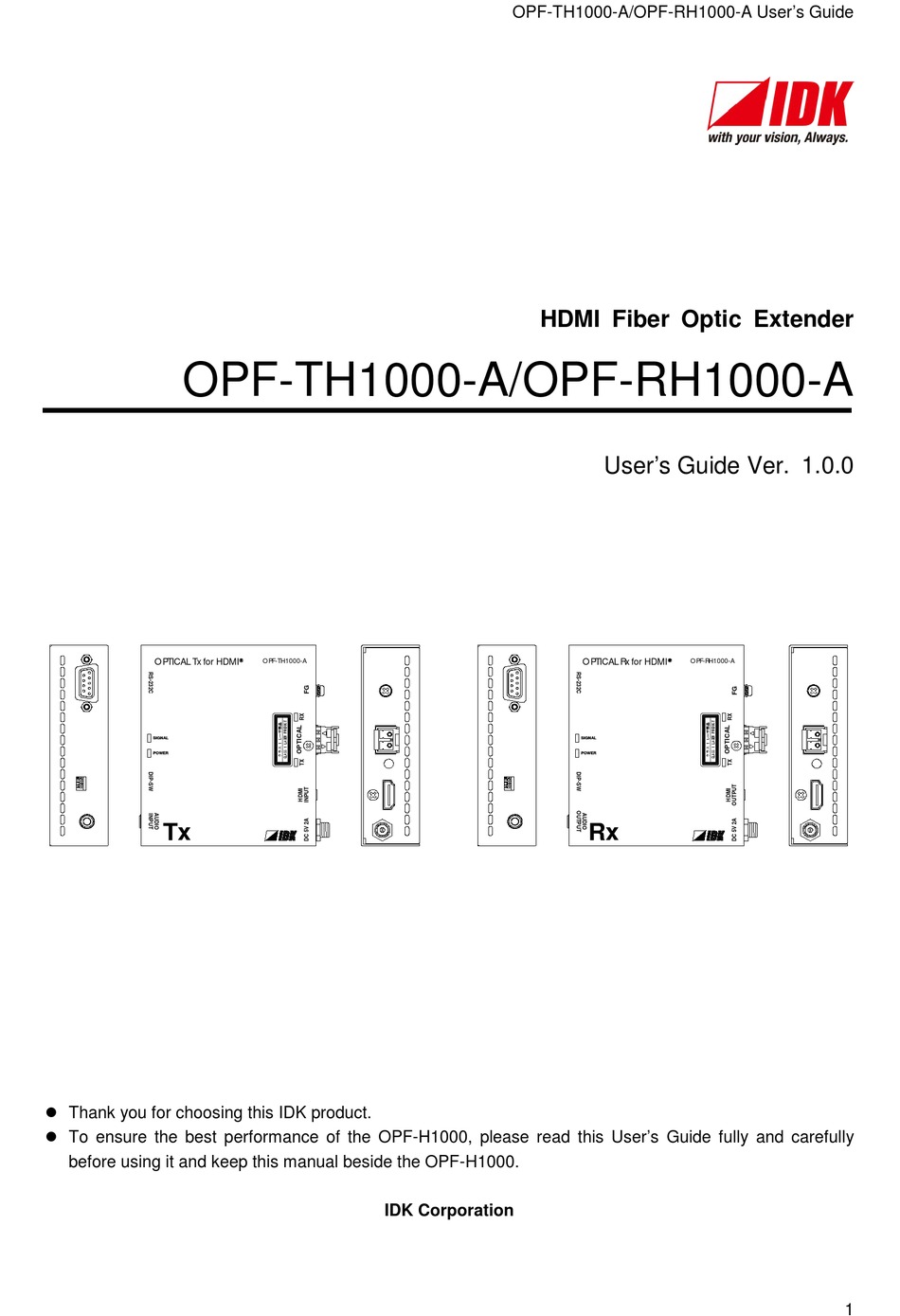

OPF-TH1000-A/OPF-RH1000-A
O PTICAL Tx for HDMI
SIGNAL
SIGNAL
POWER
POWER
Tx
Thank you for choosing this IDK product.
To ensure the best performance of the OPF-H1000, please read this User's Guide fully and carefully
before using it and keep this manual beside the OPF-H1000.
O PF-TH1000-A
IDK Corporation
OPF-TH1000-A/OPF-RH1000-A User's Guide
HDMI Fiber Optic Extender
User's Guide Ver. 1.0.0
O PTICAL Rx for HDMI
SIGNAL
SIGNAL
POWER
POWER
Rx
O PF-RH1000-A
1
Advertisement
Table of Contents
Related Manuals for IDK OPF-TH1000-A
Summary of Contents for IDK OPF-TH1000-A
- Page 1 POWER POWER POWER Thank you for choosing this IDK product. To ensure the best performance of the OPF-H1000, please read this User’s Guide fully and carefully before using it and keep this manual beside the OPF-H1000. IDK Corporation...
- Page 2 OPF-TH1000-A/OPF-RH1000-A User’s Guide Trademarks The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. All other company and product names mentioned in this manual are either registered trademarks or...
- Page 3 Some of the contents in this User’s Guide such as appearance diagrams, menu operations, communication commands, and so on may differ depending on the version of the extender. This User’s Guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idk.co.jp/en/index.html The lasers in this product meet Class 1 Laser Safety per FDA/CDRH and クラス...
- Page 4 OPF-TH1000-A/OPF-RH1000-A User’s Guide Safety instructions Read and understand all safety and operating instructions before using this device. Follow all instructions and cautions as detailed in this document. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious...
- Page 5 The product is intended to be installed by skilled technicians. For installation, please contact a system integrator or IDK. Otherwise, it may cause fire, electric shock, injury, or property damage. Set the power plug in a convenient place to unplug easily.
- Page 6 OPF-TH1000-A/OPF-RH1000-A User’s Guide Caution Do not place the product in any place where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures, it may cause fire. Do not place the product in humid, oil smoke, or dusty place.
-
Page 7: Table Of Contents
OPF-TH1000-A/OPF-RH1000-A User’s Guide Table of contents Included items ............................8 Product Outline ............................9 Features ..............................10 Part names and descriptions ........................11 Transmitter (OPF-TH1000) ......................11 Receiver ............................12 Connection ............................... 13 Cascade connection ......................... 14 HDMI input/output cable ........................14 Fiber optical cables for long distance transmission ................ -
Page 8: Included Items
OPF-TH1000-A/OPF-RH1000-A User’s Guide 1. Included items Make sure all items below are included in the package. If any items are missing or damaged, please contact IDK. “OPF-H1000” mentioned in this manual refers to OPF-TH1000 and OPF-RH1000 set. ■ Transmitter (OPF-TH1000) ●... -
Page 9: Product Outline
OPF-TH1000-A/OPF-RH1000-A User’s Guide 2. Product Outline Caution: The OPF-H1000 outputs continuous invisible light, which may be harmful to your eyes. Please follow the following cautions. ● Do not look into the rear panel fiber optic cable connectors or into the fiber optic cables themselves. -
Page 10: Features
OPF-TH1000-A/OPF-RH1000-A User’s Guide 3. Features ■ Video • Maximum resolution: WUXGA (RB)*/1080p • Transmission distance of each SFP module · Multimode fiber (OM3): 300 m/984.25 feet Multimode fiber (OM4): 1 km/3280.84 feet · Singlemode fiber (OS1): 4.7 km/15419.95 feet ·... -
Page 11: Part Names And Descriptions
OPF-TH1000-A/OPF-RH1000-A User’s Guide 4. Part names and descriptions Transmitter (OPF-TH1000) OPF-TH1000-A OPTICAL Tx for HDMI ⑤ ⑦ ② SIGNAL SIGNAL ⑧ POWER POWER ④ ⑨ ① ⑥ ③ Panel drawing (OPF-TH1000) Part name Description ① HDMI input connector Input connector for HDMI signals Connect source devices such as Blu-ray players. -
Page 12: Receiver
OPF-TH1000-A/OPF-RH1000-A User’s Guide 4.2 Receiver O PTICAL R x for HDMI O PF-R H1000-A ⑤ ⑦ ② SIGNAL SIGNAL ⑧ POWER POWER ④ ⑨ ① ⑥ ③ Panel drawing (OPF-RH1000) Part name Description ① HDMI output connector Output connector for HDMI signals Sink devices such as TVs can be connected. -
Page 13: Connection
OPF-TH1000-A/OPF-RH1000-A User’s Guide Connection Multimode Fiber OM3: Max. 300 m/984.25 feet OM4: Max. 1 km/3280.84 feet Digital Video Digital Video Max. 5 m Max. 5 m 1 Output 1 Input Singlemode Fiber HDMI DVI (HDCP) HDMI DVI (HDCP) /16.4 feet /16.4 feet... -
Page 14: Cascade Connection
● repeater that only supports HDCP pass through (such as some switchers, boosters and so on) is included ● another set of OPF-TH/RH1000 (IDK’s fiber optic cable extender supporting HDCP signals) Application example HDMI input/output cable... -
Page 15: Fiber Optical Cables For Long Distance Transmission
OPF-TH1000-A/OPF-RH1000-A User’s Guide Fiber optical cables for long distance transmission Use correct fiber optical cables to maximize the performance of the OPF-H1000. ● Use a duplex fiber or two simplex fiber cables with LC connectors at both ends. ● To polish connectors: For SFP module for multimode: PC polishing is recommended. -
Page 16: Audio Transmission
OPF-TH1000 and OPF-RH1000 communicate using the original protocol. Select communication cables for the Transmitter and Receiver individually according to the specifications of each connected device. ● Connection with other IDK products: Cross cables. ● Connection with a computer: Cross bales... -
Page 17: Precautions
If you have to install the product to an EIA rack mount in closed space, add a ventilation to keep the ambient temperature of 40 degrees C/104 degrees F or less. (Exception: Installing to IDK’s Quarter rack, RM-42HQ) If inadequately vented, the life of parts may be shortened and operations may be affected. - Page 18 OPF-TH1000-A/OPF-RH1000-A User’s Guide Notes: ● Supply power to the AC adapter only after all connections are completed. ● See “7. Troubleshooting” if video image is not displayed appropriately on the monitor connected to the OPF-H1000.
-
Page 19: Reference: Attaching Cable Clamp
OPF-TH1000-A/OPF-RH1000-A User’s Guide Reference: Attaching cable clamp HDMI cables and connectors do not normally have a lock mechanism. Use the supplied cable clamp to apply the HDMI cable to the OPF-H1000. Pull up the part pointed by the short arrow and separate the bar and ring parts. -
Page 20: Specifications
OPF-TH1000-A/OPF-RH1000-A User’s Guide Specifications Pin assignments of HDMI Type A connector TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved (N.C.*) - Page 21 (Ground) N.C. (No connection) N.C. (TX request) (RX request) N.C. (No connection) N.C. Pin assignments when connected to an IDK product Note: Make sure to use a cross cable. Product of other OPF-H1000-A side manufacturers Pin No. Signal Signal N.C.
-
Page 22: Specifications
OPF-TH1000-A/OPF-RH1000-A User’s Guide Specifications ■Specifications OPF-TH1000 (Transmitter) OPF-RH1000 (Receiver) Input signals 1 channel HDMI signal* 1 channel Optical signal for extension HDMI Type A (19 pin) connector (female)* HDCP, CEC (Pass through) TMDS Single Link Output signals 1 channel Digital optical signal for... - Page 23 OPF-TH1000-A/OPF-RH1000-A User’s Guide (This is the quarter rack size; projection portion is not included.) Weight 0.4 kg/0.88 lbs For use: 0°C to + 40°C/104°F; for storage:-20°C/ 4°F to +80°C/176°F Temperature Humidity For use and storage: 20% to 90% (Non condensing) Shipping AC adapter with spring type lock (1.2 m/3.94 feet), cable clamp...
-
Page 24: Troubleshooting
OPF-TH1000-A/OPF-RH1000-A User’s Guide Troubleshooting In case this device does not work correctly, please check the following items first. Refer to manuals of connected devices as well, since they may possibly be the cause of the problem. • Are this device and the connected devices turned on normally? •... - Page 25 OPF-TH1000-A/OPF-RH1000-A User’s Guide OPF-TH1000-A/OPF-RH1000-A User’s Guide Ver. 1.0.0 Issued on: 11 June 2015 IDK Corporation Headquarters 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http://www.idk.co.jp/en/index.html Product information Arvanics Corporation Support 3-8-3-3F Yamato Higashi, Yamato-shi, Kanagawa-pref.
