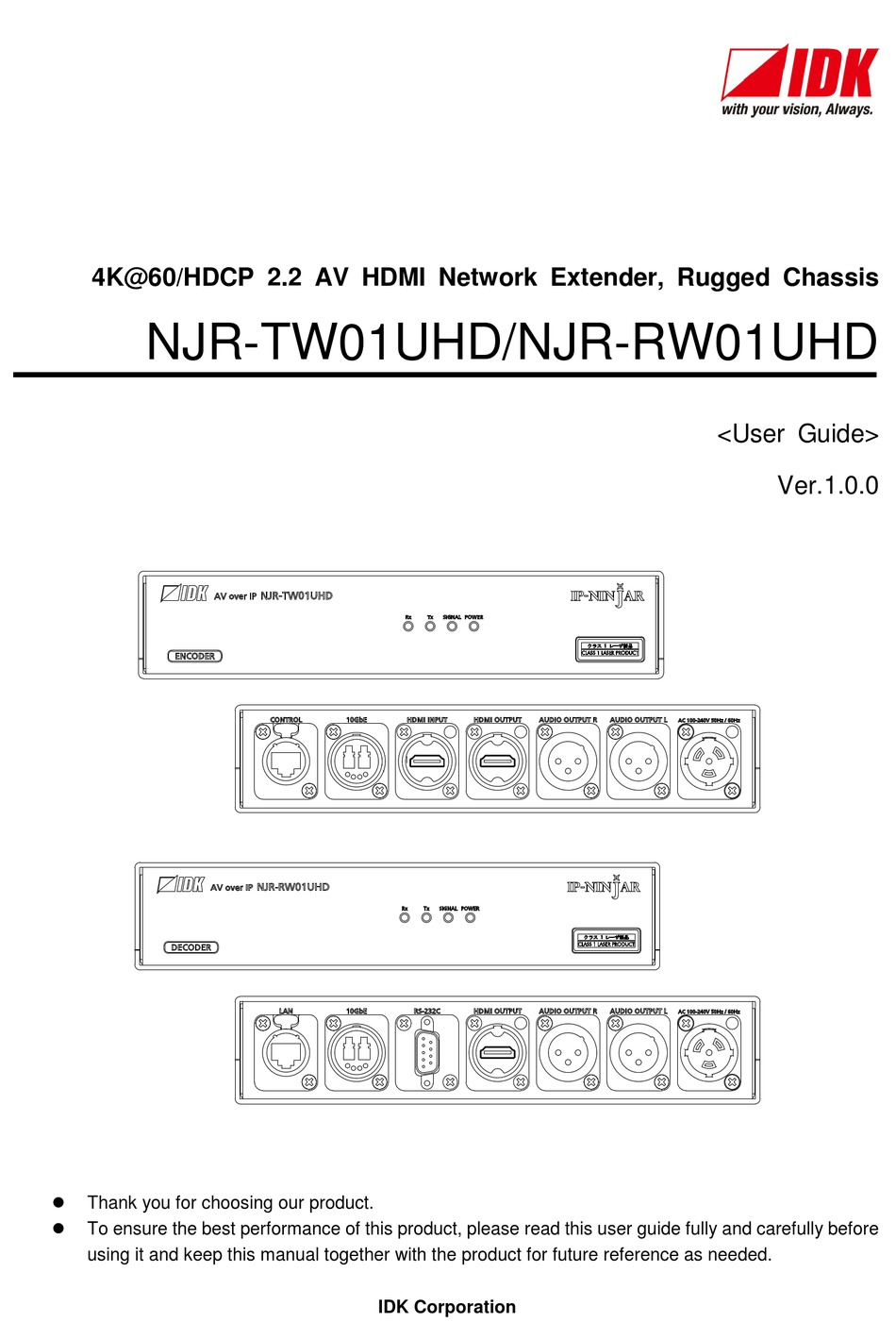

4K@60/HDCP 2.2 AV HDMI Network Extender, Rugged Chassis
NJR-TW01UHD/NJR-RW01UHD
Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.
IDK Corporation
<User Guide>
Ver.1.0.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IDK NJR-TW01UHD
Summary of Contents for IDK NJR-TW01UHD
- Page 1 4K@60/HDCP 2.2 AV HDMI Network Extender, Rugged Chassis NJR-TW01UHD/NJR-RW01UHD <User Guide> Ver.1.0.0 Thank you for choosing our product. To ensure the best performance of this product, please read this user guide fully and carefully before using it and keep this manual together with the product for future reference as needed.
- Page 2 etherCON, opticalCON, and powerCON are registered trademarks of Neutrik AG. Connection Reset and IP NINJAR are registered trademarks of IDK Corporation in Japan. All other company and product names mentioned in this manual are either registered trademarks or...
- Page 3 Some information contained in this User guide such as exact product appearance, diagrams, menu operations, communication commands, and so on may differ depending on the product version. This User guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...
-
Page 4: Safety Instructions
NJR-TW01UHD/NJR-RW01UHD User Guide Safety Instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and cautions as detailed in this document. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious... - Page 5 ● Do not repair, modify or disassemble. Since the product includes circuitry that uses potentially lethal, high voltage levels, disassembly by unauthorized personnel may lead to the risk of fire or electric shock. For internal inspection or repair, contact your IDK Do not representative.
- Page 6 Unplug If you continue to use the product under these conditions, it may increase the risk of electrical shock or fire. For maintenance and repair, contact your IDK representative. ● Unplug immediately if water or other objects are directed inside.
- Page 7 NJR-TW01UHD/NJR-RW01UHD User Guide Caution ■ For installing and connecting products: ● Do not place the product in a location where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures while under operation, it may affect the product’s performance and reliability and may increase the risk of fire.
-
Page 8: Table Of Contents
About this Guide ............................10 Included items ............................11 Product outline ............................12 Features ..............................13 Panels ..............................15 NJR-TW01UHD (Encoder) ......................... 15 NJR-RW01UHD (Decoder) ......................... 17 System Configuration Example........................ 19 Used as Network Extender ......................... 19 Used as Extender ..........................20 Precautions .............................. - Page 9 NJR-TW01UHD/NJR-RW01UHD User Guide Information ............................50 9.7.1 Input status ..........................50 9.7.2 Output status ..........................51 9.7.3 Monitor EDID ..........................52 9.7.4 Version ............................53 10 Product specification ..........................54 11 Troubleshooting ............................55...
-
Page 10: About This Guide
NJR-TW01UHD/NJR-RW01UHD User Guide 1 About this Guide This user guide explains how to use the NJR-W01UHD and about external control through the IP-NINJAR Configurator and NJR-CTB. For other products of IP-NINJAR series, see “[Table 1.1] Document for IP-NINJAR products”. Chapter 8... -
Page 11: Included Items
2 Included items Ensure that all items illustrated below are included in the package. If any items are missing or damaged, please contact IDK. Since AC adapter and cables are not included, use the following adapter and cables: For AC adapter cable Connector: Neutrik’s “NAC3FX-W”... -
Page 12: Product Outline
NJR-RW01UHD Monitor [Fig. 3.1] HDMI signals transmission Note: Use the NJR-W01UHD with a combination of NJR-TW01UHD and NJR-RW01UHD or other IP-NINJAR products. It cannot be connected to OPF or FDX series products. ■ LAN model and RS-232C model NJR-TW01UHD NJR-RW01UHD... -
Page 13: Features
Singlemode fiber (OS1) : Up to 6.21 mi. (10 km) (up to 24.85 mi. (40 km, optional)) ■ Audio ・ De-embedding ■ Communication ・ Bidirectional RS-232C for NJR-TW01UHD (RS-232C supported model) and NJR-RW01UHD ・ LAN for NJR-TW01UHD (LAN supported model) and NJR-RW01UHD ■ Network ・ 10 Gb switch allows; extension, distribution, matrix switching, videowall, and Multiview ・... - Page 14 16 ft. (5 m): 1080p@60 (when High-speed HDMI cable is used) 10 ft. (3 m): 4K@60 (when Premium HDMI cable is used) Audio D: Digital audio [Fig. 4.1] NJR-TW01UHD (RS-232C supported model) NJR-TW01UHD (Encoder) Up to 16 ft. (5 m) Video/Audio D Digital video/audio Up to 16 ft.
-
Page 15: Panels
NJR-TW01UHD/NJR-RW01UHD User Guide 5 Panels 5.1 NJR-TW01UHD (Encoder) ⑦ ■RS-232C model ⑤ ② ③ ④ ① ⑩ ■LAN model ⑥ ⑨ ⑧ [Fig. 5.1] NJR-TW01UHD drawing... - Page 16 Fixing hole M10-size hole for fixing the NJR-TW01UHD Up to 1.2 in. (30 mm) bolt can be used ⑨ Security slot Keeps the NJR-TW01UHD from any risk of falling over ⑩ Power supply connector Neutrik’s powerCON connector Connects to AC adapter...
-
Page 17: Njr-Rw01Uhd (Decoder)
NJR-TW01UHD/NJR-RW01UHD User Guide 5.2 NJR-RW01UHD (Decoder) ⑥ ① ④ ③ ⑤ ② ⑨ ⑧ ⑦ [Fig. 5.2] NJR-RW01UHD drawing... - Page 18 NJR-TW01UHD/NJR-RW01UHD User Guide [Table 5.2] NJR-RW01UHD features Feature Description ① I/O for extension Neutrik’s opticalCON DUO series I/O connector of optical signal connector Connects to IP-NINJAR encoder or 10GbE switch over fiber optic cable ② HDMI output connector Neutrik’s output connector for HDMI signals Connects to a sink device, such as a LCD monitor ③...
-
Page 19: System Configuration Example
NJR-TW01UHD/NJR-RW01UHD User Guide 6 System Configuration Example This chapter cites two system configuration examples. 6.1 Used as Network Extender Using the NJR-W01UHD and other IP-NINJAR encoders/decoders with a 10 GbE switch enables extending, distributing, matrix switching, videowall, and multiview. ① Video and audio signals are input from the Blu-ray player to the HDMI input connector of encoders ②... -
Page 20: Used As Extender
Singlemode fiber (OS1) : Up to 6.21 mi. (10 km) Blu-ray player Singlemode fiber (OS1) : Up to 24.85mi. (40 km, optional) ② Projector HDMI/DVI Up to 10 ft. (3 m) 4K@60 4K local monitor [Fig. 6.2] NJR-TW01UHD and NJR-RW01UHD... - Page 21 Blu-ray player ① Multimode fiber (OM3) : Up to 984 ft. (300 m) Singlemode fiber (OS1) : Up to 6.21 mi. (10 km) Singlemode fiber (OS1) : Up to 24.85mi. (40 km, optional) ② [Fig. 6.4] NJR-TW01UHD and NJR-R04HD: Videowall...
-
Page 22: Precautions
・ Do not block vent holes. To provide adequate ventilation, maintain sufficient clearances around the NJR-W01UHD (1.2 in. (30 mm) or more) ・ When the NJR-W01UHD needs to be mounted in an enclosed space or an EIA rack without using IDK’s rack mounting hardware (RM-NJRW01), ensure that a sufficient ventilation/cooling system is provided to keep the ambient temperature at 104°F (40°C) or lower. - Page 23 NJR-TW01UHD/NJR-RW01UHD User Guide ■ Attaching truss bracket and the like (e.g. For event/staging) 1. Remove the two bolts from the NJR-W01UHD shown below using a 0.2 in. (5 mm) hex wrench. 2. Attach a truss bracket. Please prepare the truss bracket and its bolts (Not included in the NJR-W01UHD).
- Page 24 1. Remove the bottom plate by unscrewing four (4) original screws from the bottom plate of the NJR-TW01UHD. 2. Mount the NJR-TW01UHD on the rack shelf and secure the device using the four (4) screws that are unscrewed in step 1.
-
Page 25: Cabling
NJR-TW01UHD/NJR-RW01UHD User Guide 7.2 Cabling When connecting the NJR-W01UHD to external devices, please observe the following precautions. ・ Read manuals for the external devices ・ Before connecting cables to the NJR-W01UHD or an external device, dissipate static electricity by touching grounded metal such as equipment racks before handling signal cables. Failure to observe this precaution may result in ESD (electrostatic discharge) damage ・... -
Page 26: Fiber Optic Cable For Extension
Connect the output connector of this device to the input connector of the target device Connect the input connector of this device to the output connector of the target device NJR-TW01UHD : The target device should be the NJR-RW01UHD and other IP-NINJAR decoders or 10 GbE switch... -
Page 27: Optical Signal
NJR-TW01UHD/NJR-RW01UHD User Guide ・ To polish connectors: For SFP+ optical transceiver for multimode : PC polishing is recommended. For SFP+ optical transceiver for singlemode : UPC polishing is recommended. Note: APC polishing is not supported. ・ Extension distance varies depending on attenuation of the fiber, connector and other contact portions ・... -
Page 28: Connecting Rs-232C Cable
N.C. N.C. (Not Connected)* *Not used [Fig. 7.8] RS-232C pin assignment (connecting to PC) ■ Connecting NJR-W01UHD to IDK’s products Use a cross cable to connect the NJR-W01UHD to an IDK’s product. NJR-W01UHD IDK’s products Pin # Signal Signal ... - Page 29 NJR-TW01UHD/NJR-RW01UHD User Guide ■ Connecting NJR-W01UHD to another device requiring straight connection Use a straight cable to connect the NJR-W01UHD to other devices requesting straight connection. NJR-W01UHD Other deivces Pin # Signal Signal N.C. N.C. (Not Connected)* TD (Receive Data) ...
-
Page 30: Connecting Lan Cable
*Not used [Fig. 7.11] LAN connector Make sure not to form a loop by the NJR-TW01UHD (LAN model)/NJR-RW01UHD when connecting a LAN cable to the NJR-TW01UHD (LAN model)/NJR-RW01UHD. The NJR-TW01UHD (LAN model)/NJR-RW01UHD constantly send broadcast packet in order to notify status. -
Page 31: Basic Operation
The NJR-W01UHD can be set from commands over RS-232C communication and NJR-CTB or IP-NINJAR Configurator. Commands cannot be controlled from RS-232C communication, which is used for command transmission (pass through). Perform command control of NJR-TW01UHD (RS-232C model) from NJR-RW01UHD or IP-NINJAR device connected to 10 GbE switch. PC for control (For IP-NINJAR Configurator) -
Page 32: Controlled By Ip-Ninjar Configurator
The NJR-W01UHD can be controlled from IP-NINJAR Configurator by connecting a control device to the NJR-TW01UHD (LAN model) or NJR-RW01UHD via a LAN cable. The following settings can be set from the GUI: selecting output audio, setting RS-232C, setting LAN, resetting settings, and rebooting the NJR-W01UHD. -
Page 33: Controlled By Njr-Ctb
NJR-RW01UHD The LAN connector of the NJR-CTB should be connected to the LAN connector of the NJR-TW01UHD (LAN model)/NJR-RW01UHD or the 10 GbE switch PC for control should be connected to the MAINTENANCE connector of the NJR-CTB or the LAN connector of the NJR-TW01UHD (LAN model)/NJR-RW01UHD... -
Page 34: Setting Items
NJR-TW01UHD/NJR-RW01UHD User Guide 8.3 Setting items Some setting items can be controlled through command/GUI operation; the others cannot be controlled. [Table 8.1] Setting items Command: Command input, GUI: GUI operation, WEB&C: WEB browser and command input, No: Not supported NJR-TW01UHD... -
Page 35: Initialization
Configurator or NJR-CTB over LAN. When initialization completes, the NJR-TW01UHD or NJR-RW01UHD reboots with new settings automatically. Initialize tings of the NJR-TW01UHD (RS-232C model) can be initialized from NJR-RW01UHD or IP-NINJAR device connected to 10 GbE switch. Note: Once setting values are initialized, they cannot be restored. -
Page 36: Setting
NJR-TW01UHD/NJR-RW01UHD User Guide 9 Setting The following items of the NJR-W01UHD can be set using IP-NINJAR Configurator and NJR-CTB. Refer to NJR-CTB User Guide for the following operations: Setting channel information, selecting input/output channel, and operating preset memory. [Table 9.1] Setting items... -
Page 37: Setting Input
Use this menu to set the monitoring time. This is the interval beginning when a source device is not outputting a signal; and ending at the point when the NJR-TW01UHD requests an output from that source device. -
Page 38: Hdcp Input Enabled/Disabled
This process takes place with some source device, even if the content being presented is not copyright protected. The NJR-TW01UHD is HDCP compliant, if it is connected to a display device that does not support HDCP, even unprotected AV content may not be successfully displayed. Under these circumstances and if the content is indeed not protected, the problem can be solved by setting this menu to “DISABLE.”... -
Page 39: Setting Output
You can set the color space to be sent to the sink device. The sink device selects the best color space for the color space of the input video automatically, but if for some reason the sink device cannot select the color space, set the desired color space in NJR-TW01UHD or NJR-RW01UHD. -
Page 40: Hot Plug Ignoring Duration
NJR-TW01UHD/NJR-RW01UHD User Guide NJR-TW01UHD/NJR-RW01UHD 9.2.3 Hot plug ignoring duration Time for ignoring the video output request signals sent from the sink device. If the request signals are repeated in a short cycle, the NJR-W01UHD processes video output from the first cycle. -
Page 41: Setting Audio
You can enable or disable the audio output mute. Once you mute NJR-TW01UHD, all audio of NJR-RW01UHD connected through the 10 GbE switch can be muted. If digital audio is output from the audio output connector of NJR-RW01UHD, these output audio is also muted. -
Page 42: Selecting Output Audio
NJR-TW01UHD/NJR-RW01UHD User Guide 9.3.2 Selecting output audio NJR-RW01UHD You can select the audio that is output from the analog audio output connector. NJR-TW01UHD NJR-RW01UHD Audio A or D Audio A or D Video/Audio D HDMI transmitter conversion HDMI receiver EDID emulator... -
Page 43: Setting Edid
NJR-TW01UHD/NJR-RW01UHD User Guide 9.4 Setting EDID 9.4.1 EDID resolution NJR-TW01UHD You can set the desired resolution that is output from the source device. Setting value [Table 9.2] Maximum resolution of EDID Max. resolution Pixel Standard Remarks － － Copied EDID If no acquired data, “2160p (50/59.94/60, 4:4:4)”... - Page 44 NJR-TW01UHD/NJR-RW01UHD User Guide Notes: ・ For 4096×2160: The source device may select 3840×2160 (30p, YCbCr 4:4:4) depending on the EDID definition First set built-in EDID and then select 4096×2160 in the source device side ・ For YCbCr4:2:0: The source device may select 3840×2160 (30p, YCbCr 4:4:4) depending on the EDID definition First set built-in EDID and then select YCbCr 4:2:0 in the source device side [Table 9.3] Maximum resolution and supported pixels...
-
Page 45: Copying Edid
9.4.2 Copying EDID NJR-TW01UHD EDID of the sink device connected to NJR-TW01UHD or NJR-RW01UHD can be loaded and registered, and the copied EDID can be treated in the same way as the internal EDID. In order to copy the EDID of the sink device connected to NJR-RW01UHD, set this item from the IP-NINJAR Configurator or NJR-CTB. -
Page 46: Deep Color
NJR-TW01UHD/NJR-RW01UHD User Guide 9.4.4 Deep Color NJR-TW01UHD You can set the color depth that is output from the source device. Setting value 24-BIT COLOR [Default] 30-BIT COLOR 36-BIT COLOR Note: If you select “30-BIT COLOR” or “36-BIT COLOR”, the transmission clock speed increases. Noise may occur if a bad-quality cable or long cable is connected. -
Page 47: Speaker Configuration
NJR-TW01UHD/NJR-RW01UHD User Guide 9.4.6 Speaker configuration NJR-TW01UHD You can set the speaker configuration of multi-channel audio. Once changing the number of speaker, the configuration is automatically set as follows. You can change the default configuration, and you can also set each speaker individually. -
Page 48: Setting Rs-232C
NJR-TW01UHD/NJR-RW01UHD User Guide 9.5 Setting RS-232C Only the NJR-TW01UHD (RS-232C model) and NJR-RW01UHD support RS-232C communication settings. NJR-TW01UHD/NJR-RW01UHD 9.5.1 RS-232C communication The same setting should be set for RS-232C communication of devices. Note: For communicating between the NJR-TW01UHD (RS-232C model)/NJR-RW01UHD and connected device, only RD (Received data) and TD (Transmitted data) are sent. -
Page 49: Setting Lan
9.6 Setting LAN 9.6.1 LAN NJR-TW01UHD/NJR-RW01UHD With NJR-TW01UHD (LAN model) and NJR-RW01UHD, the IP address can be obtained automatically by DHCP (Dynamic Host Configuration Protocol). Static IP address, subnet mask, and default gateway can also be configured manually. Setting value [Table 9.7] LAN setting items... -
Page 50: Information
LPCM signal is input. Sampling frequency COMPRESSED AUDIO Compressed audio signal (e.g. Dolby Digital, DTS) is input. (Since NJR-TW01UHD does not determine detailed format, the same value is displayed for all compressed audio.) NO AUDIO No signal is input. [Table 9.12] HDCP... -
Page 51: Output Status
NJR-TW01UHD/NJR-RW01UHD User Guide 9.7.2 Output status NJR-TW01UHD/NJR-RW01UHD You can display the status of the sink device connected to the HDMI output connector. Information to be displayed [Table 9.13] HDCP authentication Value to be displayed Description HDCP 1.4 SUPPORT HDCP 1.4 authorized HDCP 2.2 SUPPORT... -
Page 52: Monitor Edid
NJR-TW01UHD/NJR-RW01UHD User Guide 9.7.3 Monitor EDID NJR-TW01UHD/NJR-RW01UHD You can display the EDID of the sink device connected to the HDMI output connector. Information to be displayed [Table 9.16] Monitor’s EDID Displayed value Displayed value Example Remarks － Monitor name MSD-5402 If no monitor is connected, “UNCONNECTED”... -
Page 53: Version
NJR-TW01UHD/NJR-RW01UHD User Guide 9.7.4 Version NJR-TW01UHD/NJR-RW01UHD You can display the model number and firmware version. Information to be displayed [Table 9.17] Version Item Example Model number NJR-TW01UHD Firmware version 1.00 Communication command @GIV Getting version... -
Page 54: Product Specification
NJR-TW01UHD/NJR-RW01UHD User Guide 10 Product specification Item NJR-TW01UHD (Encoder) NJR-RW01UHD (Decoder) 1 input 1 input HDMI (*1)/DVI 1.0 Digital signal for extension TMDS single link Format: IP-NINJAR protocol Input HDCP 1.4/2.2, HDR (*2) RS-232C, LAN EDID emulation Connector: Neutrik’s LC (opticalCON DUO series) Connector: Neutrik’s female HDMI Type A (19-pin) (*3) -
Page 55: Troubleshooting
NJR-TW01UHD/NJR-RW01UHD User Guide 11 Troubleshooting In case the NJR-W01UHD does not work correctly, please check the following items first. Also refer to manuals for connected devices as well, since they may possibly be the cause of the problem. ・ Are the NJR-W01UHD and all devices plugged in and powered on normally? ・... - Page 56 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-259-6920 FAX: +81-46-259-6930 Email: info@arvanics.com URL: http://www.arvanics.com Information in this document is subject to change without notice. ©2019 IDK Corporation, all rights reserved. All trademarks mentioned are the property of their respective owners.
