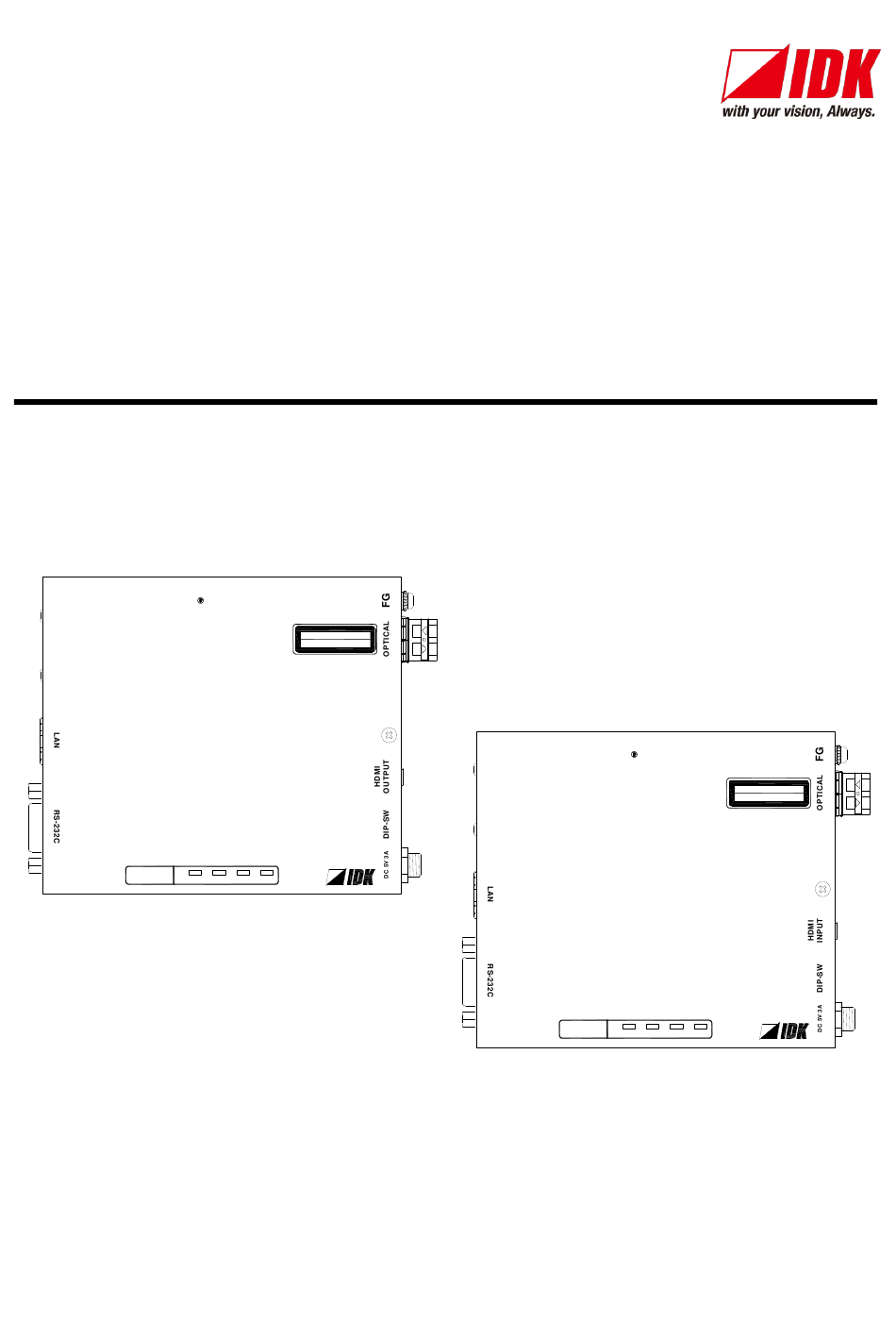

4K-compatible HDMI Fiber Optic Extender
OPF-TH2000/OPF-RH2000
User's Guide Ver.1.0.0
OPTICAL Rx for HDMI
OPF-RH2000
クラス 1 レーザ製品
CLASS 1 LASER PRODUCT
OPTICAL Tx for HDMI
OPF-TH2000
クラス 1 レーザ製品
CLASS 1 LASER PRODUCT
Rx
STATUS
POWER
SIGNAL
TX
RX
Tx
STATUS
POWER
SIGNAL
TX
RX
● Thank you for choosing our product.
● To ensure the best performance of this product, please read this User's Guide fully and carefully before
using it and keep this manual beside the product.
IDK Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPF-TH2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IDK OPF-TH2000

  • Page 1 4K-compatible HDMI Fiber Optic Extender OPF-TH2000/OPF-RH2000 User’s Guide Ver.1.0.0 OPTICAL Rx for HDMI OPF-RH2000 クラス 1 レーザ製品 CLASS 1 LASER PRODUCT OPTICAL Tx for HDMI OPF-TH2000 クラス 1 レーザ製品 CLASS 1 LASER PRODUCT STATUS POWER SIGNAL STATUS POWER SIGNAL ● Thank you for choosing our product.
  • Page 2 OPF-TH2000/OPF-RH2000 User’s Guide Trademarks ● The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. ● All other company and product names mentioned in this manual are either registered trademarks or...
  • Page 3 Some of the contents in this User’s Guide such as appearance diagrams, menu operations, communication commands, and so on may differ depending on the version of the extender.  This User’s Guide is subject to change without notice. You can download the latest version from IDK’s website at: http: //www.idk.co.jp/en/index.html The lasers in this product meet Class 1 Laser Safety per FDA/CDRH and クラス...
  • Page 4 OPF-TH2000/OPF-RH2000 User’s Guide Safety instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and cautions as detailed in this document. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious...
  • Page 5 The product is intended to be installed by skilled technicians. For installation, please contact a system integrator or IDK. Otherwise, it may cause fire, electric shock, injury, or property damage. Set the power plug in a convenient place to unplug easily.
  • Page 6 OPF-TH2000/OPF-RH2000 User’s Guide Caution Do not place the product in any place where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures, it may cause fire. Do not place the product in humid, oil smoke, or dusty place.
  • Page 7: Table Of Contents

    OPF-TH2000/OPF-RH2000 User’s Guide Table of Contents Included items ............................8 Product outline ............................9 Features ..............................10 Part names and descriptions ........................11 Transmitter ............................11 Receiver .............................. 12 Connection ............................... 13 Preparation ............................13 Precautions ............................15 5.2.1 Installation ........................... 15 5.2.2...
  • Page 8: Included Items

    Make sure all items below are included in the package. If any items are missing or damaged, please contact IDK. “OPF-H2000” mentioned in this manual refers to OPF-TH2000 and OPF-H2000 set. ■ Transmitter (OPF-TH2000) ● OPF-TH2000 (main unit) x 1 ●...
  • Page 9: Product Outline

    OPF-TH2000/OPF-RH2000 User’s Guide 2 Product outline Caution: The OPF-H2000 outputs continuous invisible light, which may be harmful to your eyes. Please follow the cautions below. ● Do not look into the rear panel fiber optic cable connectors or into the fiber optic cables themselves.
  • Page 10: Features

    OPF-TH2000/OPF-RH2000 User’s Guide 3 Features ■ Video ● Maximum resolution: 4K@30 or 4K@60 (4:2:0) ● HDCP1.4 (Pass through) ● Transmission distance Multimode fiber (OM3) : 150 m/492.13 feet Singlemode fiber (OS1) : 1.4 km/ 0.87 mile ■ Communication ● RS-232C bidirectional communication ●...
  • Page 11: Part Names And Descriptions

    OPF-TH2000/OPF-RH2000 User’s Guide 4 Part names and descriptions 4.1 Transmitter ④ OPTICAL Tx for HDMI OPF-TH2000 ⑤ クラス 1 レーザ製品 CLASS 1 LASER PRODUCT ⑥ ⑦ ① ⑧ ⑨ ② ⑩ STATUS POWER SIGNAL ③ ⑪ Panel drawing (Transmitter) Part name Description ①...
  • Page 12: Receiver

    OPF-TH2000/OPF-RH2000 User’s Guide 4.2 Receiver ④ OPTICAL Rx for HDMI OPF-RH2000 ⑤ クラス 1 レーザ製品 CLASS 1 LASER PRODUCT ⑥ ⑦ ① ⑧ ⑨ ② ⑩ STATUS POWER SIGNAL ③ Panel drawing (Receiver) Part name Description ① LAN port Port for LAN signals ②...
  • Page 13: Connection

    ● Fiber optic cable (2 cores, LC connector) ● LAN cable (RJ-45 connector) ● RS-232C cable (D-sub9 pin, female) ■ HDMI Cable If the external device has a DVI connector, use a proper cable. Followings are recommended cables from IDK. Model number Length HDSS-005 0.5 m/1.64 ft.
  • Page 14 ■ Fiber optic cable ● Use a duplex fiber cable having LC connectors for both ends. ● Use a cable whose length complies with the extension standard. 【See:5.2.3】 ● IDK can provide high-performance optic cable. [High-performance optic cable] Part number Part number...
  • Page 15: Precautions

    If you have to install the product to an EIA rack mount in closed space, add a ventilation to keep the ambient temperature of 40 degrees C/104 degrees F or less. (Exception: Installing to IDK’s Quarter rack, RM-42HQ) If inadequately vented, the life of parts may be shortened and operations may be affected.
  • Page 16: Fiber Optic Cable

    OPF-TH2000/OPF-RH2000 User’s Guide 5.2.3 Fiber optic cable To ensure the best performance of a fiber optic cable for a long-haul transmission, select and connect the proper fiber optic cable correctly. ● Connect a fiber optic cable to the OPF as follows: Optical output connector of the transmitter &...
  • Page 17: Cascade Connection

    ● Repeater that only supports HDCP pass through (such as some switchers, boosters and so on) is included ● Another set of OPF-TH/RH2000 (IDK’s fiber optic cable extender supporting HDCP signals) 5.3 Settings Setting the DIP switch and input equalizer 5.3.1 Setting DIP switch...
  • Page 18: Setting Input Equalizer (Only Transmitter)

    OPF-TH2000/OPF-RH2000 User’s Guide OFF: Transmits the detection when the Hot Plug Detect signals of the sink device continue to change for 0.1 second or longer. ON : Transmits the detection when the Hot Plug Detect signals of the sink device continue to change for 1 second or longer (for 0.9 second or shorter, it is not transmitted).
  • Page 19: Typical Application Example

    Peripheral device control (such as projectors) and Ethernet communication will be available by using a control device (such as PCs). Note: The OPF-TH2000 must be paired with OPF-RH2000. The OPF-H2000 cannot be connected to an I/O slot board of the FDX series or other models of the OPF series.
  • Page 20: Specification

    OPF-TH2000/OPF-RH2000 User’s Guide 6 Specification 6.1 Pin assignments 6.1.1 HDMI Type A connector Pin # Signal name Pin # Signal name TMDS data 2+ TMDS clock+ TMDS data 2 shield TMDS clock shield TMDS data 2- TMDS clock- TMDS data 1+ TMDS data 1 shield spare (N.C.*)
  • Page 21: Connector

    OPF-TH2000/OPF-RH2000 User’s Guide 6.1.2 RJ-45 connector 8 pin RJ-45 modular connector Signal name Pin # MDI-X 1000BASE-T 100BASE-TX/10BASE-T 1000BASE-T 100BASE-TX/10BASE-T TRX+ (Bi-directional pair+) TX+ (Transmit data+) TRX+ (Bi-directional pair+) RX+ (Receive data+) TRX- (Bi-directional pair-) TX- (Transmit data-) TRX- (Bi-directional pair-)
  • Page 22: Rs-232C Connector

    (TX request) (RX request) N.C. N.C. (No connection) OPF-H2000 and PC are connected ■ Connecting to an IDK’s product Make sure to use a cross cable when connect to an IDK’s product. OPF-H2000 IDK’s product Pin No. Signal Signal N.C.
  • Page 23: Product Specification

    OPF-TH2000/OPF-RH2000 User’s Guide 6.2 Product specification Item Description Model number OPF-TH2000 (Transmitter) OPF-RH2000 (Receiver) Input 1 input/ HDMI (*1)  HDCP 1.4: Pass through  CEC: Pass through Number/Signal 1 input/Optical signal for extension Digital  TMDS Single Link  TMDS clock: 25 MHz to 297 MHz...
  • Page 24 OPF-TH2000/OPF-RH2000 User’s Guide (Quarter rack, not including projections) Weight 0.88 lbs./0.4 kg Operating temperature: 32°F to 104°F <0°C to +40°C> Temperature Storage temperature: -4°F to +176°F <-20°C to +80°C> Humidity Operating/Storage humidity: 20% to 90% (Non Condensing) (*1) HEC and ARC are not supported.
  • Page 25: Troubleshooting

    OPF-TH2000/OPF-RH2000 User’s Guide 7 Troubleshooting In case this device does not work correctly, please check the following items first. Refer to manuals of connected devices as well, since they may possibly be the cause of the problem.  Are this device and the connected devices turned on normally? ...
  • Page 26 Issued on: 30 October 2015 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http: //www.idk.co.jp/en/index.html IDK America Inc. 72 Grays Bridge Road Suite 1-C, Brookfield, CT 06804 TEL: +1-203-204-2445 Email: info@idkav.com URL: http: //www.idkav.com Europe IDK Europe GmbH Lise-Meitner-Str.
