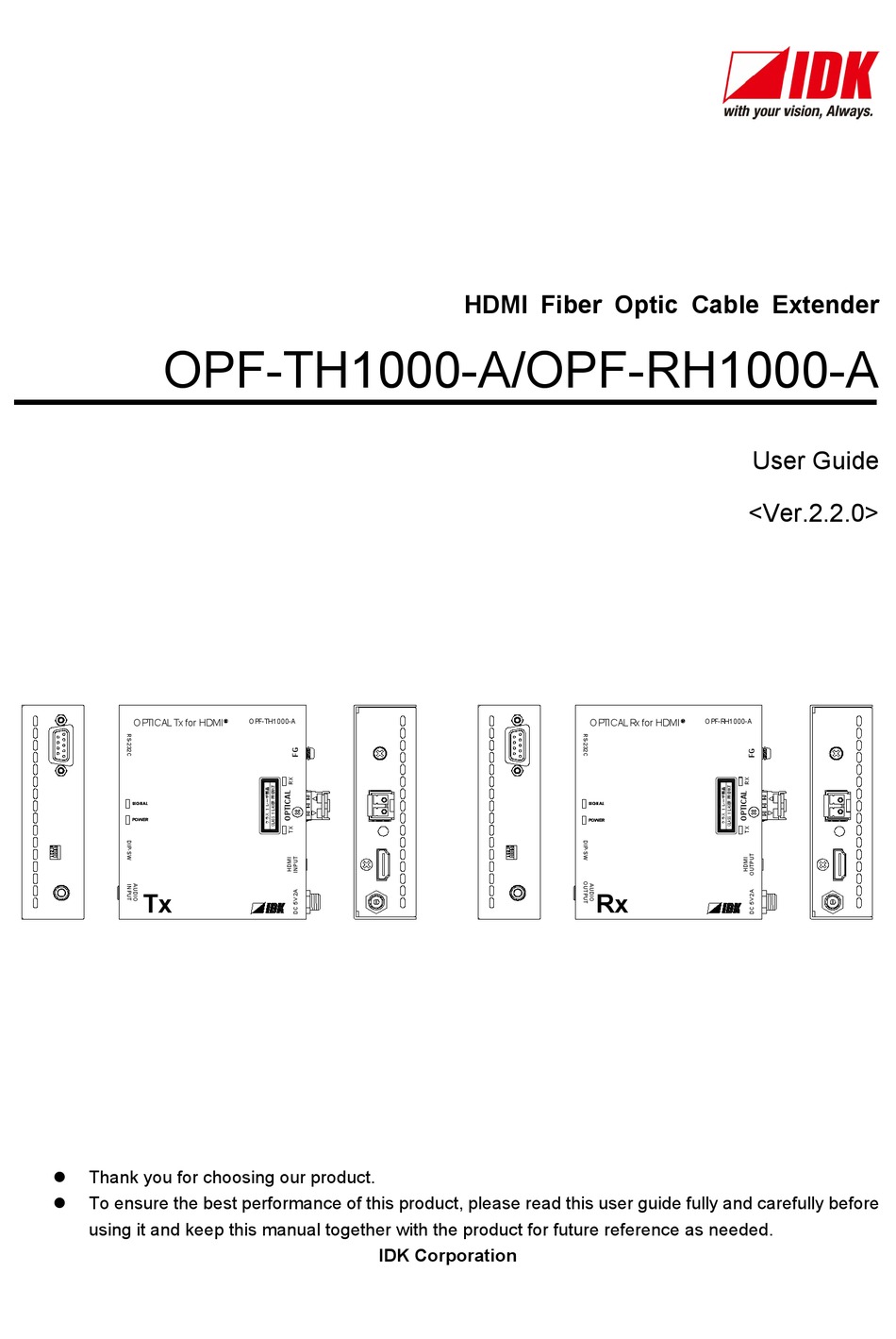

- Page 1 HDMI Fiber Optic Cable Extender OPF-TH1000-A/OPF-RH1000-A User Guide <Ver.2.2.0> O PTICAL Tx for HDMI O PTICAL Rx for HDMI O PF-TH1000-A O PF-RH1000-A SIGNAL SIGNAL SIGNAL SIGNAL POWER POWER POWER POWER Thank you for choosing our product. To ensure the best performance of this product, please read this user guide fully and carefully before ...
- Page 2 OPF-TH1000-A/OPF-RH1000-A User Guide Trademarks Blu-ray Disc and Blu-ray are trademarks of Blu-ray Disc Association. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- Page 3 Some information contained in this User guide such as exact product appearance, diagrams, menu operations, and so on may differ depending on the product version. This User guide is subject to change without notice. You can download the latest version from IDK’s website at: http: //www.idkav.com...
- Page 4 OPF-TH1000-A/OPF-RH1000-A User Guide Safety Instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and heed all warnings/cautions. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious...
- Page 5 ● Do not repair, modify or disassemble. Since the product includes circuitry that uses potentially lethal, high voltage levels, disassembly by unauthorized personnel may lead to the risk of fire or electric shock. For internal inspection or repair, contact your IDK Do not representative.
- Page 6 Unplug If you continue to use the product under these conditions, it may increase the risk of electrical shock or fire. For maintenance and repair, contact your IDK representative. ● Unplug immediately if water or other objects are directed inside.
- Page 7 OPF-TH1000-A/OPF-RH1000-A User Guide Caution ■ For installing and connecting products: ● Do not place the product in a location where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures while under operation, it may affect the product’s performance and reliability and may increase the risk of fire.
-
Page 8: Table Of Contents
OPF-TH1000-A/OPF-RH1000-A User Guide Table of contents Included items ............................9 Precautions for shipping ........................... 10 Product Outline ............................11 Features ..............................12 Panels ............................... 13 Transmitter (OPF-TH1000) ......................13 Receiver (OPF-RH1000) ........................14 Connection ............................... 15 Precautions ............................15 Application example ......................... 16 Cascade connection ......................... -
Page 9: Included Items
OPF-TH1000-A/OPF-RH1000-A User Guide 1 Included items Make sure all items below are included in the package. If any items are missing or damaged, please contact IDK. “OPF-H1000” mentioned in this manual refers to OPF-TH1000 and OPF-RH1000 set. ■ Transmitter (OPF-TH1000) ・... -
Page 10: Precautions For Shipping
OPF-TH1000-A/OPF-RH1000-A User Guide 2 Precautions for shipping The OPF-H1000 has an SFP optical transceiver that is vulnerable to damage caused by mishandling during shipment if it is improperly packaged. If, for any reason, you need to ship the device, remove the transceiver from the device and plug the dust cap into the transceiver and the connector. -
Page 11: Product Outline
OPF-TH1000-A/OPF-RH1000-A User Guide 3 Product Outline The OPF-H1000 is a transmitter and receiver set that enables HDMI signals to be transmitted long distance over fiber optical cables. Input signals are transmitted without quality deterioration since they are not compressed or processed. -
Page 12: Features
OPF-TH1000-A/OPF-RH1000-A User Guide 4 Features ■ Video ・ Up to 1080p/WUXGA (Reduced Blanking) ・ HDCP 1.4 (Pass-through) ・ Transmission distances Multimode fiber (OM3) : 984 ft. (300 m) Multimode fiber (OM4) : 0.62 mi. (1 km) Singlemode fiber (OS1) : 2.92 mi. (4.7 km), (Up to 6.21 mi. (10 km, optional)) ■... -
Page 13: Panels
OPF-TH1000-A/OPF-RH1000-A User Guide 5 Panels 5.1 Transmitter (OPF-TH1000) OPTICAL Tx for HDMI OPF-TH1000-A ⑤ ⑦ ② SIGNAL SIGNAL ⑧ POWER POWER ④ ⑨ ① ⑥ ③ [Fig. 5.1] Transmitter drawing [Table 5.1] Transmitter features Part name Description HDMI input connector Input connector for HDMI signals ①... -
Page 14: Receiver (Opf-Rh1000)
OPF-TH1000-A/OPF-RH1000-A User Guide 5.2 Receiver (OPF-RH1000) OPTICAL Rx for HDMI OPF-RH1000-A ⑤ ⑦ ② SIGNAL SIGNAL ⑧ POWER POWER ④ ⑨ ① ⑥ ③ [Fig. 5.2] Receiver drawing [Table 5.2] Receiver features Part name Description HDMI output connector Output connector for HDMI signals ①... -
Page 15: Connection
OPF-H1000 (1.2 in. (30 mm) or more) ・ When the OPF-H1000 needs to be mounted in an enclosed space or an EIA rack without using IDK’s rack mounting hardware (RM-SF, RM-SH), ensure that a sufficient ventilation/cooling system is provided to keep the ambient temperature at 104°F (40°C) or lower. -
Page 16: Application Example
OPF-TH1000-A/OPF-RH1000-A User Guide Notes: Supply power to the AC adapter only after all connections are completed. ・ ・ See “Troubleshooting” if video image is not displayed appropriately on the monitor connected to the OPF-H1000. 6.2 Application example Multimode fiber OM3: Up to 984 ft. (300 m) OM4: Up to 0.62mi. -
Page 17: Cascade Connection
・ Repeater that only supports HDCP pass through (such as some switchers, boosters and so on) is included ・ Another set of OPF-TH/RH1000 (IDK’s fiber optic cable extender supporting HDCP signals) Fiber... -
Page 18: Installing On Wall Or Ceiling
OPF-TH1000-A/OPF-RH1000-A User Guide 6.4 Installing on wall or ceiling You can install the OPF-H1000 on a wall or ceiling using the optional mounting plate (FP-100). 6.5 HDMI input/output cable Use 16 ft. (5 m) or shorter HDMI cables with Type A (male) connector whose pins are configured correctly. -
Page 19: Fiber Optical Cables For Long Distance Transmission
OPF-TH1000-A/OPF-RH1000-A User Guide 6.6 Fiber optical cables for long distance transmission ・ Use a duplex fiber or two simplex fiber cables with LC connectors at both ends. ・ Make sure that the fiber optical cable to be connected between the transmitter and receiver meets the standard of the desired transmission distance. -
Page 20: Sfp Optical Transceiver
OPF-TH1000-A/OPF-RH1000-A User Guide 6.7 SFP optical transceiver The fiber type and transmission distance vary depending on the SFP optical transceiver. [Table 6.1] Specification of standard SFP optical transceiver Item Multimode fiber Singlemode fiber Wave length 850 nm (Oxide VCSEL laser*) 1310 nm (Fabry-Perot laser*) OM3 : 984 ft. -
Page 21: Audio Transmission
OPF-TH1000 and OPF-RH1000 communicate using the original protocol. Select communication cables for the Transmitter and Receiver individually according to the specifications of each connected device. ● Connection with other IDK products: Cross cables. ● Connection with a computer: Cross bales... -
Page 22: Specifications
OPF-TH1000-A/OPF-RH1000-A User Guide 7 Specifications 7.1 Pin assignments of HDMI Type A connector [Table 7.1] HDMI Type A pin assignments TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0-... - Page 23 N.C. (Not Connected)* N.C. *Not used [Fig. 7.2] RS-232C pin assignment (connecting to PC) ■ Connecting OPF-H1000 to IDK’s products Use a cross cable to connect the OPF-H1000 to an IDK’s product. OPF-H1000 IDK’s products Pin # Signal Signal N.C.
-
Page 24: Specifications
OPF-TH1000-A/OPF-RH1000-A User Guide 7.3 Specifications Item OPF-TH1000-A (Transmitter) OPF-RH1000-A (Receiver) 1 input 1 input HDMI (*1)/DVI 1.0 Digital optical signal for extension TMDS single link RS-232C Input HDCP 1.4 (Pass-through) CEC (Pass-through) Connector: Female HDMI Type A (19-pin) (*2) 1 output... -
Page 25: Troubleshooting
OPF-TH1000-A/OPF-RH1000-A User Guide 8 Troubleshooting In case the OPF-H1000 does not work correctly, please check the following items first. Also refer to manuals for connected devices as well, since they may possibly be the cause of the problem. ・ Are the OPF-H1000 and all devices plugged in and powered on normally? ・... - Page 26 OPF-TH1000-A/OPF-RH1000-A User Guide User Guide of OPF-TH1000-A/OPF-RH1000-A Ver.2.2.0 Issued on: 18 March 2020 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http: //www.idkav.com IDK America Inc. 72 Grays Bridge Road Suite 1-C, Brookfield, CT 06804 TEL: +1-203-204-2445 Email: sales@idkav.com URL:...
