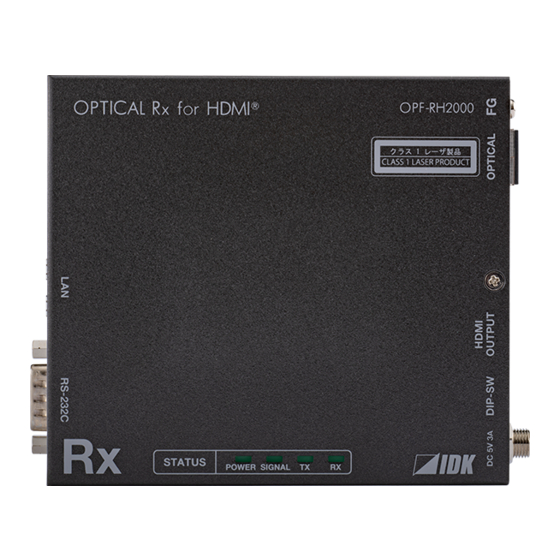

OPTICAL Rx for HDMI
Rx
STATUS
POWER
SIGNAL
Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.
OPF-TH2000/OPF-RH2000
OPF-RH2000
クラス 1 レーザ製品
CLASS 1 LASER PRODUCT
TX
RX
IDK Corporation
4K HDMI Fiber Optic Cable Extender
OPTICAL Tx for HDMI
Tx
STATUS
POWER
<User Guide>
Ver.1.5.0
OPF-TH2000
クラス 1 レーザ製品
CLASS 1 LASER PRODUCT
SIGNAL
TX
RX
Advertisement
Table of Contents
Related Manuals for IDK OPF-TH2000
Summary of Contents for IDK OPF-TH2000

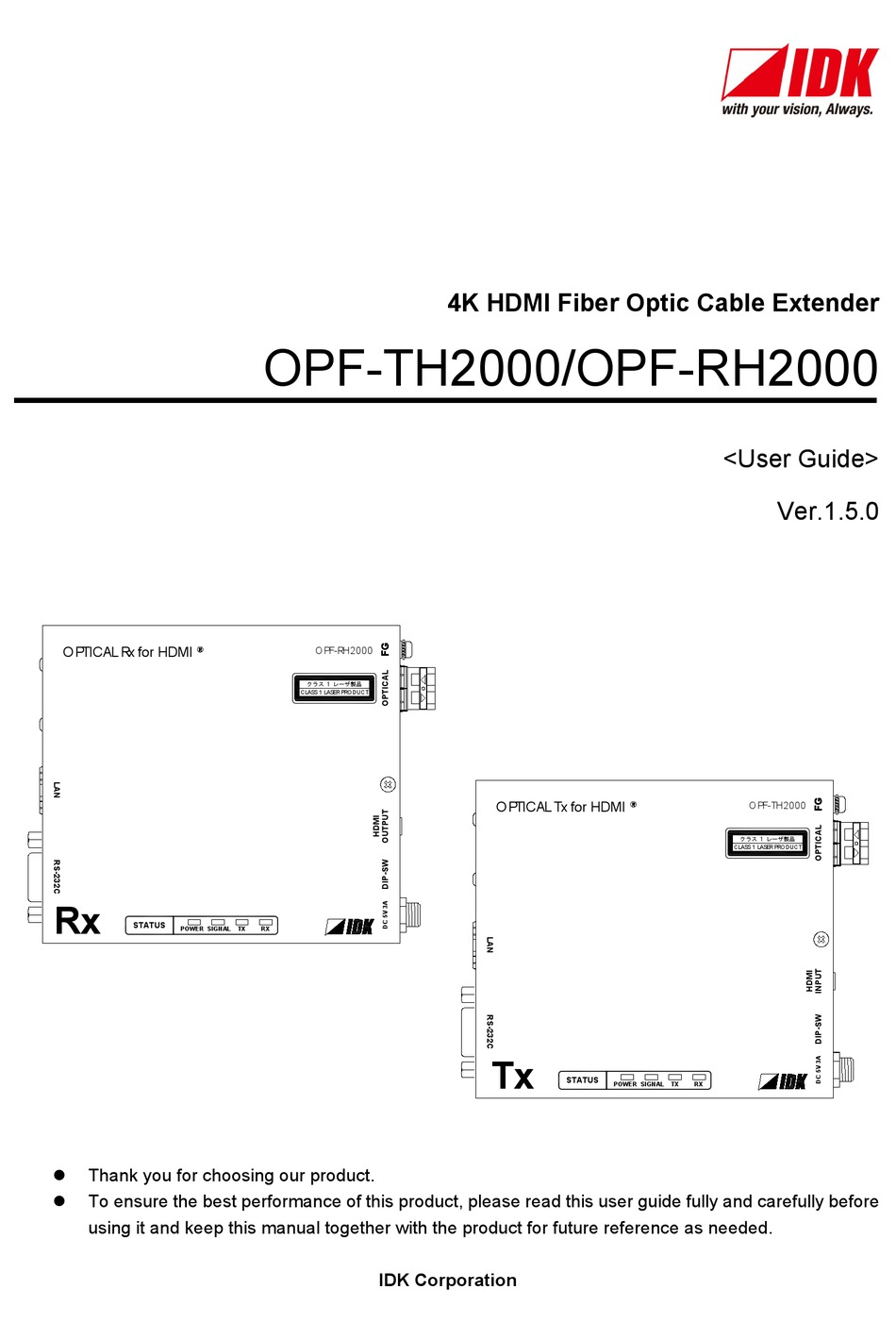

- Page 1 4K HDMI Fiber Optic Cable Extender OPF-TH2000/OPF-RH2000 <User Guide> Ver.1.5.0 OPTICAL Rx for HDMI OPF-RH2000 クラス 1 レーザ製品 CLASS 1 LASER PRODUCT OPTICAL Tx for HDMI OPF-TH2000 クラス 1 レーザ製品 CLASS 1 LASER PRODUCT STATUS POWER SIGNAL STATUS POWER SIGNAL Thank you for choosing our product.
- Page 2 OPF-TH2000/OPF-RH2000 User Guide Trademarks Blu-ray Disc and Blu-ray are trademarks of Blu-ray Disc Association. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- Page 3 Some information contained in this User guide such as exact product appearance, diagrams, menu operations, and so on may differ depending on the product version. This User guide is subject to change without notice. You can download the latest version from IDK’s website at: http: //www.idkav.com...
- Page 4 OPF-TH2000/OPF-RH2000 User Guide Safety Instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and heed all warnings/cautions. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious...
- Page 5 ● Do not repair, modify or disassemble. Since the product includes circuitry that uses potentially lethal, high voltage levels, disassembly by unauthorized personnel may lead to the risk of fire or electric shock. For internal inspection or repair, contact your IDK Do not representative.
- Page 6 Unplug If you continue to use the product under these conditions, it may increase the risk of electrical shock or fire. For maintenance and repair, contact your IDK representative. ● Unplug immediately if water or other objects are directed inside.
- Page 7 OPF-TH2000/OPF-RH2000 User Guide Caution ■ For installing and connecting products: ● Do not place the product in a location where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures while under operation, it may affect the product’s performance and reliability and may increase the risk of fire.
-
Page 8: Table Of Contents
OPF-TH2000/OPF-RH2000 User Guide Table of Contents Included items ............................9 Precautions for shipping .......................... 10 Product Outline ............................11 Features ..............................12 Panels ..............................13 Transmitter ............................13 Receiver .............................. 14 Precautions .............................. 15 Installation ............................15 6.1.1 Installing on wall or ceiling ......................15 Cabling .............................. -
Page 9: Included Items
OPF-TH2000/OPF-RH2000 User Guide 1 Included items Ensure all items below are included in the package. If any items are missing or damaged, please contact IDK. ■ Transmitter ・ OPF-TH2000 ・ SFP+ optical transceiver x1 (MM/SM model only) ・ AC adapter with screw locking mechanism (5.9 ft. (1.8 m)) ・... -
Page 10: Precautions For Shipping
OPF-TH2000/OPF-RH2000 User Guide 2 Precautions for shipping The OPF-TH2000/OPF-RH2000 has an SFP+ optical transceiver that is vulnerable to damage caused by mishandling during shipment if it is improperly packaged. If, for any reason, you need to ship the device, remove the transceiver from the device and plug the dust cap into the transceiver and the connector. -
Page 11: Product Outline
The supported resolution can be up to 4K@30 or 4K@60 (4:2:0), the input signals are transmitted without quality deterioration since they are not compressed or processed. The OPF supports RS-232C bidirectional communication and LAN transmission. ■ For multi-mode fiber ・ Transmitter : OPF-TH2000-MM ・ Receiver : OPF-RH2000-MM ■ For multi-mode fiber ・... -
Page 12: Features
OPF-TH2000/OPF-RH2000 User Guide 4 Features ■ Video ・ Up to 4K@60 (4:2:0) ・ HDCP 1.4 (Pass-through) ・ Transmission distances Multimode fiber (OM3) : 984 ft. (300 m) Singlemode fiber (OS1) : 6.21 mi. (10 km) ■ Communication ・ Bidirectional RS-232C ・... -
Page 13: Panels
OPF-TH2000/OPF-RH2000 User Guide 5 Panels 5.1 Transmitter ④ OPTICAL Tx for HDMI OPF-TH2000 ⑤ クラス 1 レーザ製品 CLASS 1 LASER PRODUCT ⑥ ⑦ ① ⑧ ⑨ ② ⑩ STATUS POWER SIGNAL ③ ⑪ [Fig. 5.1] Transmitter drawing [Table 5.1] Transmitter features... -
Page 14: Receiver
OPF-TH2000/OPF-RH2000 User Guide 5.2 Receiver ④ OPTICAL Rx for HDMI OPF-RH2000 ⑤ クラス 1 レーザ製品 CLASS 1 LASER PRODUCT ⑥ ⑦ ① ⑧ ⑨ ② ⑩ STATUS POWER SIGNAL ③ [Fig. 5.2] Receiver drawing [Table 5.2] Receiver features Feature Description... -
Page 15: Precautions
OPF-H2000 (1.2 in. (30 mm) or more) ・ When the OPF-H2000 needs to be mounted in an enclosed space or an EIA rack without using IDK’s rack mounting hardware (RM-SF, RM-SH), ensure that a sufficient ventilation/cooling system is provided to keep the ambient temperature at 104°F (40°C) or lower. -
Page 16: Cabling
OPF-TH2000/OPF-RH2000 User Guide 6.2 Cabling When connecting the OPF-H2000 to external devices, please observe the following precautions. ・ Read manuals for the external devices. ・ Before connecting cables to the OPF-H2000 or an external device, dissipate static electricity by touching grounded metal such as equipment racks before handling signal cables. -
Page 17: Fiber Optic Cable
OPF-TH2000/OPF-RH2000 User Guide 6.2.2 Fiber optic cable The OPF-H2000 can reach their full potential by selecting appropriate fiber optic cables for long-haul extension and installing the cable correctly. ・ Connect a fiber optic cable to the OPF-H2000 as follows: Optical output connector of the transmitter & optical input connector of the receiver Optical input connector of the transmitter &... -
Page 18: Lan Cable
OPF-TH2000/OPF-RH2000 User Guide 6.2.4 LAN cable ・ 1G bps Ethernet signals can be transmitted over a long distance. ・ Use cables meeting 10Base-T/100Base-TX/1000Base-T specification. 【See: 7.1.2 RJ-45 connector】 6.2.5 RS-232C cable ・ RS-232C signals (up to 115.2 Kbps) can be transmitted in duplex over a long distance. -
Page 19: Cascade Connection
・ Repeater that only supports HDCP pass through (such as some switchers, boosters and so on) is included ・ Another set of OPF-TH/RH2000 (IDK’s fiber optic cable extender supporting HDCP signals) 6.3 Setting Setting the DIP switch and input equalizer 6.3.1 Setting DIP switch... -
Page 20: Setting Input Equalizer (Only Transmitter)
OPF-TH2000/OPF-RH2000 User Guide [Table 6.3] For receiver Function Sets pre-emphasis of the TMDS signals. OFF : Equalizes up to 2.5 dB. ON : No equalization Sets the swing of the TMDS signals. OFF : 13% amplification ON : No amplification Sets the response time of Hot Plug Detect transmission (pin19 HDMI connector). -
Page 21: Application Example
Peripheral device control (such as projectors) and Ethernet communication will be available by using a control device (such as PCs). Note: The OPF-TH2000 must be paired with OPF-RH2000. The OPF-H2000 cannot be connected to an I/O board of the FDX series or other models of the OPF series. Up to 16 ft. (5 m) -
Page 22: Specification
OPF-TH2000/OPF-RH2000 User Guide 7 Specification 7.1 Pin assignments 7.1.1 HDMI Type A connector Pin # Signal name Pin # Signal name TMDS data2+ TMDS clock+ TMDS data2 shield TMDS clock shield TMDS data2- TMDS clock- TMDS data1+ TMDS data1 shield spare (N.C.*) -
Page 23: Connector
OPF-TH2000/OPF-RH2000 User Guide 7.1.2 RJ-45 connector 8-pin RJ-45 modular connector Signal name Pin# MDI-X 1000BASE-T 100BASE-TX/10BASE-T 1000BASE-T 100BASE-TX/10BASE-T TRX+ (Transmitted & TX+ (Transmitted data +) TRX+ (Transmitted & RX+ (Received data +) Received data +) Received data +) TRX- (Transmitted &... - Page 24 N.C. (Not Connected)* N.C. *Not used [Fig. 7.4] RS-232C pin assignment (connecting to PC) ■ Connecting OPF-H2000 to IDK’s products Use a cross cable to connect the OPF-H2000 to an IDK’s product. OPF-H2000 IDK’s products Pin # Signal Signal N.C.
-
Page 25: Product Specification
OPF-TH2000/OPF-RH2000 User Guide 7.2 Product specification Item OPF-TH2000 (Transmitter) OPF-RH2000 (Receiver) 1 input 1 input HDMI (*1)/DVI 1.0 Digital optical signal for extension TMDS single link RS-232C, LAN Input HDCP 1.4 (Pass-through) CEC (Pass-through) Connector: Female HDMI Type A (19-pin) (*2) -
Page 26: Troubleshooting
OPF-TH2000/OPF-RH2000 User Guide 8 Troubleshooting In case the OPF-H2000 does not work correctly, please check the following items first. Also refer to manuals for connected devices as well, since they may possibly be the cause of the problem. ・ Are the OPF-H2000 and all devices plugged in and powered on normally? ・... - Page 27 OPF-TH2000/OPF-RH2000 User Guide User Guide of OPF-TH2000/OPF-RH2000 Ver.1.5.0 Issued on: 17 March 2020 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http: //www.idkav.com IDK America Inc. 72 Grays Bridge Road Suite 1-C, Brookfield, CT 06804 TEL: +1-203-204-2445 Email: sales@idkav.com URL:...
