3.

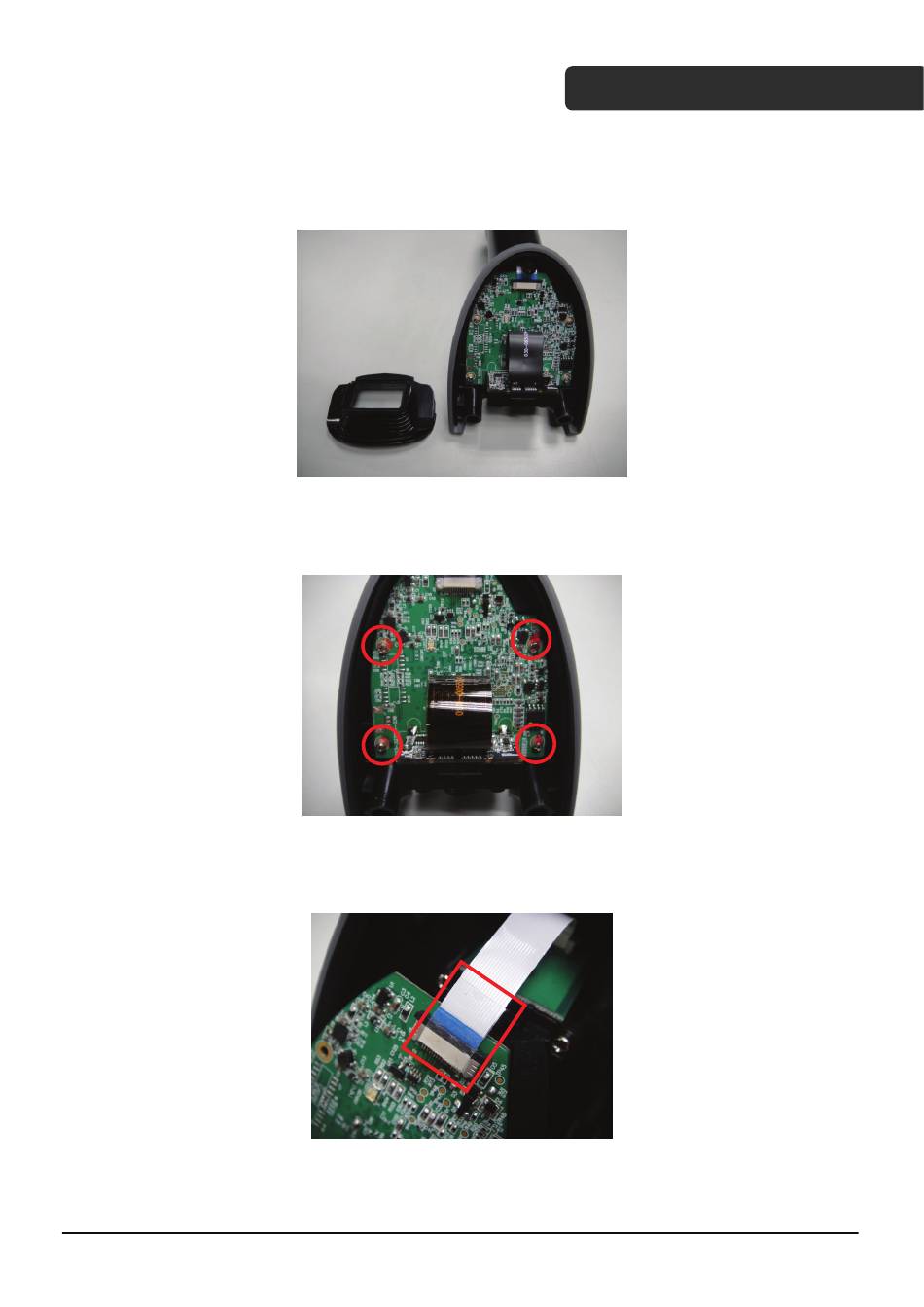

Remove the dust cover from handle base.
4.
Remove the screws (521-002000-6R0*4) and the washers.
5.
Remove Mylar tape then remove the 16Pin FFC cable.
Z-3272 Service Guide
