Zebex Z-3130BT User Manual

Table of Contents

1.Introduction
1.1Directions ..........................................................2
1.2 Confirmation of packing
1.3 Warranty ..........................................................2
1.4 Scanner outline ..........................................................3
1.5 Indicator LED ..........................................................3
1.6 How to change Batteries
2.How to operate
2.1 How to use buttons .....................................................................5
2.1 How to use buttons .....................................................................5
2.1 How to use buttons .....................................................................5
2.1.1 Power button ....................................................................5
2.1.2 Trigger ....................................................................5
2.2 How to connect ....................................................................5
2.2.1 Connection of first time (Master mode)
2.2.2 Connection of second time
2.3 How to scan ....................................................................6
3.Communication protocol
3.1 Serial Communication protocol ...................................................7
3.2 Output data format ....................................................................7
4.Parameter Setting
4.1 Setting method ....................................................................8
4.2 Initialization ....................................................................8
4.3 System Function Setting
4.4 The Symbologies Setting
4.4.1 JAN/EAN/UPC Parameter Setting
4.4.2 CODABAR Parameter Setting
4.4.3 ITF(Interleaved2of5) Parameter Setting
4.4.4 Code39 Parameter Setting
4.4.5 Code93 Parameter Setting
4.4.6 Code128 Parameter Setting .........................................16
5.Configuration for Administrator
5.1 How to shift to Configuration Mode
5.2 Bluetooth Communication Setting
5.3 Parameter confirmation (BT communication)
Z-3130BT
..........................................2
..................................................4
................................5
...................................................5
..................................................9
.........................................12
.........................12
..............................13
..............................14
.............................................15
.........................................16
.........................17
.........................18
.........20
Z-3130BT
1.Introduction
Thank you for purchasing mobile bar code scanner Z-3130BT for this
time.
To use this product safely and in prime condition, please read "How to
operate", and understand the content well.
1.1 Directions
This product is composed of precise electronic devices, so never break
up the scanner. Please contact a distributor when this product breaks
down by any chance.
1.2 Confirmation of packing
The content of the packing of this product is as follows. Please contact
the distributor if any contents are damaged or missing.

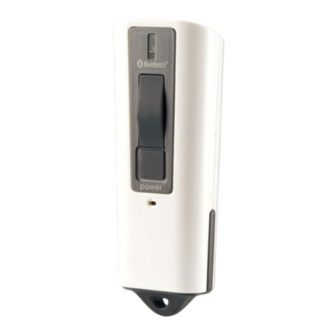

Mobile handy scanner Z-3130BT
User's Manual (this book)
AAA Alkaline Batteries
1.3 Warranty
Warranty is one year from the purchase date.
However, the repair of damage due to the customer's handling mistake
is charged even during the warranty term it.
Moreover, it cannot assume all the responsibilities about the loss and
the damage caused as a result of the operation of this product.
1 2
1pc
1pc
2pcs
