Moxa Technologies V2422 Quick Installation Manual

V2406/2422/2426
Quick Installation Guide
First Edition, September 2010
1. Overview
The V2406/2422/2426 embedded computer is based on the Intel Atom
N270 x86 processor, and features four RS-232/422/485 serial ports, dual
10/100 or 10/100/1000 Mbps LAN ports, three or six USB 2.0 hosts, and
a CompactFlash socket. The V2406/2422/2426 computer provides VGA
and DVI-I outputs, making it particularly well-suited for industrial
applications such as rolling stock , SCADA and automation systems.
2. Package Checklist
Before installing,verify that the package contains the following items:
V2406/2422/2426 embedded computer.
Terminal block to power jack converter.
PS2 to KB/MS Y-type cable
Wall Mounting Kit.
Quick Installation Guide.
Document & Software DVD.
Product Warranty Statement (printed)
NOTE: Please notify your sales representative if any of the above
items are missing or damaged.

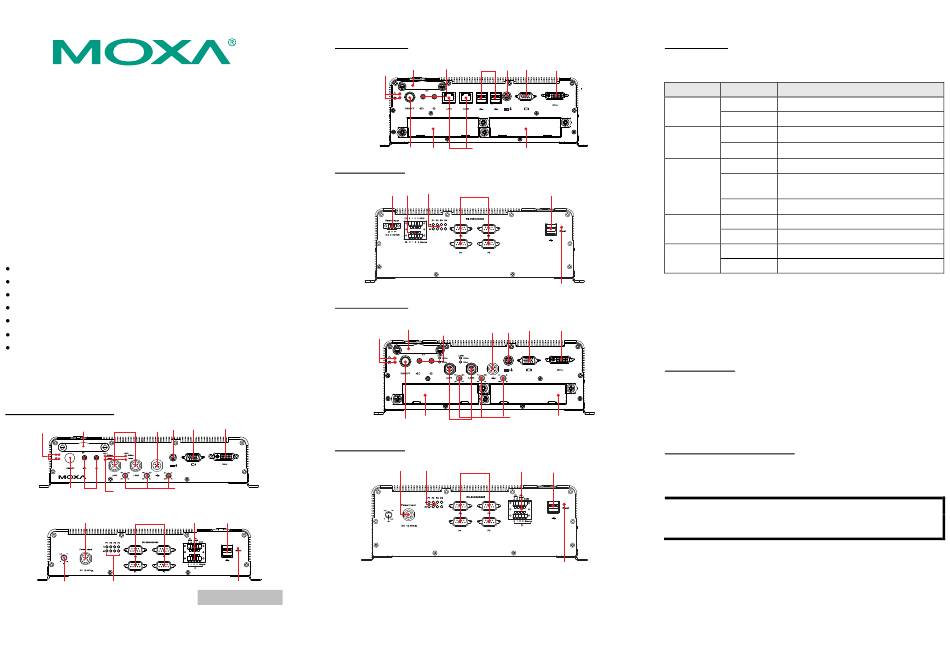

3. V2406/2422/2426 Panel Layout
V2406 Front & Rear Views
LEDs 10/100 MBps USB Host x 1
(Power, Storage) CF Socket LAN Port x 2 (M12) (M12) PS/2 VGA Output DVI-I Output
Serial/USB Port
Power Switch Audio LAN LEDs
Pin Assignment
Output/Input
(10/100 Mbps)
Power Input Serial Port x 4
(DC 12-48 V) (RS-232/422/485, DB9)
Power Input Serial LEDs
Pin Assignment (Tx, Rx)
— 1 —
V2422 Front View
System LEDs
(Power, Storage)
V2422 Rear View
Power Input
V2426 Front View
System LEDs
(Power, Storage)
V2426 Rear View
DI x 6 USB 2.0 Host x 2
DO x 2 (Type A)
Reset Button
P/N: 1802024000010
CompactFlash Audio Input USB 2.0 Host x 4 VGA DVI-I
Socket Output (type A) Output Output
PS/2
10/100/1000 Mbps
Power Switch Expansion Slot
LAN Port x 2 (RJ45)
Expansion Slot
DI x 4 Serial LED Serial Port x 4 USB 2.0
DO x 4
(Tx/Rx x 4) (RS-232/422/485, DB9 male) Host x 2 (type A)
Reset Button
CompactFlash VGA
USB 2.0
Output
Socket PS/2
Audio Input/Output Host (M12)
LAN/USB Port
Power Switch
Expansion Slot
10/100 Mbps
Pin Assignment
LAN Port x 2 (M12)
Serial Port x 4
Serial LED DI x 6 USB 2.0
(RS-232/422/485,
Power Input
(Tx/Rx x 4) DO x 2 Host x 2 (type A)
DB9 male)
Reset Button
— 2 —
LED Indicators
The following table describes the LED indicators located on the front and
rear panels of the V2406/2422/2426.
LED Name LED Color
Green
Power
Off
Yellow
Storage
Off
Green
LAN Yellow
(1, 2)
Off
Green
Tx, Tx
(P1-P4)
Off
Yellow
Rx, Rx
(P1-P4)
Off
4. Installing the V2406/2422/2426
The V2406/2422/2426 can be DIN-rail mounted, wall mounted, and
VESA mounted. Some mounting kits may need to be purchased
DVI-I
separately. Refer to the Hardware User's Manual for detailed installation
Output
instructions.
5. Connector Description
Power Connector
Connect the 12 to 48 VDC (9 to 36 VDC for V2422) LPS or Class 2
power line to the V2406/2422/2426's terminal block. If the power is
supplied properly, the Power LED will light up. The OS is ready when
the Ready LED glows a solid green.
Expansion Slot
Grounding the V2406/2422/2426
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting the power.
ATTENTION
This product is intended to be mounted to a well-grounded mounting
surface, such as a metal panel.
LED Function
Power is on and functioning normally
Power is off or power error exists
CF/HDD card is detected
CF/HDD card is not detected
10 (100 for V2422)Mbps Ethernet mode
100 (1000 for V2422) Mbps Ethernet
mode
No activity or 10 Mbps Ethernet mode
Serial ports P1-P4 transmitting data
Serial ports P1-P4 not transmitting data
Serial ports P1-P4 receiving data
Serial ports P1-P4 not receiving data
— 3 —
