Encoder Setup - Data-Tronix DT-IPTV-QAM-ASI-8HCW User Manual & Installation Manual

Note: To change the Password for the GUI go to the Administration Tab.

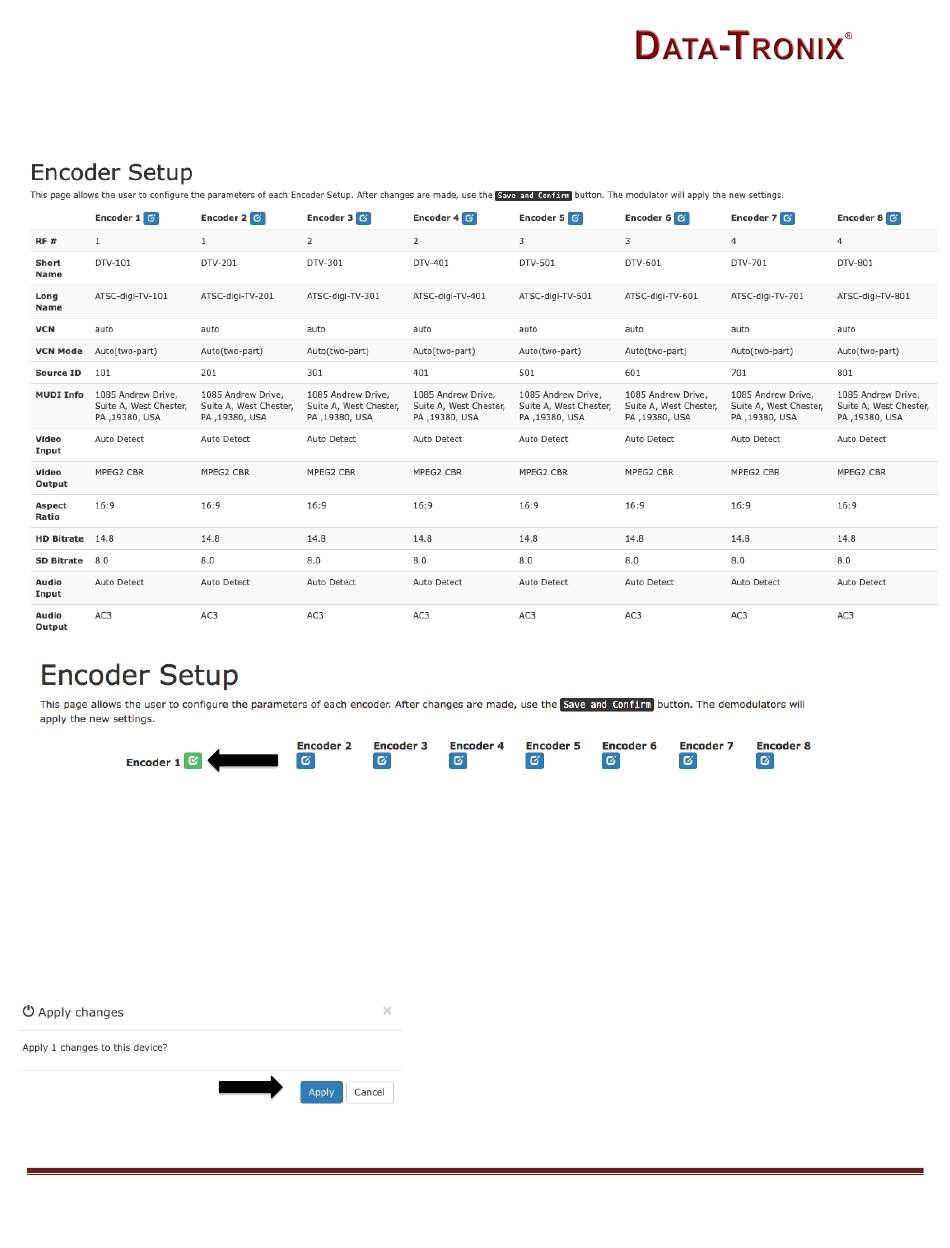

Encoder Setup page allows the integrator to select and set the parameters needed for each stream.
1. Select the "Edit" Icon.
2. Select and set the specific parameters settings as required.
(you can select and set all the parameters for all the encoders at one time)
3. After setting all the required parameters- Select the edit icon again.
- Note: All changed parameters will be shown in red.
4. Select "Active/Inactive" to activate for remaining parameters as required.
5. Select "Save and Confirm" to save all changed parameters.
6. Select "Apply" in the pop-up window.
