Overview of DT-IPTV-QAM-ASI-8HCW

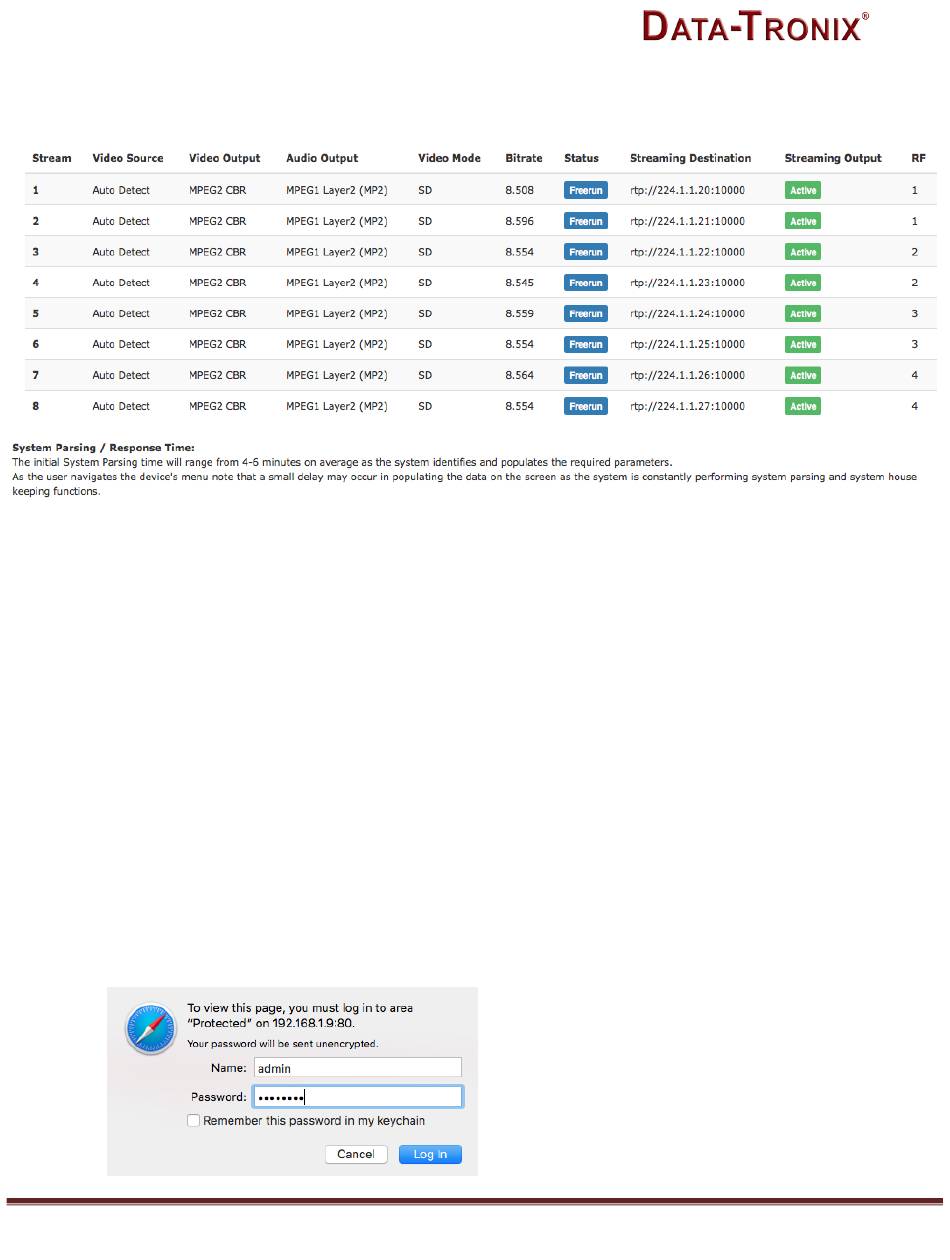

FIG 2: Above shows inputs 1-8 system status including: Video Source parameter, Video Output setting, Audio Output,
Bitrate, and more.
The Overview page provides a quick snapshot of the DT-IPTV-QAM-ASI-8HCW when fully functioning.
System Parsing / Response Time:
The initial System Parsing time will vary as the system identifies and populates the required parameters.
As the user navigates the device's menu note that a small delay may occur in populating the data on the screen as the
system is constantly performing system parsing and system house keeping functions.
Step 2: Enter User Name/Password
Select Encoder Setup
Once the Encoder Setup Tab is selected you will be prompted to enter the user name and password for device.
GUI Login Password:
Default User Name: admin
Default Password: Admin123
NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0
8
