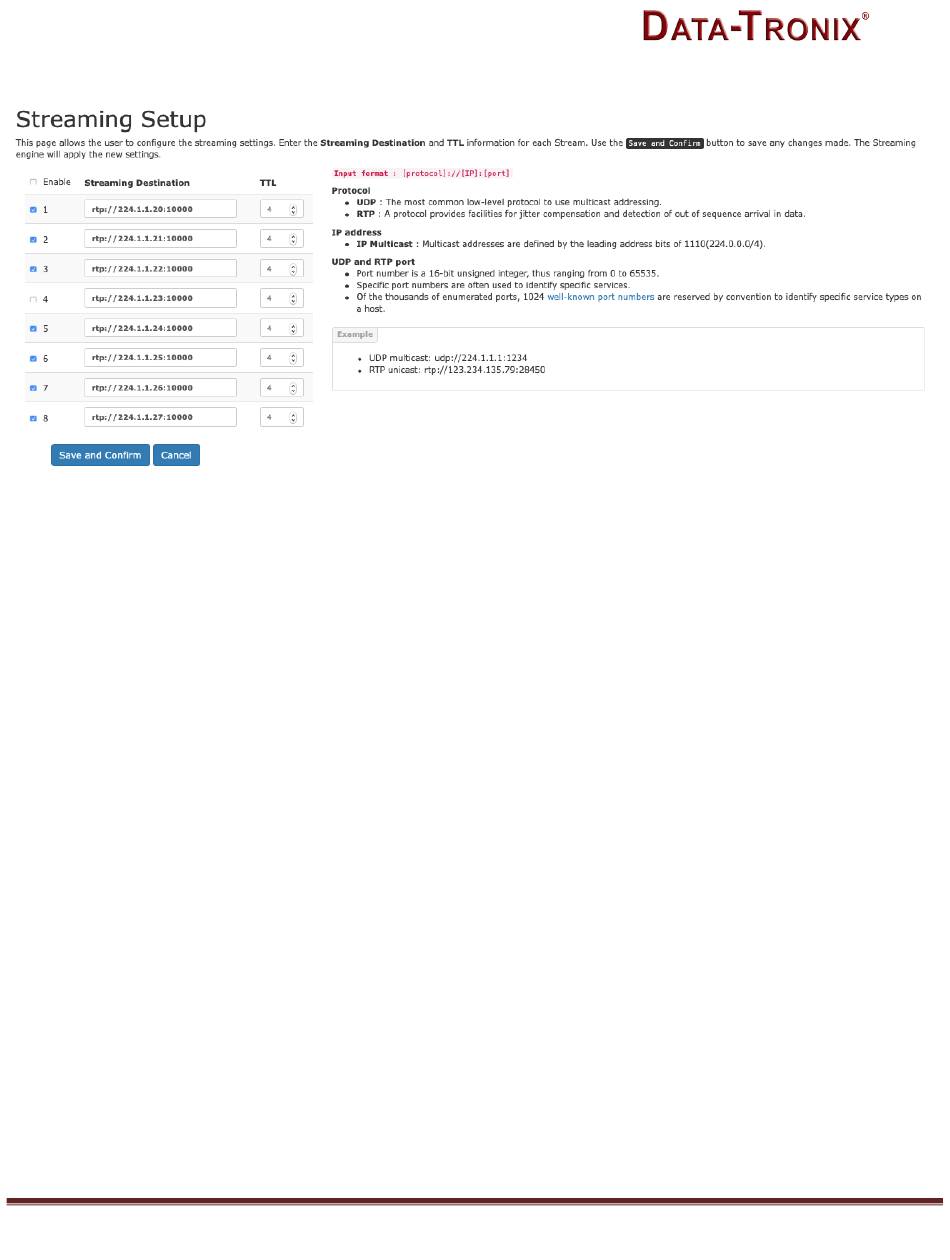

IP Streaming Setup
1. Enable the Stream by selecting the check box 1-8.
(All streams can be enabled at the same time by using the "master" checkbox)
2. Enter the stream Destination IP [example: udp://224.1.1.4:1234].
3. Set the TTL value.
4. Select 'Save and Confirm' once all the streams are setup.
Disabling IP Streams:
The DT-IPTV-QAM-ASI-8HCW offers the user a SPTS output stream. Each Stream can be disabled as required.
To disable an IP Stream uncheck the checkbox in front of the appropriate IP Stream_ID (1-8).
NACE: 610-429-1511 | sales@datatronix.biz | www.datatronix.biz | DT-IPTV-QAM-ASI-8HCW Manual v1.0
11
