RF Setup

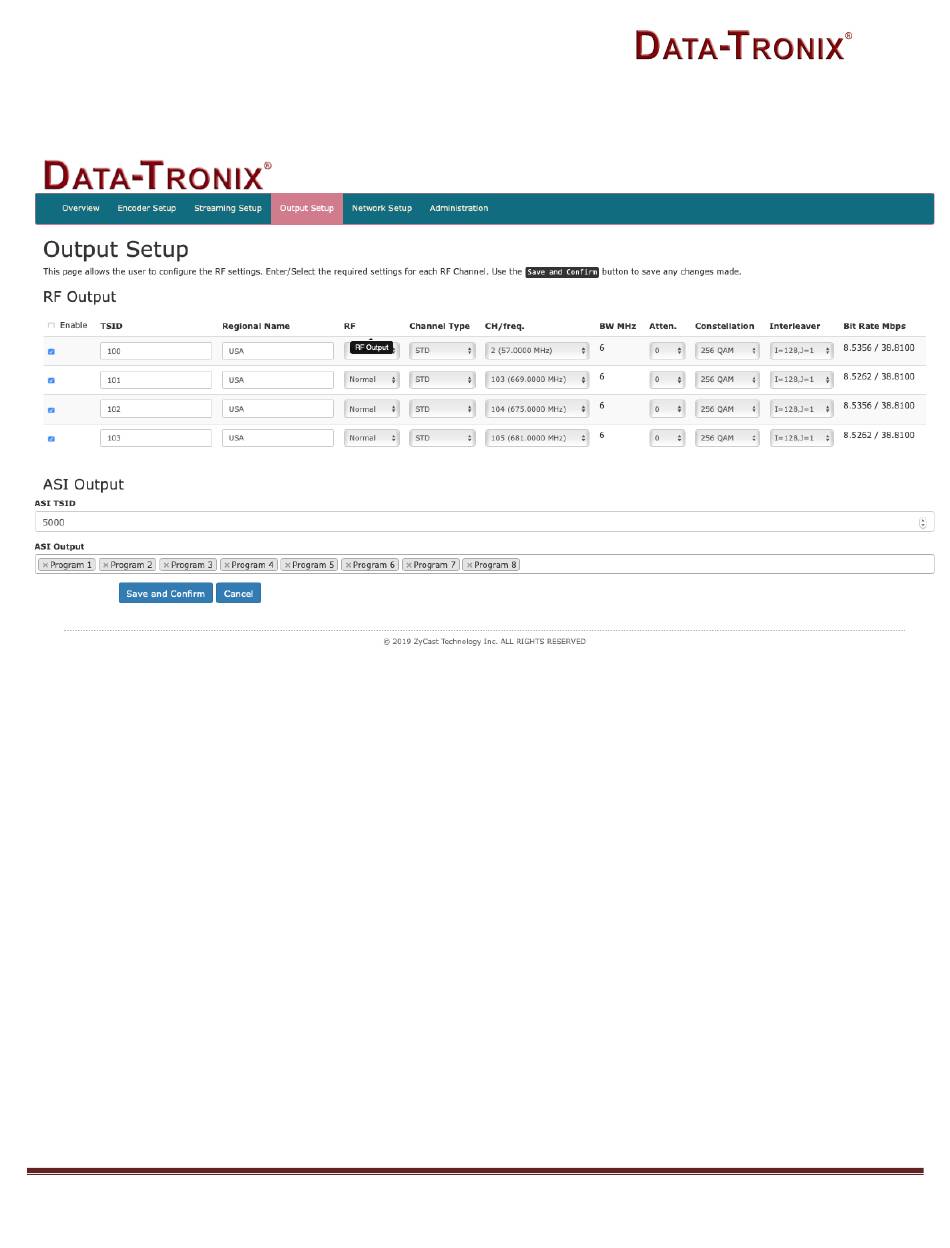

Use the RF Setup Page to setup each RF Output.
The DT-IPTV-QAM-ASI-8HCW Manual V1.0 offers the integrator the ability to set the output channel independently of the
other output channels of the DT-IPTV-QAM-ASI-8HCW Manual V1.0 Encoder. This professional parameter allows the
integrator greater flexibility for placing video streams within the system. Each RF/QAM (2 streams per RF) can be
allocated independently.
1. Select RF Output Setup from the menu.
2. Enable/Disable RF1-RF4 by checking or unchecking Checkbox (as required).
3. Modify the RF TS-ID (as required).
4. Select and Set RF Type.
5. Select and Set Channel Type.
6. Select and Set Ch/Freq required.
7. Select and Set Attenuation (if required).
8. Select and Set required Constellation.
9. Modify Interleaver (if required).
10. Modify ASI TS_ID (if required)
11. Select / Remove any ASI Program/Stream (as required).
12. Save and Confirm all changes made.
Note: The DT-IPTV-QAM-ASI-8HCW allows the integrator the ability to set the output channels independently of the other
3 output channels.
