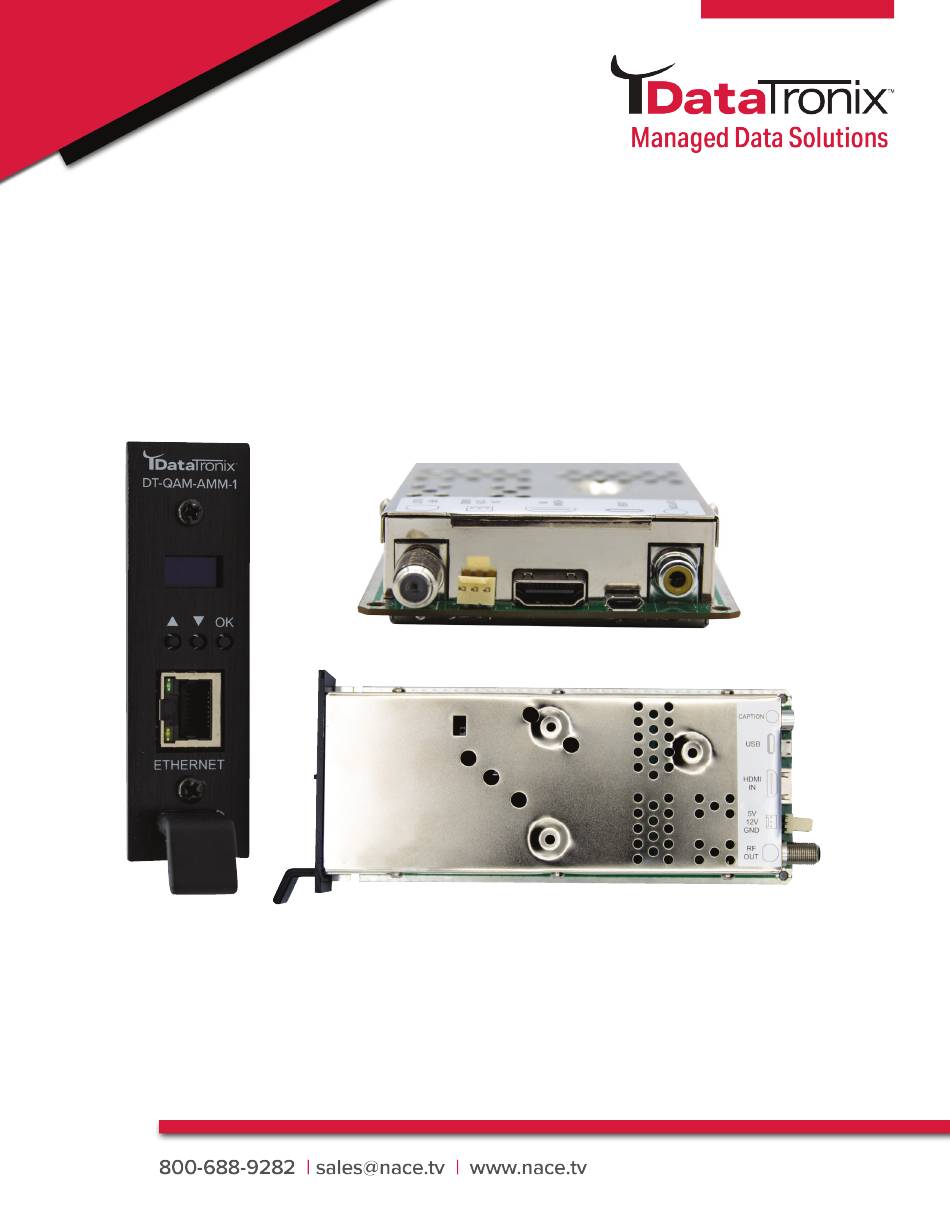

- Page 1 Manual DT-QAM-AMM-1 User Manual...
-
Page 2: Table Of Contents
DT-QAM-AMM-1 Manual Table of Contents GENERAL ........................3 Description ......................3 1.2 Specifications ..................... 3 INSTALLATION ....................... 4 Power Supply......................4 2.1.1 Operation via external power supply ............4 Connection......................4 2.2.1 Connection diagram examples ..............4 Navigation and edition of values................. 5 OPERATING INSTRUCTIONS .................. -
Page 3: General
DT-QAM-AMM-1 Manual 1 General 1.1 Description The DataTronix DT-QAM-AMM-1, High Definition (HD) Modulator, is the ultimate solution for adding local content seamlessly into a coaxial cable TV network. This innovative device boasts the ability to generate an MPEG-2 encoded signal in either QAM or ATSC format from an HDMI input. With its sleek design, it features one HDMI input, one RF output, and one LAN port for web management - making it the perfect addition to add locally generated content, such as digi- tal signage and video surveillance. -
Page 4: Installation
DT-QAM-AMM-1 Manual 2 Installation Power Supply Once powered on, the DT-QAM-AMM-1 takes about 15 seconds to become operational. 2.1.1 Operation via external power supply Use only the rack mount 5V/12V Power-Supply with the DT-QAM-AMM-1. Connection 2.2.1 Connection diagram examples CONNECTION DIAGRAM FOR SINGLE MODULE Default Static IP address (192.168.1.99). -
Page 5: Navigation And Edition Of Values
DT-QAM-AMM-1 Manual Navigation and edition of values. The DT-QAM-AMM-1 is configured through its 3 keys and web control. In general, it is not nec- essary to configure the instrument to generate a QAM/ATSC signal compatible with any digital cable television receiver. 3 Operating Instructions 3.1 Description of controls and components Display (OLED) Menu navigation keys LAN (Web Management) RF Output ... -
Page 6: Starting
DT-QAM-AMM-1 Manual 3.2 Starting 1. Once powered on, the DT-QAM-AMM-1 takes about 15 seconds to become operational. You will then see the message “Initial Wait” appear on the display. After 30 seconds the message “CH 2 & RF 00 ” will show on the display. - Page 7 If the instrument loses power, the user has to correct it manually. 19. FW Version: Shows the firmware version installed in the DT-QAM-AMM-1. This option is not editable. 20. Reboot Device: Select “Reboot “ to reboot the DT-QAM-AMM-1. Select “Reboot to DEF” to return the DT-QAM-AMM-1 to default values. 21. Device Related: 19.1...
-
Page 8: Menu Tree
DT-QAM-AMM-1 Manual 3.4 Menu Tree Modulator QAM, ATSC Constellation 256 QAM 64 QAM, 256 QAM RF Attenuation 00 dB 00 - 30 dB 1 Modulator Frequency CH2 57 MHz CH2 57- CH135 861 MHz RF Level Adjust 00 dB 00 - 30 dB Frequency CH2 57 MHz CH2 57- CH69 803MHz... -
Page 9: Accessing The Digital Modulator Admin Settings
3.5.2 Frequency Settings: 1. Once powered on, the DT-QAM-AMM-1 takes about 15 seconds to become operational. You will then see the message “Initial Wait” appear on the display. After 30 seconds the message “CH 2 & RF 00 ” will show on the display. -
Page 10: Video & Audio Settings
DT-QAM-AMM-1 Manual 3.5.3 Video & Audio Settings: 3.5.4 Stream Settings:... -
Page 11: System Information
DT-QAM-AMM-1 Manual 3.5.5 System Information: 4 Warranty DATATRONIX 1-Year Limited Warranty DATATRONIX. (the “Company”) warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. - Page 12 DT-QAM-AMM-1 Manual whether war is declared), civil war, rebellion, revolution, insurrection, military or usurped power or confiscation, terrorist activities, nationalization, government sanction, blockage, embargo, labor dispute, strike, lockout or interruption or failure of electricity, air conditioning, or humidity control, Internet, network, or telephone service. The warranties given herein, together with any implied warranties covering the hardware, includ- ing any warranties of merchantability or fitness for a particular purpose, are limited in duration to one year from the date of shipment to the Original Purchaser. Jurisdictions vary with regard to the enforceability of warranty limitations, and you should check the laws of your local jurisdiction to find out whether the above limitation applies to you.
