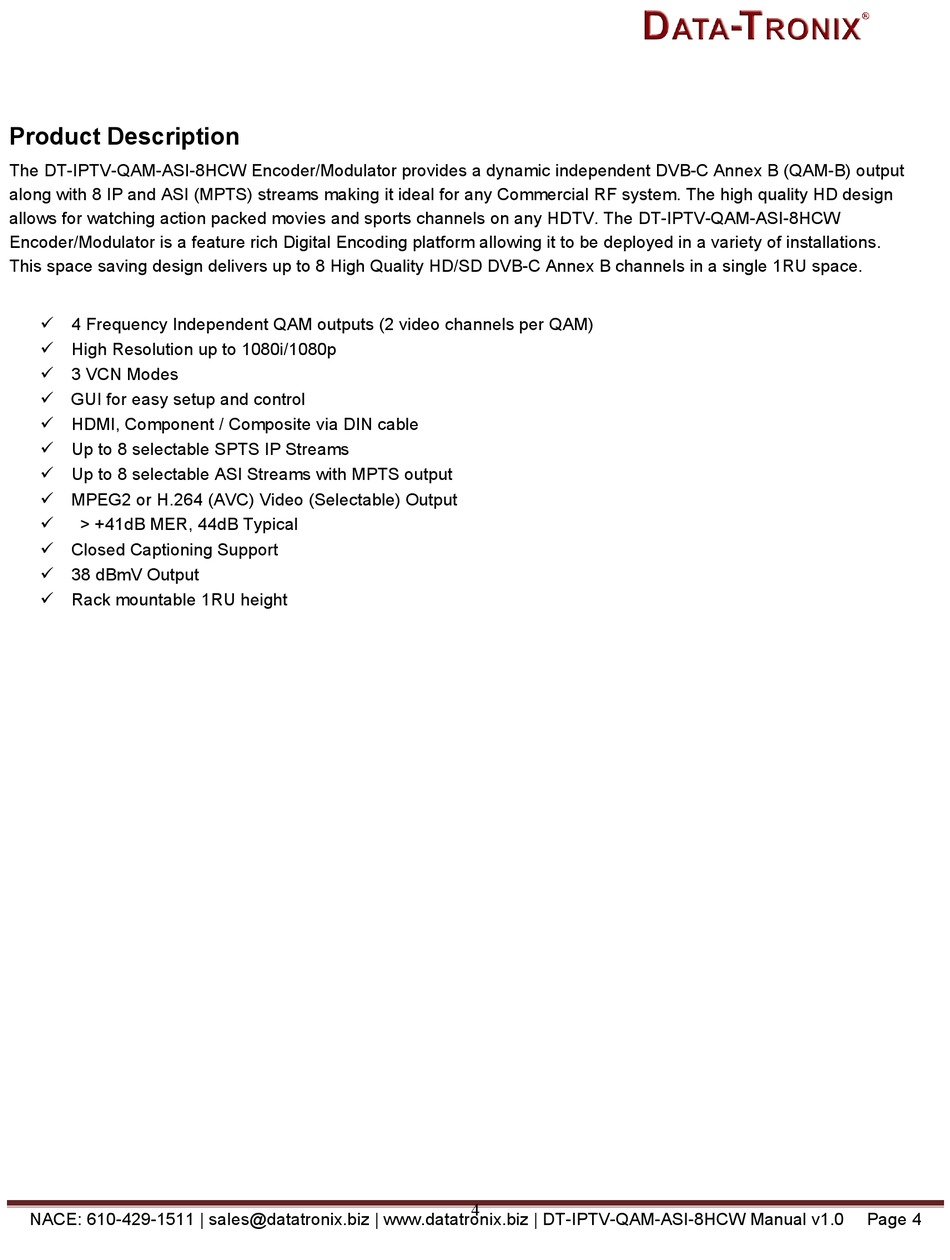

Product Description

The DT-IPTV-QAM-ASI-8HCW Encoder/Modulator provides a dynamic independent DVB-C Annex B (QAM-B) output
along with 8 IP and ASI (MPTS) streams making it ideal for any Commercial RF system. The high quality HD design
allows for watching action packed movies and sports channels on any HDTV. The DT-IPTV-QAM-ASI-8HCW
Encoder/Modulator is a feature rich Digital Encoding platform allowing it to be deployed in a variety of installations.
This space saving design delivers up to 8 High Quality HD/SD DVB-C Annex B channels in a single 1RU space.
 4 Frequency Independent QAM outputs (2 video channels per QAM)
 High Resolution up to 1080i/1080p
 3 VCN Modes
 GUI for easy setup and control
 HDMI, Component / Composite via DIN cable
 Up to 8 selectable SPTS IP Streams
 Up to 8 selectable ASI Streams with MPTS output
 MPEG2 or H.264 (AVC) Video (Selectable) Output
> +41dB MER, 44dB Typical

 Closed Captioning Support
 38 dBmV Output
 Rack mountable 1RU height
