Instruction Manual
MANK02A REV D 12/02/2020

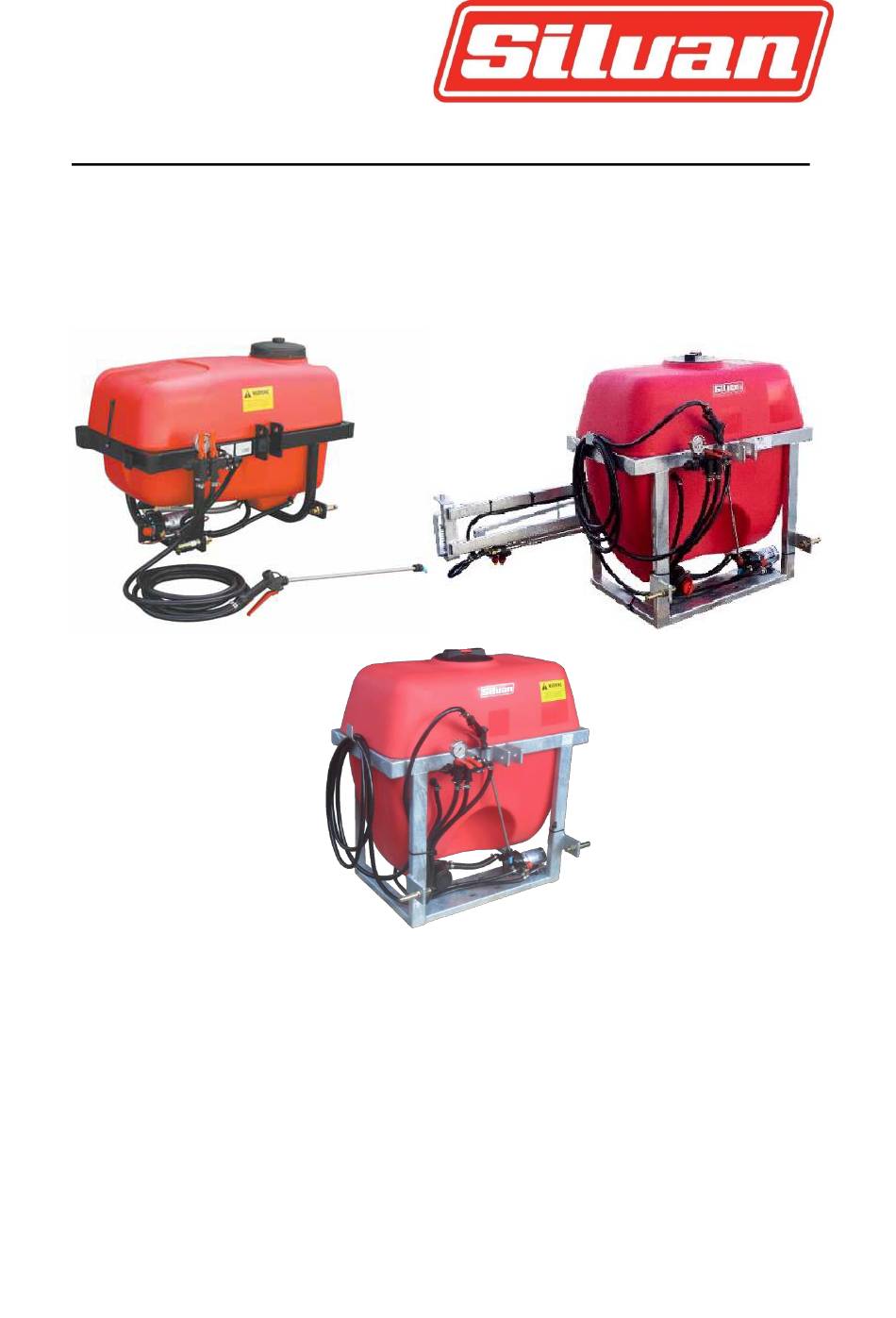

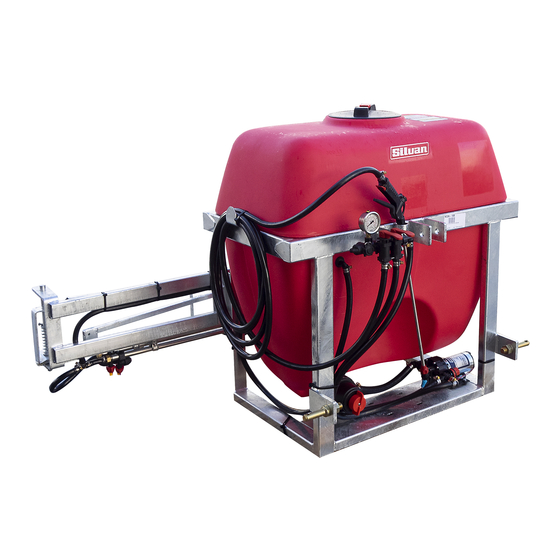

TRAYLINK SPRAYER 200L & 300L
K02A, K03A, K03A-19B
(with boom)
SILVAN AUSTRALIA PTY. LTD.
ABN 48 099 851 144
VICTORIA (HEAD OFFICE)
NEW ZEALAND
Telephone: +61 (03) 9215 2700
Hamilton, New Zealand
Fax: +61 (03) 9215 2701
Telephone: +64 (07) 8496 033
www.silvan.com.au
Fax: +64 (07) 8496070
www.silvannz.co.nz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Silvan Selecta K02A
Summary of Contents for Silvan Selecta K02A
- Page 1 Instruction Manual MANK02A REV D 12/02/2020 TRAYLINK SPRAYER 200L & 300L K02A, K03A, K03A-19B (with boom) SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144 VICTORIA (HEAD OFFICE) NEW ZEALAND Telephone: +61 (03) 9215 2700 Hamilton, New Zealand Fax: +61 (03) 9215 2701 Telephone: +64 (07) 8496 033 www.silvan.com.au...
- Page 2 No liability can be accepted for any inaccuracies or omissions in this publication, although due care has been taken to make it as complete and accurate as possible. The information, illustrations and technical data were considered to be correct at the time of preparation. In accordance with our policy of continuous development Silvan Australia Pty.
-
Page 3: Warranty
Warranty Silvan Warranty This warranty is the only warranty applicable to Silvan new products ('Products') and, to the maximum extent permitted by law, is expressly in lieu of any other conditions or warranties expressed or implied in relation to the Products. Subject only to legislative obligations to the contrary, Silvan shall not be liable for incidental or consequential damage resulting from ownership or use of a Product. -
Page 4: Safety Instructions
Safety Instructions Before attempting to operate or install the sprayer carefully read and take note of the following safety warnings. Failure to comply with these warnings may result in serious injury or death. Warning! This sprayer is designed and manufactured solely for the purpose of applying agricultural chemicals to plants. -
Page 5: Specifications
Duty Rating: Continuous up to 40psi (at 21ºC FRAME: ambient) (K02A) Compact design of steel construction holds Max Current: 18 amps the 200L tank with a lower weight and centre of Max Pressure: 60psi (set by pressure switch) gravity to improve handling. - Page 6 Specifications (cont.) BOOM (FOLDED): Field 2067mm FIELD BOOM: Field booms of 6 metre width are of galvanized steel truss construction. The three-section fold allows the outer arms to break back if an obstacle is contacted. The rear uprights of the sprayer frame include a series of holes to enable the boom to be attached at a height suitable for the tractor size and spraying application.
-
Page 7: Installations
Installations FITTING INSTRUCTIONS: The TrayLink can be mounted to a small tractor via CAT I three-point linkage points; alternatively, the small tank and frame is suitable for mounting on to the deck or tray of a vehicle with appropriate tie down straps. -
Page 8: Operation
Operation It is always recommended that you first test all spray equipment thoroughly with clean water. The Traylink is supplied with both a Spray gun for spot spraying and a boom or boomless nozzle. SETUP AND TESTING FOR SPOT SPRAYING: For this set up ensure that the manual section valve to the boom-less nozzles is closed and the section valve to the spray gun is open. -
Page 9: Service And Maintenance
Operation (cont.) The Spray Gun has an additional safety feature; the lever catch can be used to lock the lever closed to prevent accidental spraying. The catch can also be used to lock the lever open for continuous spraying. This should only be done when safe to operate in this manner and where there is no likelihood of inadvertently spraying any person or property that may suffer damage. - Page 10 Calibration WHEN TO SPRAY: Results will be best when wind speed is low, temperature low and relative humidity high. An ideal time is at sun-up when these conditions are most likely to apply. APPLICATION RATE: The application rate can be determined using the following formula: •...
-
Page 11: Troubleshooting Guide
Troubleshoot Troubleshooting Guide Problem Solution • Ensure battery wires are connected to battery properly • Check the inline fuse and fuse holder in the power loom Pump does not operate • Ensure the lower loom clip connector is correctly attached to connector on the pump •...
