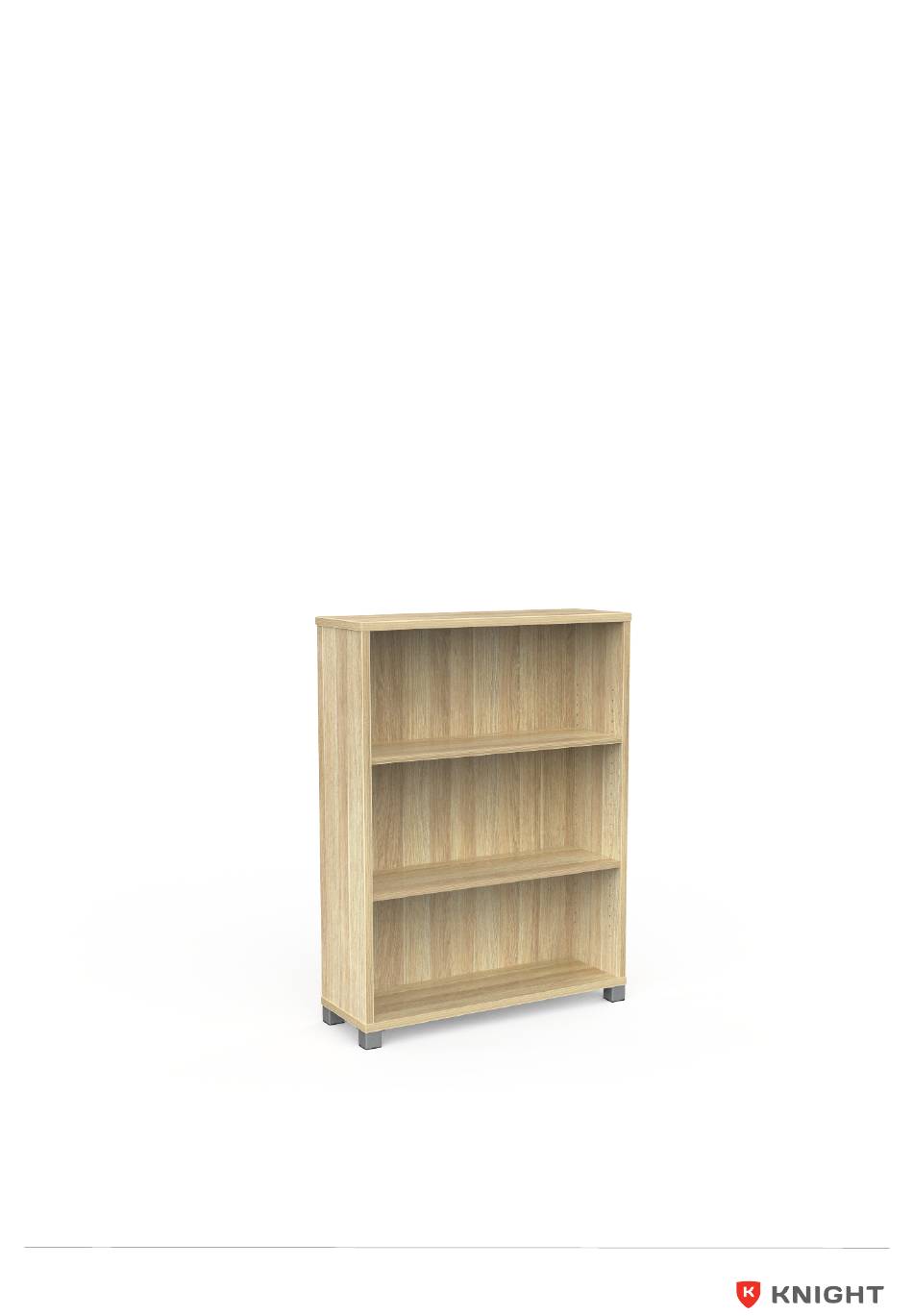

- Page 1 Cubit Bookcase 1200H Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Cubit Bookcase 1200H Page 1 Assembly Instructions • To prevent possible scratches or damage, assemble the bookcase on a soft surface such as a blanket, carpet or packaging. Recommended 2-person Step knightgroup.co.nz...
- Page 3 Cubit Bookcase 1200H Page 2 Assembly Instructions Parts Item Description Item Description Top Panel 5/8” Cam Cover Left Side Panel Threaded Dowel Pin Right Side Panel 4x25 Screw Back Panel Metal Feet Bottom Panel Moveable Shelf 10 x Thread Dowel Pin 4 x Metal Feet 18 x 5/8”...
- Page 4 Cubit Bookcase 1200H Page 3 Page 3 Assembly Instructions Assembly Instructions Step 1 Preparation for panels X, Z and D. Connect cam bolts and dowels on panel D to the holes on panel X, Z and tighten in a clockwise diredtion as illustrated below.
- Page 5 Cubit Bookcase 1200H Page 4 Page 4 Assembly Instructions Assembly Instructions Step 2 Preparation for panels X, Z, D, A and G. Connect cam bolts and dowels on panel X, Z and D to the holes on panel A and G and tighten in a clockwise direction.
- Page 6 Cubit Bookcase 1200H Page 5 Page 5 Assembly Instructions Assembly Instructions Step 3 Moveable shelf assembly. Insert adjustable shelf support pins P1 into panels X and Z. Place panels E on the top of the shelf support pins P1 as illustrated below. knightgroup.co.nz...
- Page 7 Cubit Bookcase 1200H Page 6 Page 6 Assembly Instructions Assembly Instructions Completed knightgroup.co.nz...
