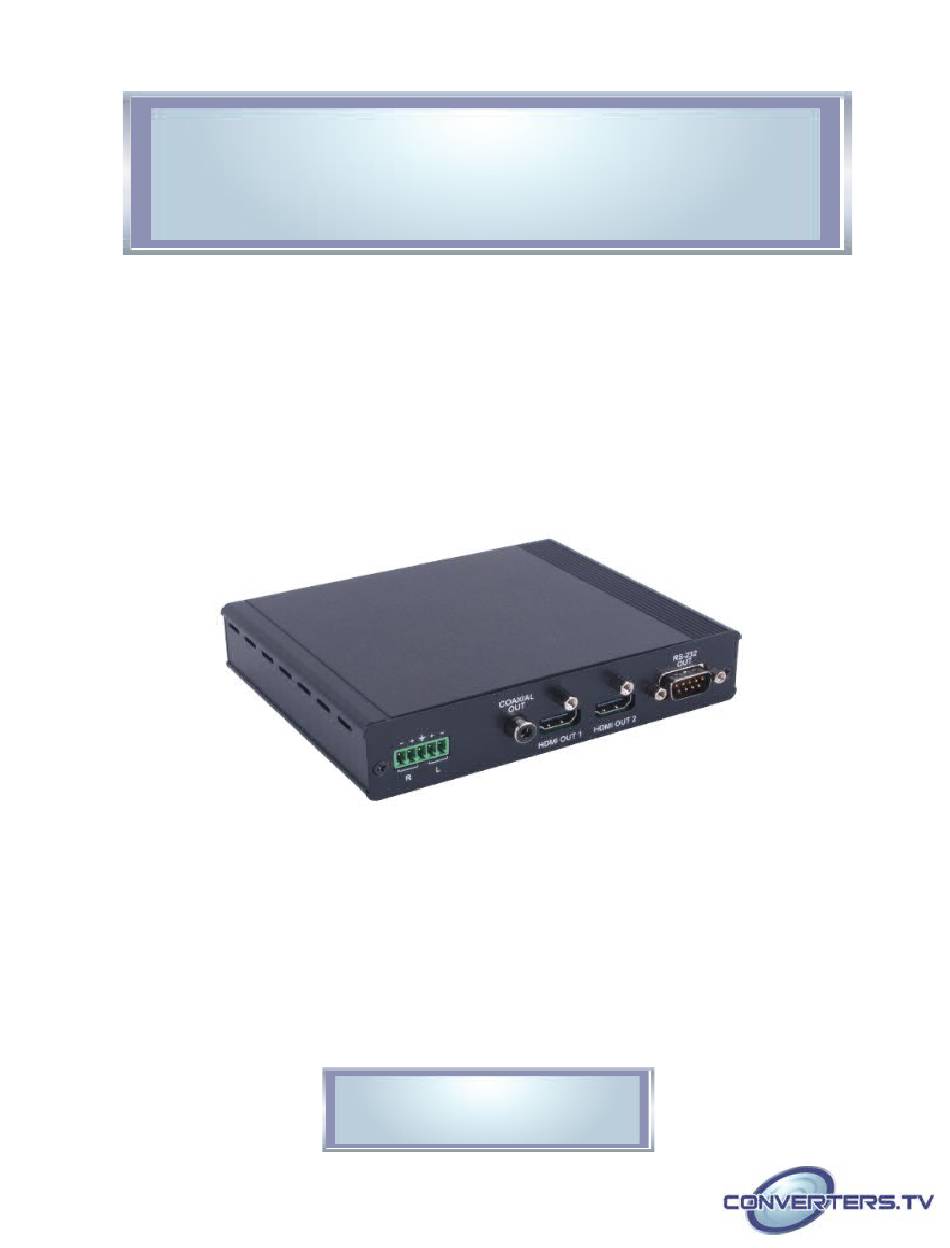

- Page 1 HDMI/Audio over CAT5e/6/7 Receiver/Splitter # 15375 Operation Manual...
- Page 2 Introduction This HDMI and Audio over Single CAT5e/6/7 Receiver/Splitter can receive uncompressed audio/video and data over a single run of CAT5e/6/7 cable, from a Transmitter, up to distances of 100m. It has the added benefit of simultaneous dual HDMI outputs with audio de-embedding to a balanced or digital coaxial audio output and 2 bi-directional LAN serving connections, allowing devices such as Smart TVs or games consoles to share a Internet connection.
- Page 3 Operation Controls and Functions Front Panel Power LED: This LED will illuminate when the device is connected to a power supply. DC 24V: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. Only one side of power is needed to activate both Transmitter and Receiver when both obtain the PoC function.
-
Page 4: Coaxial Out
Back Panel Balanced Analog R/L OUT: Connect to an amplifier or active speaker with 3.5mm terminal block jack for audio output. COAXIAL OUT: Connect to an amplifier or active speaker with coaxial cable for audio output. HDMI OUT 1/2: These slots are to connect with HDMI TV/Monitor for output image display. RS-232 OUT: This slot is to connect with D-Sub 9-pin cable from device equipment for receiving RS-232 commands... - Page 5 D-Sub 9 Pin Definition DEFINE TX/RX TxD/RxD RxD/TxD Specifications Ethernet Speed 100 Mbps Video Bandwidth 300MHz / 9Gbps Input Ports 1x CAT5e/6/7, 1 x IR Extender Output Ports 2 x HDMI, 1 x Coaxial, 1 x Balanced Analog (R/L), 1×IR Blaster, 1 x RS-232, 2×LAN CAT5e/6/7 Output Cable Distance Up to 100 Meters...
- Page 6 Connection Diagram...
